NEW Ex2 Entry-Level Printer

NEW Ex2 Entry-Level Printer
1 / 2 PagesView full catalog

NEW Ex2 Entry-Level Printer

Product catalog summary
Product Overview: The Datamax Ex2 is an entry-level thermal printer designed for affordability and high performance. It features a user-friendly design with one button, one LED, and auto media loading. The printer is equipped with a 32-bit multi-tasking processor and two megabytes of memory, supporting serial, parallel, and USB interfaces.
Design and Usability: The Ex2's center bias design eliminates the need for mechanical width adjustments for narrow media. Its compact footprint integrates communication interfaces and power connections underneath, making it suitable for space-constrained environments.
Applications: Ideal for low to medium volume printing in sectors such as shipping, healthcare, retail, admissions, product labeling, postal services, and small businesses.
Technical Specifications:
  • Print Speed: 3 inches per second (IPS)
  • Resolution: 203 DPI
  • Supply Roll Capacity: 5 inches (127 mm)
  • Printer Type: Direct Thermal
  • Media Width: 1" – 4.12" (25.4mm – 104.6mm)
  • Media Type: Roll-fed, fan-fold, die-cut, continuous labels, perforated or continuous tag/ticket stock
  • Media Sensing: Black mark, die-cut label gap, registration holes
  • Interfaces: USB, Centronics® Parallel port, RS232
  • Operating Temperature: 40°F to 95°F (4°C to 35°C)
  • Dimensions: 7” H x 8.6” W x 10.4” D (178mm H x 218mm W x 264mm D)
  • Weight: 4.2 lbs. (1.8kg)
Options and Features: The Ex2 offers options such as peel and present, 4 MB flash memory, external media supply stand, and ILPC fonts. It supports a wide range of barcodes and fonts, including downloadable True-Type and AGFA® Intellifont™.
Compliance and Standards: The printer meets UL, Canadian, and European safety standards, FCC Class A emissions standard, and CE Mark. Datamax is an ISO 9001 registered company.
Contact Information: For more information, contact Datamax at their corporate headquarters in Orlando, Florida, or through their international offices in Latin America, Europe, Asia-Pacific, and China.
See more

Catalog excerpts

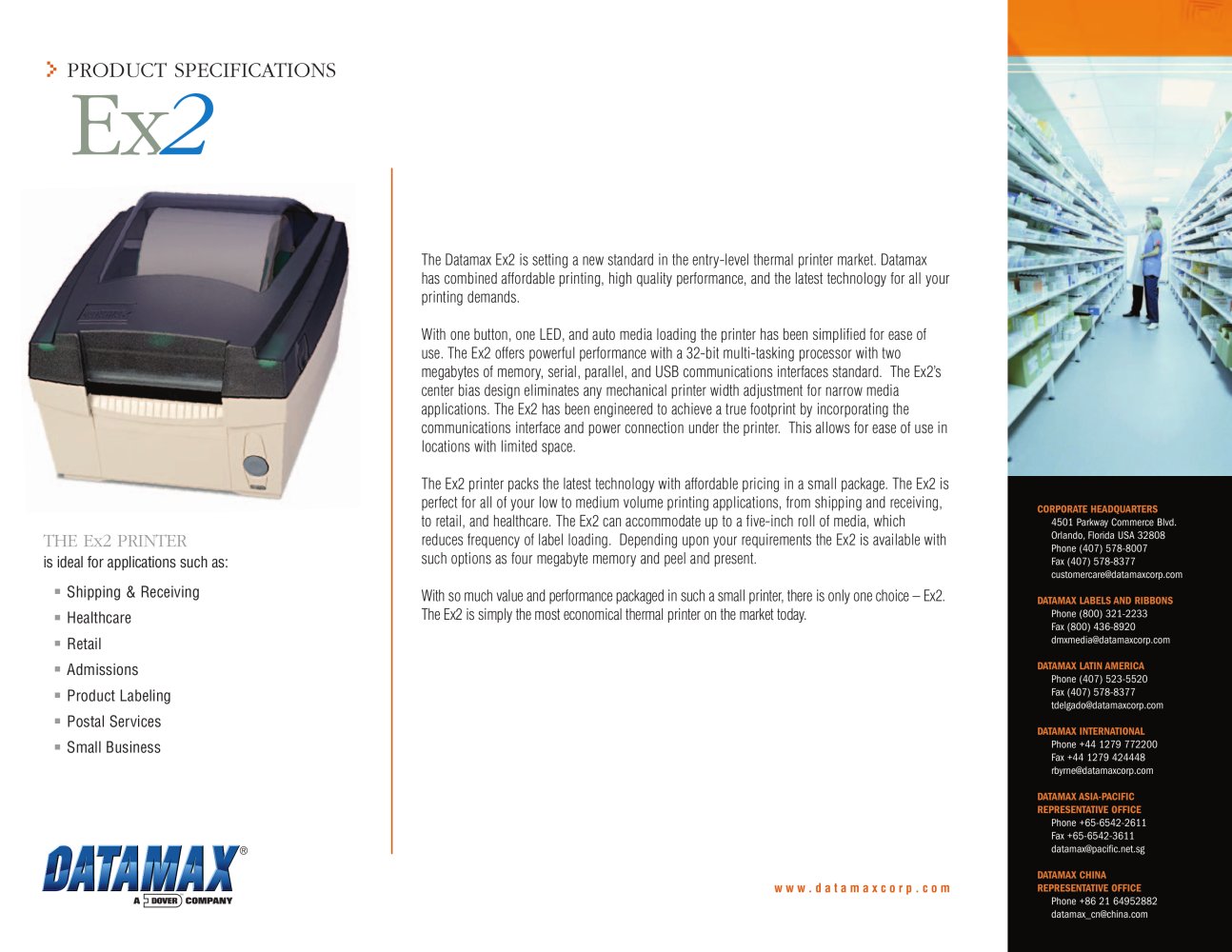

NEW Ex2 Entry-Level Printer-2

DATAMAX Ex2 OPTIONS: > ■ PEELANDPRESENT PRINT SPEED3 IPS > ■ 4 MB FLASH (MAINBOARD) RESOLUTION203 DPI > ■ EXTERNAL MEDIA SUPPLY STAND SUPPLY ROLL CAPACITY5 (127 mm) > Ԣ֠ ILPC FONTS PRINTER TYPEDirect Thermal BAR CODE MODULUS5 mil to 55 mil (203 dpi) "X" dimension in picket fence or ladder orientations MEDIA WIDTH1" 4.12" (25.4mm ֖ 104.6mm) MEDIA TYPERoll-fed up to 5 Dia. on 1Ԕ and 1.5 (25mm - 38mm) cores, fan-fold materials, die-cut or continuous labels; perforated or continuous tag/ticket stock PRINT LENGTH.125Ԕ (.318mm) minimum, maximum no less than 11 (279mm) - application dependent MEDIA...

 Open the catalog to page 2
