DATAMAX
M-Class Mid-Range Bar Code Printers

M-Class Mid-Range Bar Code Printers

Product catalog summary

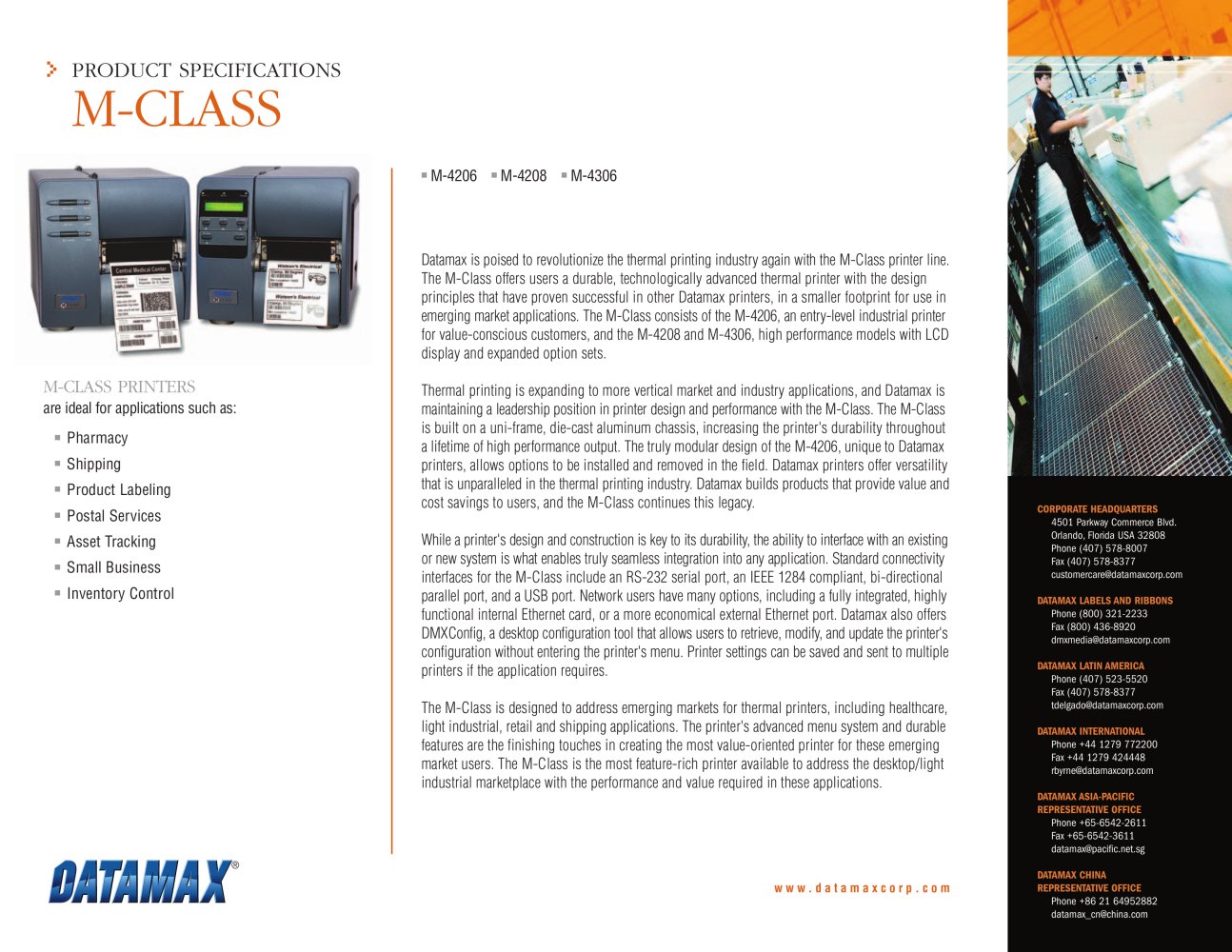

Overview: The M-Class printer line by Datamax is designed to revolutionize the thermal printing industry with its durable and technologically advanced features. It is suitable for emerging market applications due to its compact size and robust design.

Models: The M-Class includes three models: M-4206 (entry-level), M-4208, and M-4306 (high-performance with LCD display and expanded options).

Design and Durability: Built on a uni-frame, die-cast aluminum chassis, the M-Class ensures durability and high performance. The modular design of the M-4206 allows for field installation and removal of options.

Connectivity: Standard interfaces include RS-232 serial, IEEE 1284 parallel, and USB ports. Ethernet connectivity is available via an internal card or external port. The DMXConfig tool facilitates printer configuration management.

Applications: Ideal for healthcare, light industrial, retail, shipping, pharmacy, product labeling, postal services, asset tracking, small business, and inventory control.

Specifications:

Print Speed: M-4206 and M-4306 at 6 IPS, M-4208 at 8 IPS.
Resolution: M-4206 and M-4208 at 203 DPI, M-4306 at 300 DPI.
Print Width: 4.25" for M-4206 and M-4208, 4.16" for M-4306.
Memory: M-4206 with 4MB DRAM, 2MB Flash; M-4208 and M-4306 with 8MB DRAM, 2MB Flash.

Options: Thermal transfer, label present sensor, peel and present, internal rewind, media cutter, flash memory expansion, MCL enabled, internal Ethernet print server, DMX100 Ethernet print server (some options not available for M-4206).

Media and Printing: Supports various media types and thicknesses, with a print length of 0.25" to 99". Offers multiple barcode and font options, including downloadable fonts and graphics support.

Environmental and Power: Operates at temperatures between 40°F to 95°F. Auto-sensing power source with specified power cord.

Dimensions and Weight: Dimensions are 10.3” H x 9.8” W x 18.06” D. Weight is 21.0 lbs for M-4206 and 27.0 lbs for M-4208/M-4306.

Compliance: Built to UL, Canadian, and European safety standards, FCC Class A emissions standard, and CE Mark.

Catalog excerpts

M-4206M-4208M-4306 PRINT SPEED6 IPS8 IPS6 IPS > ■ THERMAL TRANSFER RESOLUTION203 DPI203 DPI300 DPIPRINT WIDTH4.25"4.25"4.16" > ■ LABEL PRESENT SENSOR (108mm)(108mm)(106 mm)MEDIA WIDTH.75 - 4.65".75Ԕ - 4.65".75 - 4.65" > Ԣ֠ PEEL AND PRESENT (19mm - 118 mm)(19mm - 118 mm)(19mm - 118 mm) > ■ INTERNAL REWIND MEMORY4MB DRAM; 2MB Flash8MB DRAM; 2MB Flash8MB DRAM; 2MB Flash DATAMAX M-CLASS OPTIONS: > ■ MEDIA CUTTER > ■ FLASH MEMORY EXPANSION SUPPLY ROLL CAPACITY8" (203 mm) O.D. on a 3.0" (76.2 mm) core; 7" (178mm) on a 1.5 (38mm) core. Fanfold stock accepted from rear and bottom of printer. > Ԣ֠ MCL...
