label rewinder/winder
2Pages

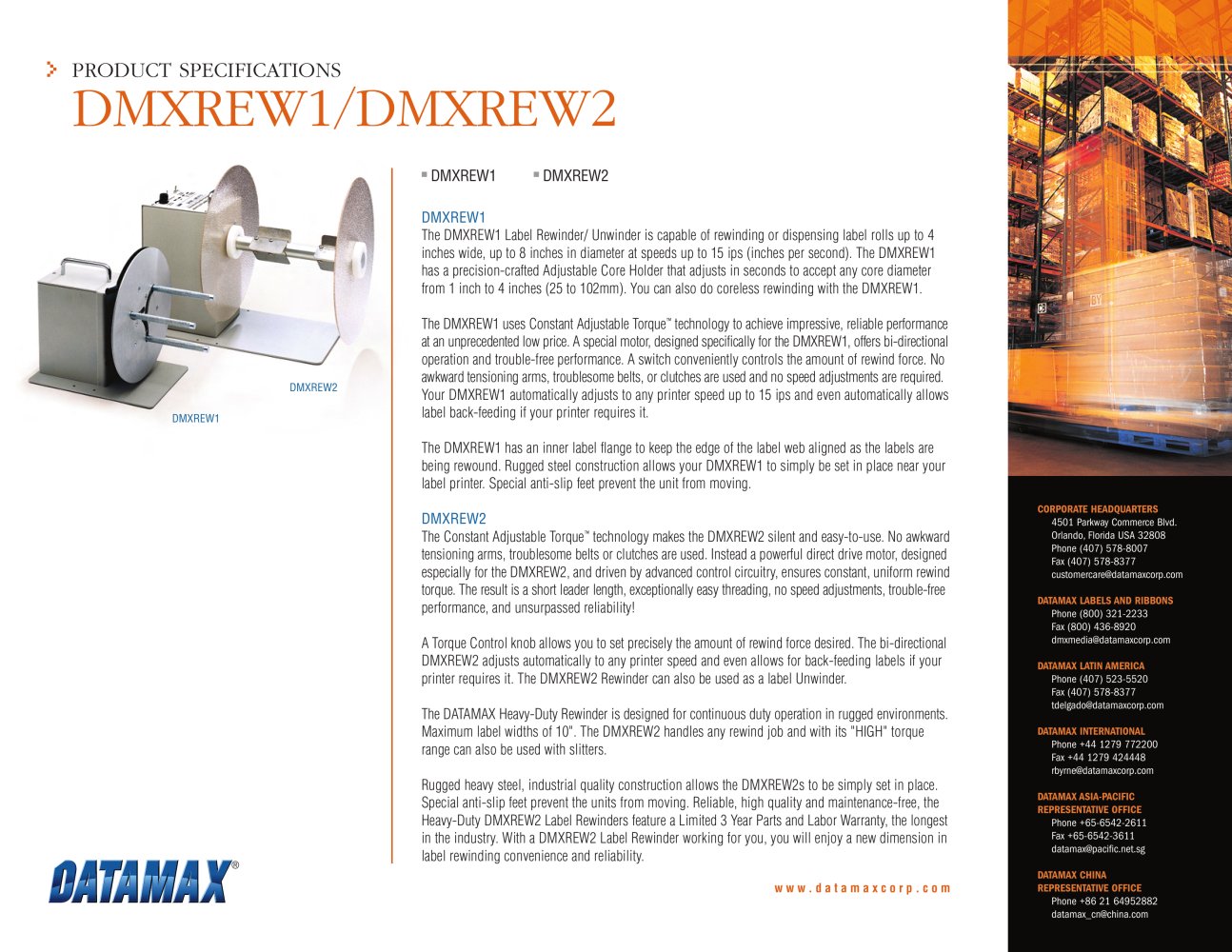

> PRODUCT SPECIFICATIONS DMXREW1/DMXREW2 DMXREW1 The DMXREW1 Label Rewinder/ Unwinder is capable of rewinding or dispensing label rolls up to 4 inches wide, up to 8 inches in diameter at speeds up to 15 ips (inches per second). The DMXREW1 has a precision-crafted Adjustable Core Holder that adjusts in seconds to accept any core diameter from 1 inch to 4 inches (25 to 102mm). You can also do coreless rewinding with the DMXREW1. The DMXREW1 uses Constant Adjustable Torque™ technology to achieve impressive, reliable performance at an unprecedented low price. A special motor, designed specifically for the DMXREW1, offers bi-directional operation and trouble-free performance. A switch conveniently controls the amount of rewind force. No awkward tensioning arms, troublesome belts, or clutches are used and no speed adjustments are required. Your DMXREW1 automatically adjusts to any printer speed up to 15 ips and even automatically allows label back-feeding if your printer requires it. The DMXREW1 has an inner label flange to keep the edge of the label web aligned as the labels are being rewound. Rugged steel construction allows your DMXREW1 to simply be set in place near your label printer. Special anti-slip feet prevent the unit from moving. DMXREW2 The Constant Adjustable Torque™ technology makes the DMXREW2 silent and easy-to-use. No awkward tensioning arms, troublesome belts or clutches are used. Instead a powerful direct drive motor, designed especially for the DMXREW2, and driven by advanced control circuitry, ensures constant, uniform rewind torque. The result is a short leader length, exceptionally easy threading, no speed adjustments, trouble-free performance, and unsurpassed reliability! A Torque Control knob allows you to set precisely the amount of rewind force desired. The bi-directional DMXREW2 adjusts automatically to any printer speed and even allows for back-feeding labels if your printer requires it. The DMXREW2 Rewinder can also be used as a label Unwinder. The DATAMAX Heavy-Duty Rewinder is designed for continuous duty operation in rugged environments. Maximum label widths of 10". The DMXREW2 handles any rewind job and with its "HIGH" torque range can also be used with slitters. Rugged heavy steel, industrial quality construction allows the DMXREW2s to be simply set in place. Special anti-slip feet prevent the units from moving. Reliable, high quality and maintenance-free, the Heavy-Duty DMXREW2 Label Rewinders feature a Limited 3 Year Parts and Labor Warranty, the longest in the industry. With a DMXREW2 Label Rewinder working for you, you will enjoy a new dimension in label rewinding convenience and reliability. DMXREW1 DMXREW2 DMXREW1 DMXREW2 w w w . d a t a m a x c o r p . c o m CORPORATE HEADQUARTERS 4501 Parkway Commerce Blvd. Orlando, Florida USA 32808 Phone (407) 578-8007 Fax (407) 578-8377 customercare@datamaxcorp.com DATAMAX LABELS AND RIBBONS Phone (800) 321-2233 Fax (800) 436-8920 dmxmedia@datamaxcorp.com DATAMAX LATIN AMERICA Phone (407) 523-5520 Fax (407) 578-8377 tdelgado@datamaxcorp.com DATAMAX INTERNATIONAL Phone +44 1279 772200 Fax +44 1279 424448 rbyrne@datamaxcorp.com DATAMAX ASIA-PACIFIC REPRESENTATIVE OFFICE Phone +65-6542-2611 Fax +65-6542-3611 datamax@pacific.net.sg DATAMAX CHINA REPRESENTATIVE OFFICE Phone +86 21 64952882 datamax_cn@china.com

Built to UL, Canadian, and European safety standards, FCC Class A emissions standard and CE Mark. This data sheet is for informational purposes only. DATAMAX MAKES NO WARRANTIES, EXPRESSED OR IMPLIED IN THIS SUMMARY. Specifications are subject to change without notice. All trademarks are the property of their respective owners. ©2008 DATAMAX BAR CODE PRODUCTS CORPORATION. All rights reserved. Datamax is an ISO 9001 registered company. Rev. 04/08 DMXREW1 SPECIFICATIONS: MODEL DMXREW1 DESCRIPTION REW1 for 1" to 4" cores (25 to 100 mm) LABEL WIDTH Up to 4.5-inches (113 mm). Maximum Label Roll...
