I-Class Industrial Bar Code Printers

Product catalog summary
Overview: The Datamax I-Class family of printers is a comprehensive and cost-effective line of industrial thermal label printers. These printers are designed with a precision-crafted die-cast aluminum frame, offering durability and a lightweight modular design that enhances reliability and longevity.
Key Features:
  • Equipped with a 32-bit processor and 8 or 16 MB of memory for fast processing.
  • Printing resolutions up to 600 DPI and speeds up to 12 inches per second.
  • Front panel user interface with color-coded cues and an embossed loading diagram for ease of use.
  • Modular design allows for field-installable accessories and options.
Applications: Ideal for compliance labeling, shipping and receiving, product identification, pharmacy labeling, asset tracking, inventory control, and high-resolution labeling.
Models and Specifications:
  • I-4208: 8 IPS, 203 DPI, 4.10” width
  • I-4308: 8 IPS, 300 DPI, 4.16” width
  • I-4210: 10 IPS, 203 DPI, 4.10” width
  • I-4212: 12 IPS, 203 DPI, 4.10” width
  • I-4406: 6 IPS, 406 DPI, 4.10” width
  • I-4604: 4 IPS, 600 DPI, 4.16” width
Options and Connectivity: Includes thermal transfer, peel and present, Ethernet connectivity, USB interface, and more. Notably, some options are not available for the I-4208 model.
Media and Ribbon: Supports various media types and thicknesses, with adjustable sensors for different label types. Industry-standard ribbon widths are supported.
Bar Codes and Fonts: Supports a wide range of bar codes and fonts, including downloadable True-Type and AGFA Intellifont. Fonts can be expanded and rotated in multiple directions.
Interfaces and Power: Includes Centronics Parallel port, RS232, and optional Ethernet and USB interfaces. The power source is auto-sensing and auto-ranging.
Physical Specifications: Dimensions are 12.70” H x 12.62” W x 18.60” D, with a weight of 45 lbs (20.5 kg).
Compliance and Standards: Built to UL, Canadian, and European safety standards, with FCC Class A emissions standard and CE Mark.
See more

Catalog excerpts

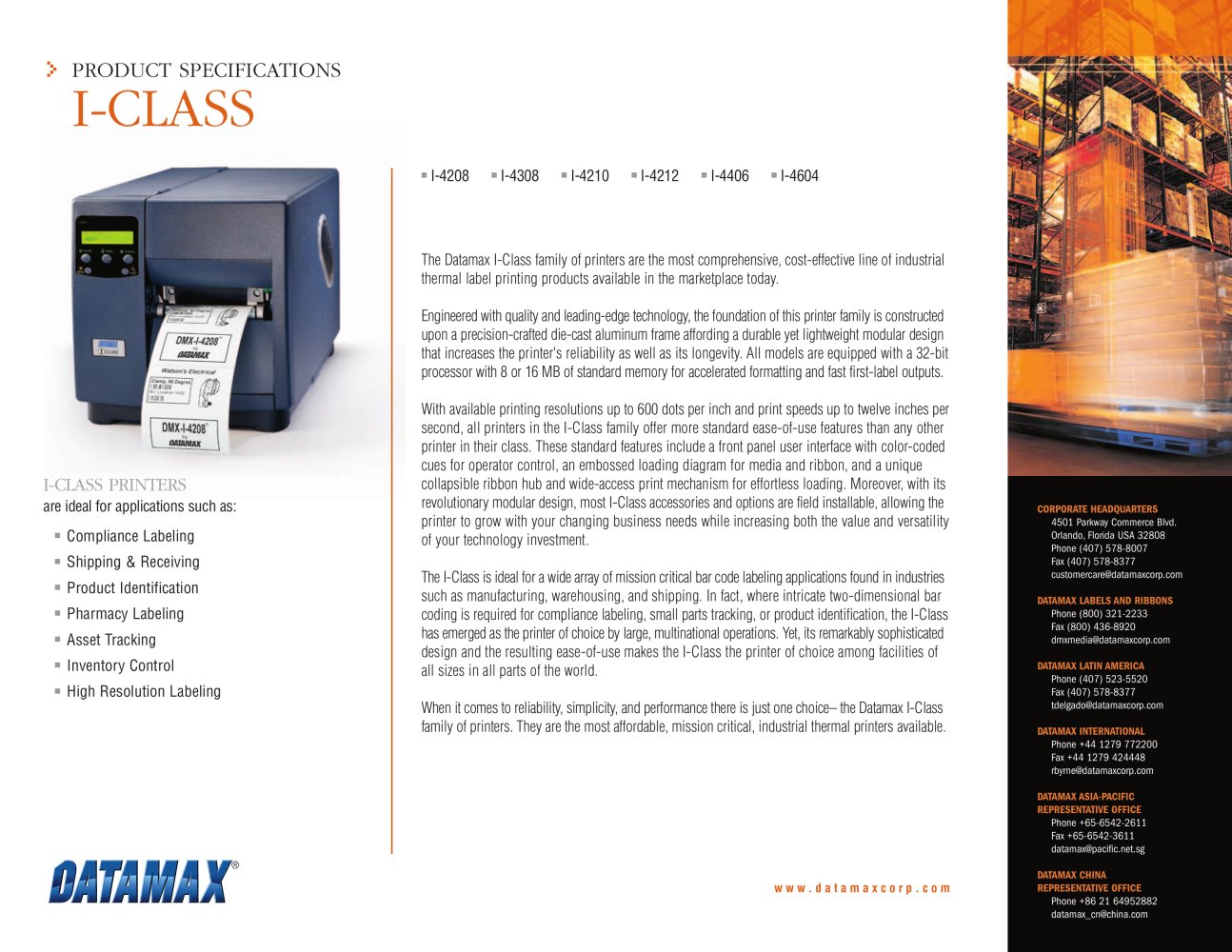

I-Class Industrial Bar Code Printers-2

I-4208I-4308I-4210I-4212I-4406I-4604 DATAMAX I-CLASS OPTIONS: PRINT SPEED8 IPS8 IPS10 IPS12 IPS6 IPS4 IPS > ■ THERMAL TRANSFER RESOLUTION203 DPI300 DPI203 DPI203 DPI406 DPI600 DPIPRINT WIDTH4.104.16Ԕ4.104.10Ԕ4.104.16Ԕ > ■ PEEL AND PRESENT (104 mm)(105.7 mm)(104 mm)(104 mm)(104 mm)(105.7mm)PRINT LENGTH*0.25" 99"0.25" ֖ 99"0.25" 99"0.25" ֖ 99"0.25" 84"0.25" ֖ 55" > ■ DMXNet ETHERNET CONNECTIVITY (6.35mm 2475.6mm)(6.35mm ֖ 2475.6mm)(6.35mm 2475.6mm)(6.35mm ֖ 2475.6mm)(6.35mm 2133.6mm)(6.35mm ֖ 1397.0mm) > ■ LIGHT DUTY CUTTER MEMORY1MB Flash; 8MB SDRAM2MB Flash; 16MB SDRAM2MB Flash; 16MB SDRAM2MB...

 Open the catalog to page 2
