Bar Code Printer Wireless Network Interface Card

Bar Code Printer Wireless Network Interface Card
1 / 2 PagesView full catalog

Bar Code Printer Wireless Network Interface Card

Product catalog summary
Product Overview: The DMXrf Net is a high-performance 802.11b wireless network interface card designed for Datamax I-Class, A-Class, and W-Class printers. It features a dedicated processor for easy installation and configuration, either from the front panel or remotely via a web browser.
Wireless and Network Compatibility: The card supports WiFi standards with Direct Sequence Spread Spectrum operation, offering speeds of 1, 2, 5.5, and 11 Mbps. It supports Open System and Shared Key encryption, including 802.11b WEP modes. The card is compatible with TCP/IP, NetWare, Windows NT/2000/XP, Windows 9x, Peer-to-Peer, LAN Server/Warp Server, and LAN Manager.
Diagnostics and Configuration: Advanced diagnostics and configuration are accessible via TELNET, NetWare, or the on-board serial port. The serial port can also function as an external serial print server. The interface supports SNMP for network management compatibility.
Redundancy and Connectivity: A 10baseT Ethernet interface provides redundancy and allows operation in both wired and wireless environments. The card is hot-swappable and features LED indicators for mode operation.
Supported Protocols and Operating Systems: The card supports multiple protocols including TCP/IP, IPX/SPX, Banyan VINES, NetBEUI, and NetBIOS/IP. It is compatible with various operating systems such as NetWare, Windows NT/2000/XP, Windows 95/98/ME, IBM OS/2 Warp/LAN Server, MacOS, and MacOS X.
Operational Specifications: The card operates in the 2.4 GHz ISM band with variable data rates and a range of 100m indoors and 300m outdoors. It includes MMCX diversity antenna connectors and a hot-swappable wired Ethernet port.
Management Features: Management tools include Datamax Web XAdmin, HP Web JetAdmin, and console access via serial port, TELNET, or NetWare. It supports SNMP MIB I and II, firmware downloads, and offers online help.
Additional Features: The card offers multiple services per port, virtual printer capability, IP security, configurable TCP port numbers, and sophisticated diagnostics including protocol trace and crash dump capabilities.
Compliance and Contact Information: The product complies with UL, Canadian, European safety standards, FCC Class A emissions, and CE Mark. For more information, visit the Datamax website or contact their offices worldwide.
See more

Catalog excerpts

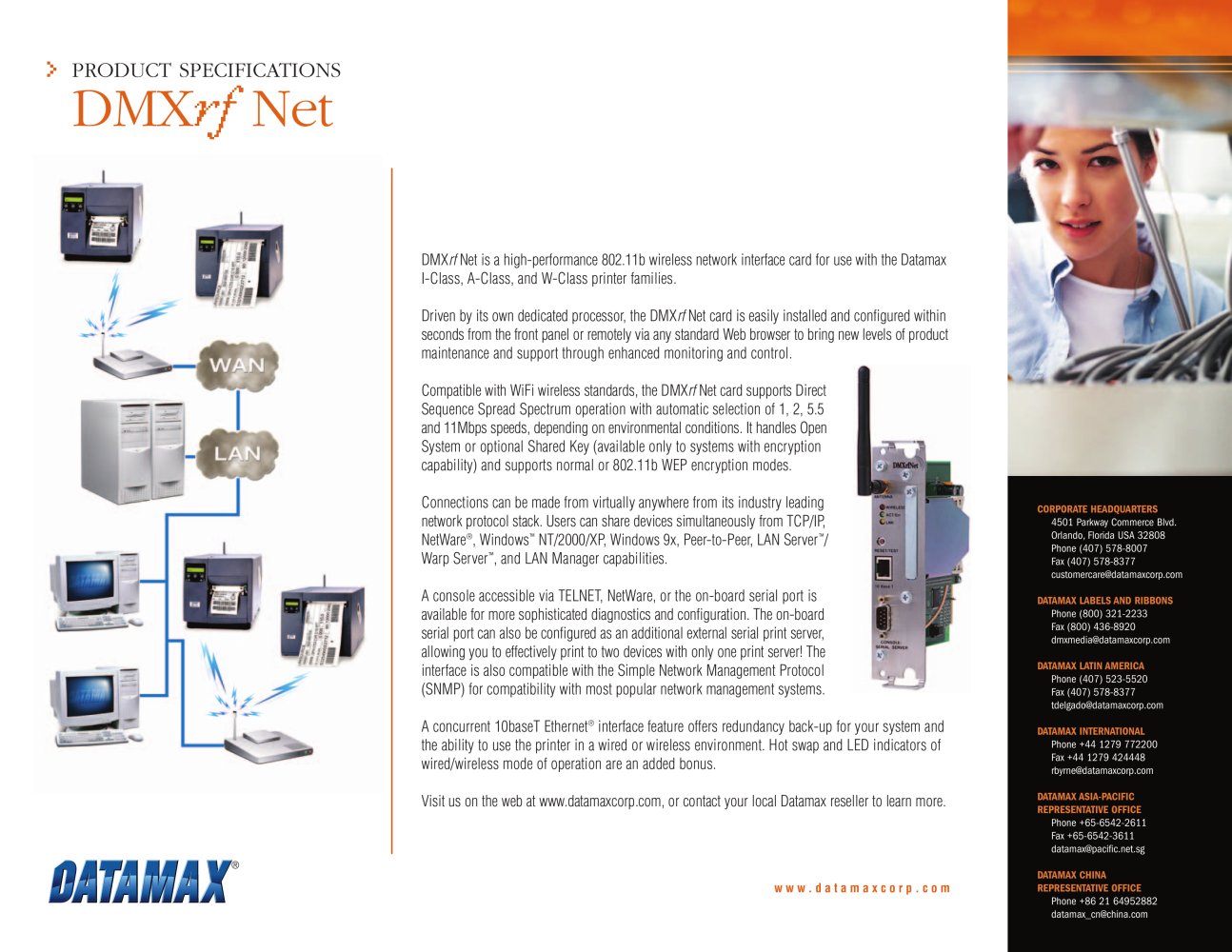

Bar Code Printer Wireless Network Interface Card-2

SUPPORTED PROTOCOLS: > ■ Variable Data Rates: 11, 5.5, 2 and 1 Mbps > ■ TCP/IP (lpd or raw TCP port) > ■ Frequency Band: 2.4 GHz ISM Band > ■ ■ Direct Mode IPX/IP Wired Equivalent Privacy: 128-bit, 64-bit (compatible with 40-bit), none > ■ Sensitivity (typ, AWGN, 8E-2 PER): -91dBm at 1Mbps, -88dBm at 2Mbps, -87dBm at 5.5 Mbps, -84dBm at 11 Mbps > ■ IPX/SPX > ■ Range: 100m Indoor, 300m Outdoor > ■ Banyan VINES > ■ Industry standard MMCX diversity antenna connectors > ■ NetBEUI > ■ Hot swappable wired 10baseT Ethernet port for non-wireless connections. RS-232 compatible serial port with program...
