Bar Code Printer Network Interface Card

Bar Code Printer Network Interface Card
1 / 2 PagesView full catalog

Bar Code Printer Network Interface Card

Product catalog summary

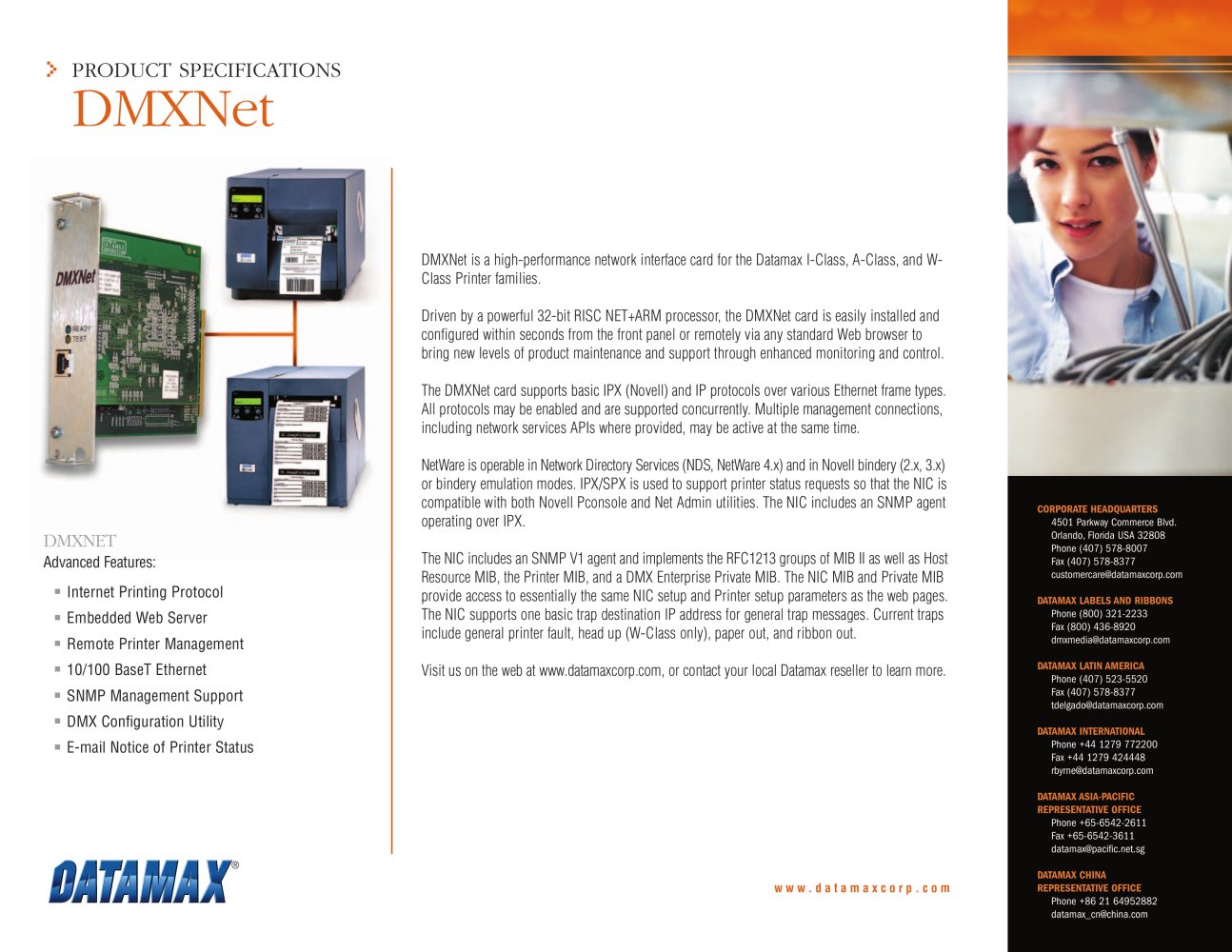

Product Overview: The DMXNet is a high-performance network interface card designed for Datamax I-Class, A-Class, and W-Class Printer families. It features a 32-bit RISC NET+ARM processor, allowing for quick installation and configuration via the front panel or remotely through a web browser.
Network and Protocol Support: The DMXNet card supports IPX (Novell) and IP protocols over various Ethernet frame types, with concurrent support for multiple management connections. It is compatible with Novell Pconsole and Net Admin utilities, and includes an SNMP V1 agent implementing MIB II, Host Resource MIB, Printer MIB, and a DMX Enterprise Private MIB.
Advanced Features: Key features include Internet Printing Protocol, an embedded web server, remote printer management, 10/100 BaseT Ethernet, SNMP management support, and a DMX configuration utility. It also provides email notifications for printer status and supports FTP printing and upgrades.
Compliance and Standards: The DMXNet is built to UL, Canadian, and European safety standards, FCC Class A emissions standard, and CE Mark. It is Novell "YES" certified and supports various network protocols including ARP, ICMP, IP, IPX/SPX, TCP, and UDP.
Connectivity and Management: The card features an 8-wire RJ45 10/100BaseT connector with automatic selection, an integral HTTP server for monitoring, and supports peer-to-peer discovery and printing. It also includes SNMP traps and email notifications for printer errors.
Contact Information: For more information, visit www.datamaxcorp.com or contact Datamax through their various regional offices listed in the document.
See more

Catalog excerpts

Bar Code Printer Network Interface Card-2

INDICATORSOne green LED and one amber LED > CONFIGURATIONStored in NVRAM NETWORK PROTOCOLSARP, ICMP, IP, IPXISPX, TCP, and UDPMANAGEMENT & AutoIP, FTP, SLP, UPnP, BootP, HTTP, SMTP, WINS, DDNS, LDAP, SNMP, DHCP, POP3, and Telnet DISCOVERY PROTOCOLS CONNECTORSEthernet: 8-wire RJ45 10/100BaseT > ■ Automatic selection of 10BaseT or 100BaseT Fast Ethernet connection. > ■ Integral HTTP Server to allow monitoring and management of the printer and the DMXNet card from a standard Web browser program. > ■ Peer-to-Peer (serverless) discovery and printing from Windows 95/98/ME or Windows NT/2000 workstations...

 Open the catalog to page 2
