A-Class Thermal Print Engine

A-Class Thermal Print Engine

Product catalog summary

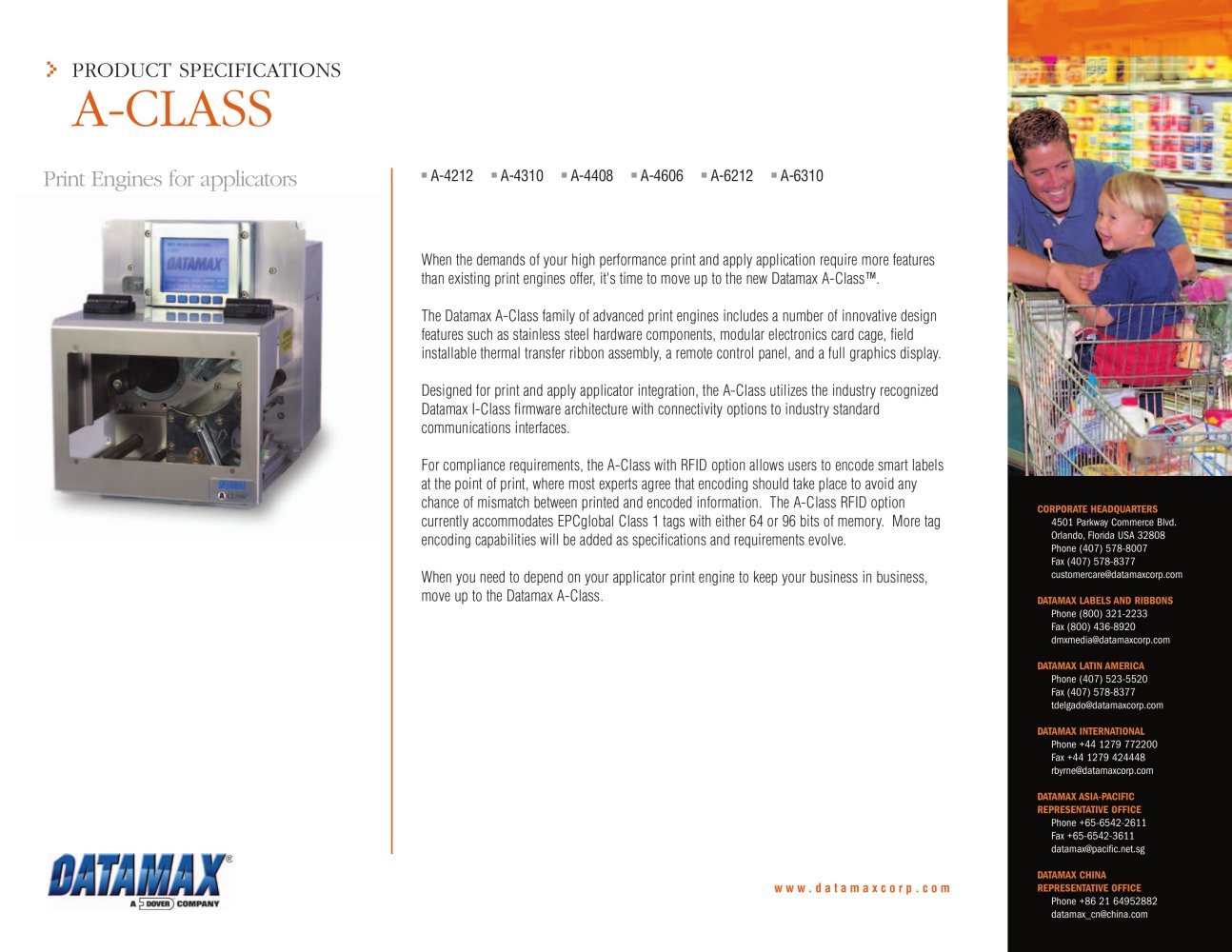

Product Overview: The Datamax A-Class is a series of advanced print engines designed for high-performance print and apply applications. It features stainless steel components, modular electronics, a remote control panel, and a full graphics display. The A-Class is compatible with Datamax I-Class firmware and supports various industry-standard communication interfaces.

RFID Capabilities: The A-Class offers an RFID option for encoding smart labels at the point of print, supporting EPCglobal Class 1 tags with 64 or 96 bits of memory. Future updates will expand tag encoding capabilities.

Standard Features: The A-Class includes a graphic LCD display, multiple connectivity options (RS-232, USB, IEEE 1284, RS422/RS485), and supports a wide range of barcode symbologies. It also features a media peel bar, 4MB FLASH memory, 16MB DRAM, and various diagnostic and security features.

Technical Specifications: The A-Class models (A-4212, A-4310, A-4408, A-4606, A-6212, A-6310) offer different resolutions (203 to 600 dpi), print widths (up to 6.610 inches), and print speeds (up to 12 inches/sec). They support media widths from 1 to 6.70 inches and ribbon lengths up to 1968 feet.

Options and Accessories: Available options include left-handed versions, direct thermal printing, ribbon saver, internal/external Ethernet LAN, RFID encoding, and international language print capability. The A-Class is built to UL, Canadian, and European safety standards.

Contact Information: Datamax provides contact details for various regional offices, including headquarters in Orlando, Florida, and offices in Latin America, Europe, Asia-Pacific, and China.

Catalog excerpts

Right-hand Model, Cover Open Rear of Printer, Slide in Card Cage DMXrfNET WirelessEthernet CardDMXNETEthernet Card Graphic LCDDisplay ■ Right-handed printer > ■ EFIGS (English, French, Italian, German, and Spanish) > ■ Parse error-tolerant command language interpretation > ■ Front panel security > ■ Media peel bar LCD languages > ■ Internal test labels for printhead verification, print > ■ Input line mode (ASCII text input) capability > ■ ■ 4MB FLASH downloadable program memory AGFA Scalable Font Engine with CG Triumvirate quality validation, and internal configuration > ٢֠ Scalable (regular...

Open the catalog to page 2

DATAMAX A-CLASS STANDARD FEATURES: A-4212A-4310 A-4408 A-4606 > *** A-6212 A-6310 RESOLUTION (dpi)203 300406600203300 MAX PRINT WIDTH (in)4.0944.1614.0944.1576.6106.401 NOM PRINT HEAD DOT SIZE (in x in).0043 x .0052.0027 x .0043.0013 x .0018.0008 x .0015.0043 x .0052.0027 x .0043 PRINT SPEED (in/sec)2 - 122 - 102 - 82 - 62 - 122 - 10 MEDIA WIDTH RANGE (in)1 - 4.651 - 4.651 - 4.651 - 4.652 - 6.702 - 6.70 RIBBON WIDTH RANGE (in)1 - 4.651 - 4.651 - 4.651 - 4.652 - 6.702 - 6.70MEDIA EDGE TO PRINTHEAD DOT.070.000.070.000.000.054 1, LH MODEL (in)MEDIA EDGE TO PRINTHEAD DOT.070.070.070.070.070.070 1,...

Open the catalog to page 3

■ A-4212 > ■ A-6212 > ■ A-4310 > ■ A-6310 > ■ A-4408 > ■ A-4606 > www.datamaxcorp.com Built to UL, Canadian, and European safety standards, FCC Class A emissions standard and CE Mark. This data sheet is for informational purposes only. DATAMAXMAKES NO WARRANTIES, EXPRESSED OR IMPLIED IN THIS SUMMARY. Specifications are subject to change without notice. All trademarks are the property oftheir respective owners. 2004 DATAMAX BAR CODE PRODUCTS CORPORATION. All rights reserved. Datamax is an ISO 9001 registered company. Rev. 02/05 size="-1">

Open the catalog to page 4
