A-CLASS print engine
4Pages

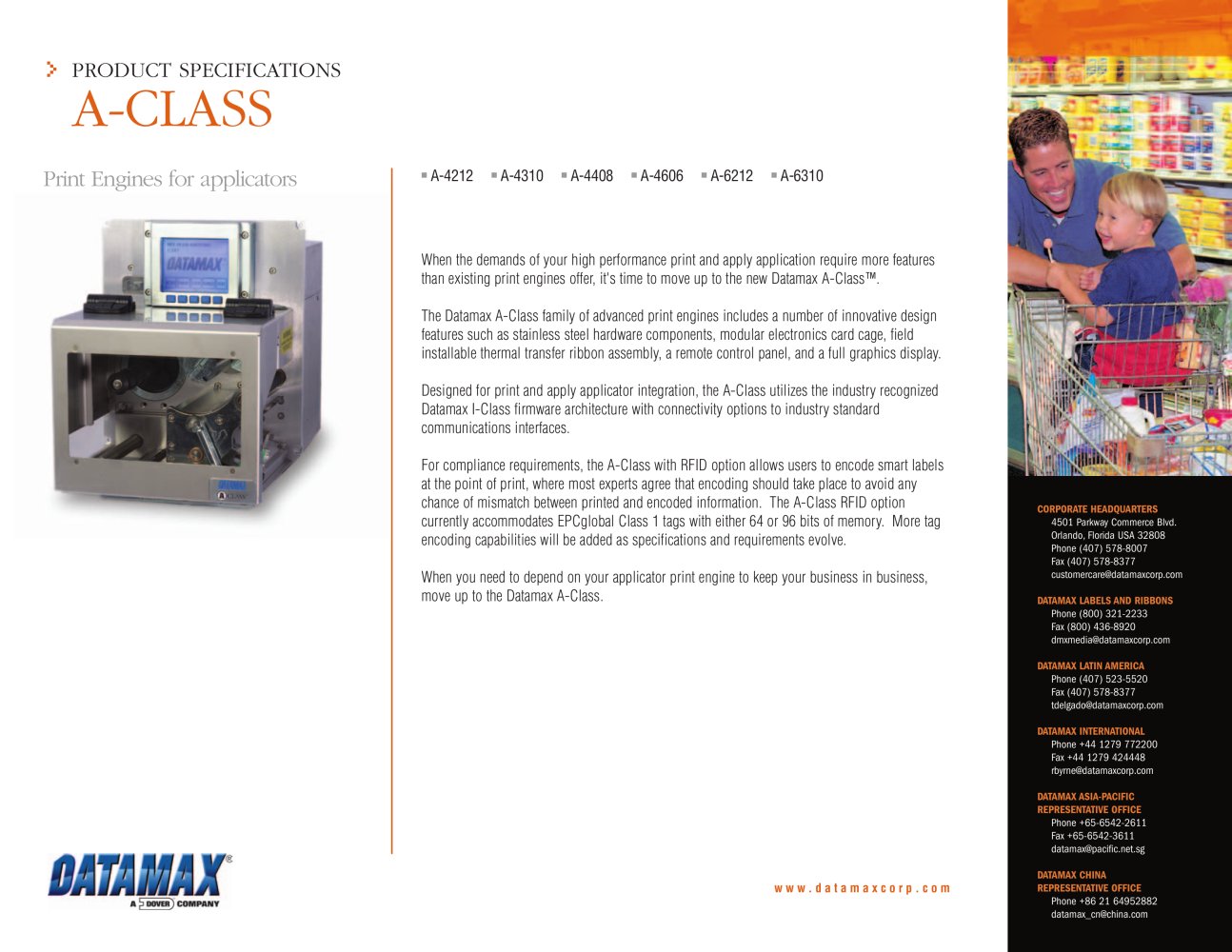

> PRODUCT SPECIFICATIONS A-CLASS When the demands of your high performance print and apply application require more features than existing print engines offer, it's time to move up to the new Datamax A-Class™. The Datamax A-Class family of advanced print engines includes a number of innovative design features such as stainless steel hardware components, modular electronics card cage, field installable thermal transfer ribbon assembly, a remote control panel, and a full graphics display. Designed for print and apply applicator integration, the A-Class utilizes the industry recognized Datamax I-Class firmware architecture with connectivity options to industry standard communications interfaces. For compliance requirements, the A-Class with RFID option allows users to encode smart labels at the point of print, where most experts agree that encoding should take place to avoid any chance of mismatch between printed and encoded information. The A-Class RFID option currently accommodates EPCglobal Class 1 tags with either 64 or 96 bits of memory. More tag encoding capabilities will be added as specifications and requirements evolve. When you need to depend on your applicator print engine to keep your business in business, move up to the Datamax A-Class. CORPORATE HEADQUARTERS 4501 Parkway Commerce Blvd. Orlando, Florida USA 32808 Phone (407) 578-8007 Fax (407) 578-8377 customercare@datamaxcorp.com DATAMAX LABELS AND RIBBONS Phone (800) 321-2233 Fax (800) 436-8920 dmxmedia@datamaxcorp.com DATAMAX LATIN AMERICA Phone (407) 523-5520 Fax (407) 578-8377 tdelgado@datamaxcorp.com DATAMAX INTERNATIONAL Phone +44 1279 772200 Fax +44 1279 424448 rbyrne@datamaxcorp.com DATAMAX ASIA-PACIFIC REPRESENTATIVE OFFICE Phone +65-6542-2611 Fax +65-6542-3611 datamax@pacific.net.sg DATAMAX CHINA REPRESENTATIVE OFFICE Phone +86 21 64952882 datamax_cn@china.com Print Engines for applicators n A-4212 n A-4310 n A-4408 n A-4606 n A-6212 n A-6310 w w w. d a t a m a x c o r p . c o m

DMXrfNET Wireless Ethernet Card DMXNET Ethernet Card > PRODUCT SPECIFICATIONS A-CLASS SUPPORTED BARCODES: Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5 digit addendums, Code 93, Postnet, UCC/EAN Code 128, Telepen, UPS MaxiCode, FIM, PDF417, USD-8, Datamatrix, QR Code, Aztec, TLC 39, Micro PDF417, RSS Right-hand Model, Cover Open Rear of Printer, Slide in Card Cage n Right-handed printer n Media peel bar n 4MB FLASH downloadable program memory n 16MB DRAM memory n Two RS-232 serial interfaces, 9pin n One IEEE 1284 compliant...

Microsoft Word - Document1 tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:5.00pt "Franklin Gothic Medium", sans-serif; } .font3 { font:7.00pt "Franklin Gothic Medium", sans-serif; } .font4 { font:5.00pt "Impact", sans-serif; } .font5 { font:6.00pt "Impact", sans-serif; } .font6 { font:6.00pt "Lucida Sans Unicode", sans-serif; } .font7 { font:7.00pt "Lucida Sans Unicode", sans-serif; } DATAMAX A-CLASS STANDARD FEATURES: A-4212 A-4310 A-4408 A-4606*** A-6212 A-6310 RESOLUTION (dpi) 203...

Microsoft Word - Document1 tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:17.00pt "Arial", sans-serif; } .font5 { font:4.20pt "Franklin Gothic Medium", sans-serif; } .font6 { font:7.00pt "Franklin Gothic Medium", sans-serif; } .font7 { font:5.00pt "Impact", sans-serif; } .font8 { font:7.00pt "Lucida Sans Unicode", sans-serif; } .font9 { font:4.00pt "Times New Roman", serif; } .font10 { font:8.00pt...
