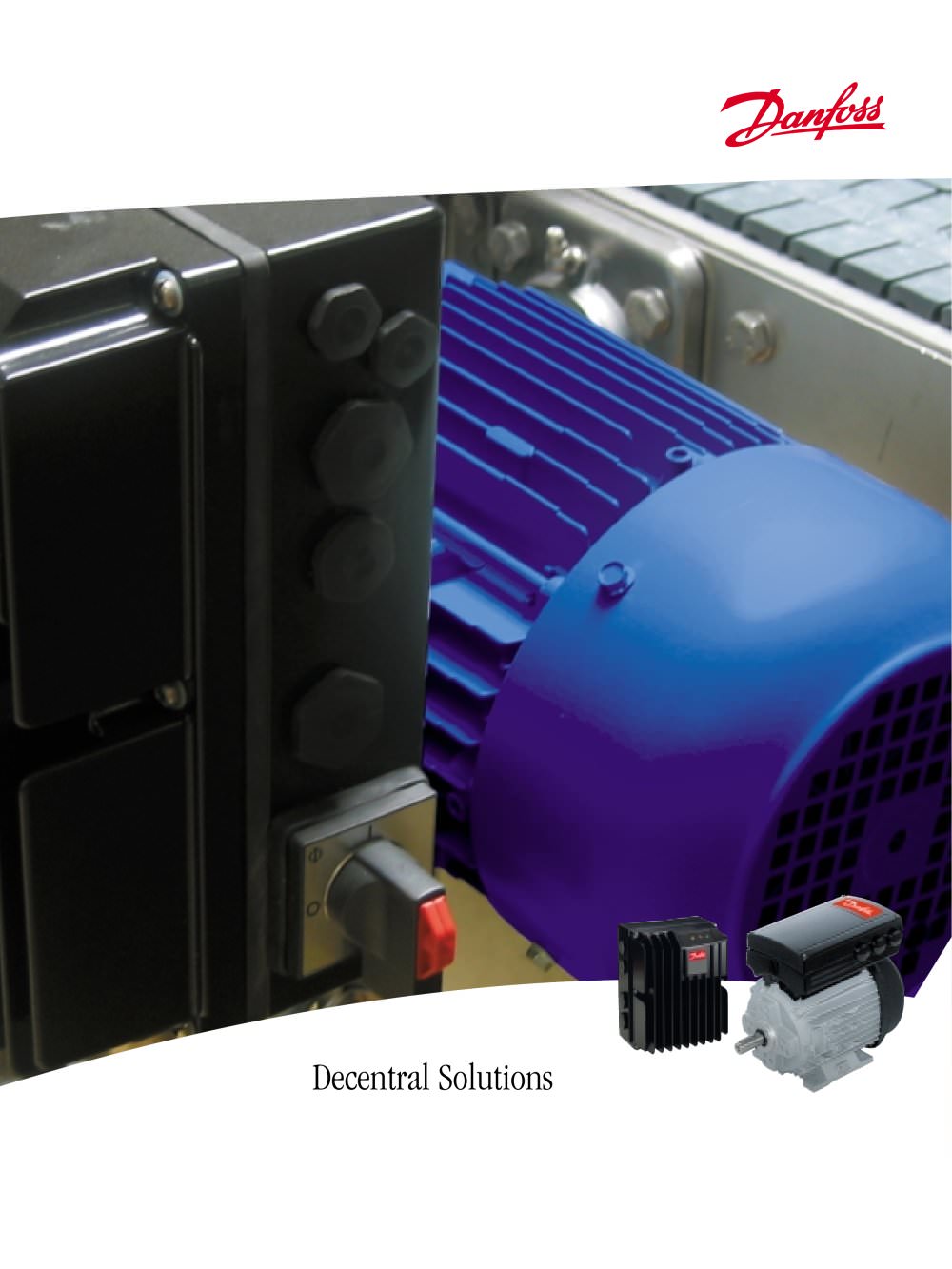

VLT® Decentral FCD 300

VLT® Decentral FCD 300
8Pages

Catalog excerpts

Flexibility, easy installation and ser-vicing were in focus when Danfoss designed the decentral product range. The motor controls are IP 66 designed to withstand the often harsh environ- ment.The Danfoss decentral product rangecovers all applications from basic start/stop through soft start to advanced variable speed control. > Central control panels Less need for: Long screened cables Space-consuming motor control cabinets are eliminated.Օ Reduced need for wiring long screened motor cables. Cooling Heat from the power electronics is dissipated in the plant and not in cabinets requiring...

Open the catalog to page 2

FCDFCMDMS Compact solution ՕHigh-energy efficiency Large power range ՕLow earth leakage current (< 30 mA) Low harmonics (Comply with IEC 61000-3-2) ՕMounting wall ֖ motor Adapt to any motor ՕIP 66 / NEMA 4X Optimised variable torque operation ՕClosed loop operation RFI compliance Ֆ IEC 61800 - 3 Class 1A IEC 61800 - 3 Class 1B ֕Fully protected motor and drive ֕Flying start Full voltage to motor ՕNo additional motor heating 160 % over-torque ՕFull slip compensation Flexible brake options ՕMechanical brake control and supply Thermal motor protection by ETR-function or motor...

Open the catalog to page 3

Danfoss VLT > Ү decentral motor controls, VLT > Decentral FCD 300, VLT > ή DriveMotor FCM 300 and VLT > Decentral Motor Switch DMS 300 are designed to control standard AC asynchronous motors. Their flexibility allows the FCD 300 and the Decentral Motor Switch DMS also to adapt to special motor types. An example is the AMT feature (Automatic Motor Tuning) in the FCD 300. Combining the FCD 300 to Danfoss gear motorsmakes it even easier as they fit mechanically and the motor specifications are already stored in the FCD 300 memory. Combined motor drives are provided pre-assembled directly from...

Open the catalog to page 4

Input/outputNo Analogue input signal:2 +/-10VDC and 0 (4) - 20 mA Analogue output signal:1 0 to 20 mA programmable Digital input: 5Fully programmable Digital/frequency output: 1 Programmable (150 Ζ 110 kHz) Relay output: 1 Programmable (240 V/ 2 A) Motor protection:1Thermistor Type303305307311315322330335 Input current 3 * 380 V 480 V I > L,N [A]1.21.61.92,63.24.76.16.8 Output current I > N [A]1.41.82.23.03.75.27.07.6Typical shaft output P > M,N [kW]0.370.550.751.12.52.23.03.3 P > M,N [Hp] 0.50.751.01.52.03.04.05.0 Dimension L * W * D [mm]244 * 192 * 142300 * 258 * 151 EnclosureIP 66/NEMA...

Open the catalog to page 6

Electromagnetic disturbances are proportional to cable lengths. As decentral drives are located near to or on the motors, the problem is minimised. Fieldbus communication is an excel-lent way of distributing information in a plant, and works perfectly to- gether with decentral installations. You will be able efficiently to set-up and control you process from a central location. > Danfoss variable speed drives react optimally on both sudden and con- tinuous load changes. Production will continue while the drives adapt speed and torque to the changing condi- tions. Due to the unique VVC...

Open the catalog to page 7
