VLT® Decentral Drive FCD 302

VLT® Decentral Drive FCD 302
2Pages

Catalog excerpts

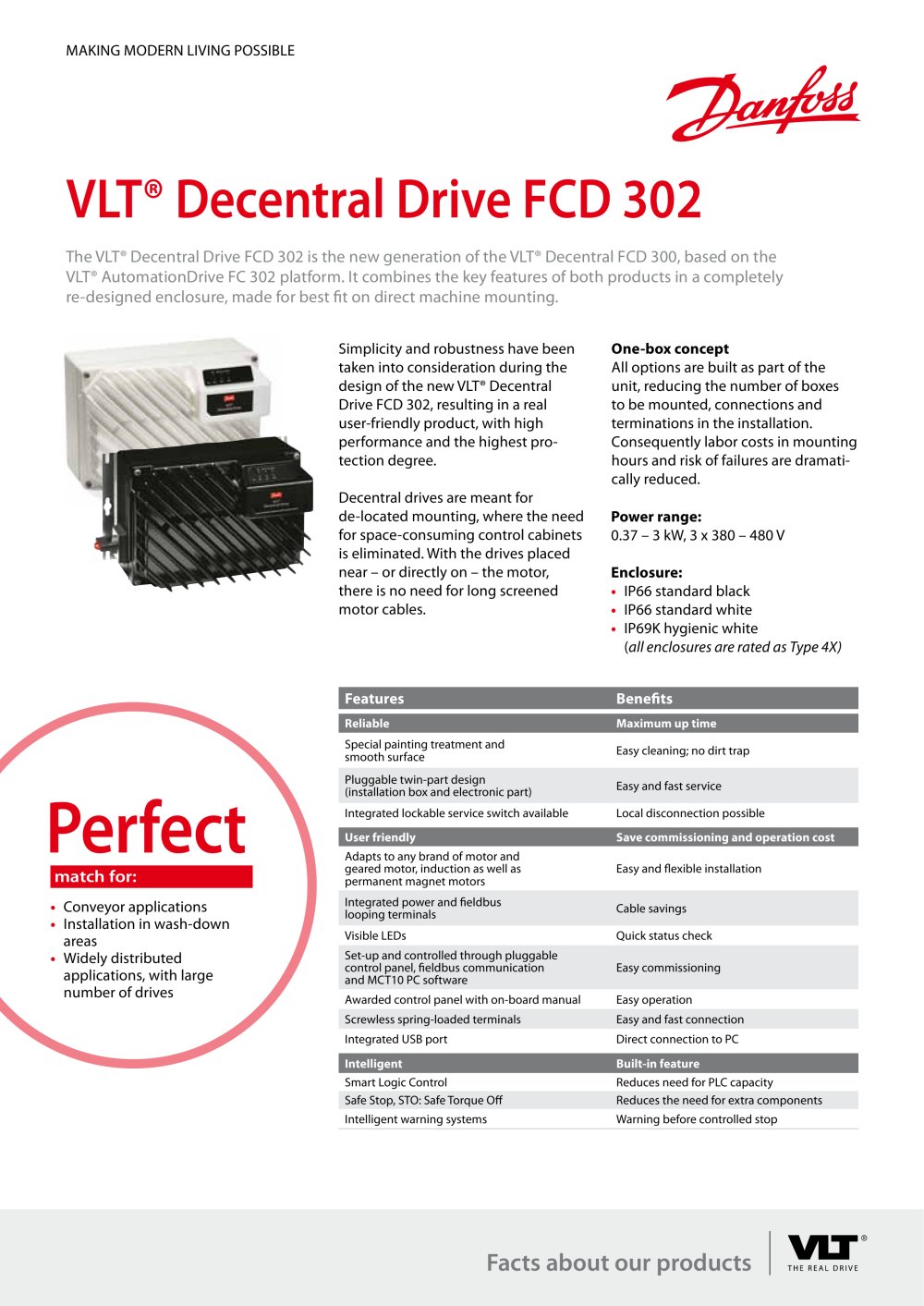

Produktfoto Features Benefits Reliable Maximum up time Special painting treatment and smooth surface Easy cleaning; no dirt trap Pluggable twin-part design (installation box and electronic part) Easy and fast service Integrated lockable service switch available Local disconnection possible User friendly Save commissioning and operation cost Adapts to any brand of motor and geared motor, induction as well as permanent magnet motors Easy and flexible installation Integrated power and fieldbus looping terminals Cable savings Visible LEDs Quick status check Set-up and controlled through pluggable control panel, fieldbus communication and MCT10 PC software Easy commissioning Awarded control panel with on-board manual Easy operation Screwless spring-loaded terminals Easy and fast connection Integrated USB port Direct connection to PC Intelligent Built-in feature Smart Logic Control Reduces need for PLC capacity Safe Stop, STO: Safe Torque Off Reduces the need for extra components Intelligent warning systems Warning before controlled stop VLT® Decentral Drive FCD 302 The VLT® Decentral Drive FCD 302 is the new generation of the VLT® Decentral FCD 300, based on the VLT® AutomationDrive FC 302 platform. It combines the key features of both products in a completely re-designed enclosure, made for best fit on direct machine mounting. Simplicity and robustness have been taken into consideration during the design of the new VLT® Decentral Drive FCD 302, resulting in a real user-friendly product, with high performance and the highest protection degree. Decentral drives are meant for de-located mounting, where the need for space-consuming control cabinets is eliminated. With the drives placed near – or directly on – the motor, there is no need for long screened motor cables. One-box concept All options are built as part of the unit, reducing the number of boxes to be mounted, connections and terminations in the installation. Consequently labor costs in mounting hours and risk of failures are dramatically reduced. Facts about our products Perfect match for: • Conveyor applications • Installation in wash-down areas • Widely distributed applications, with large number of drives Power range: 0.37 – 3 kW, 3 x 380 – 480 V Enclosure: • IP66 standard black • IP66 standard white • IP69K hygienic white (all enclosures are rated as Type 4X) MAKING MODERN LIVING POSSIBLE

Open the catalog to page 1

Integrated 24V supply 24 V DC control supply is provided by the drive. Separate supply terminals have been made for remote I/Os distribution. Power looping The new FCD 302 facilitates internal power looping. Terminals for 6 mm2 power cable inside the enclosure allows connection of multiple units in the same branch. Ethernet switch Two RJ-45 ports are available in the drive for easy daisy chaining of Ethernet communication. Fieldbus options • PROFIBUS DP • PROFINET • EtherNet/IP Application options • Encoder • Resolver • Functional Safety Hardware options • Mounting brackets • Service switch...

Open the catalog to page 2

VLT® Decentral Drive FCD 302 2Pages
