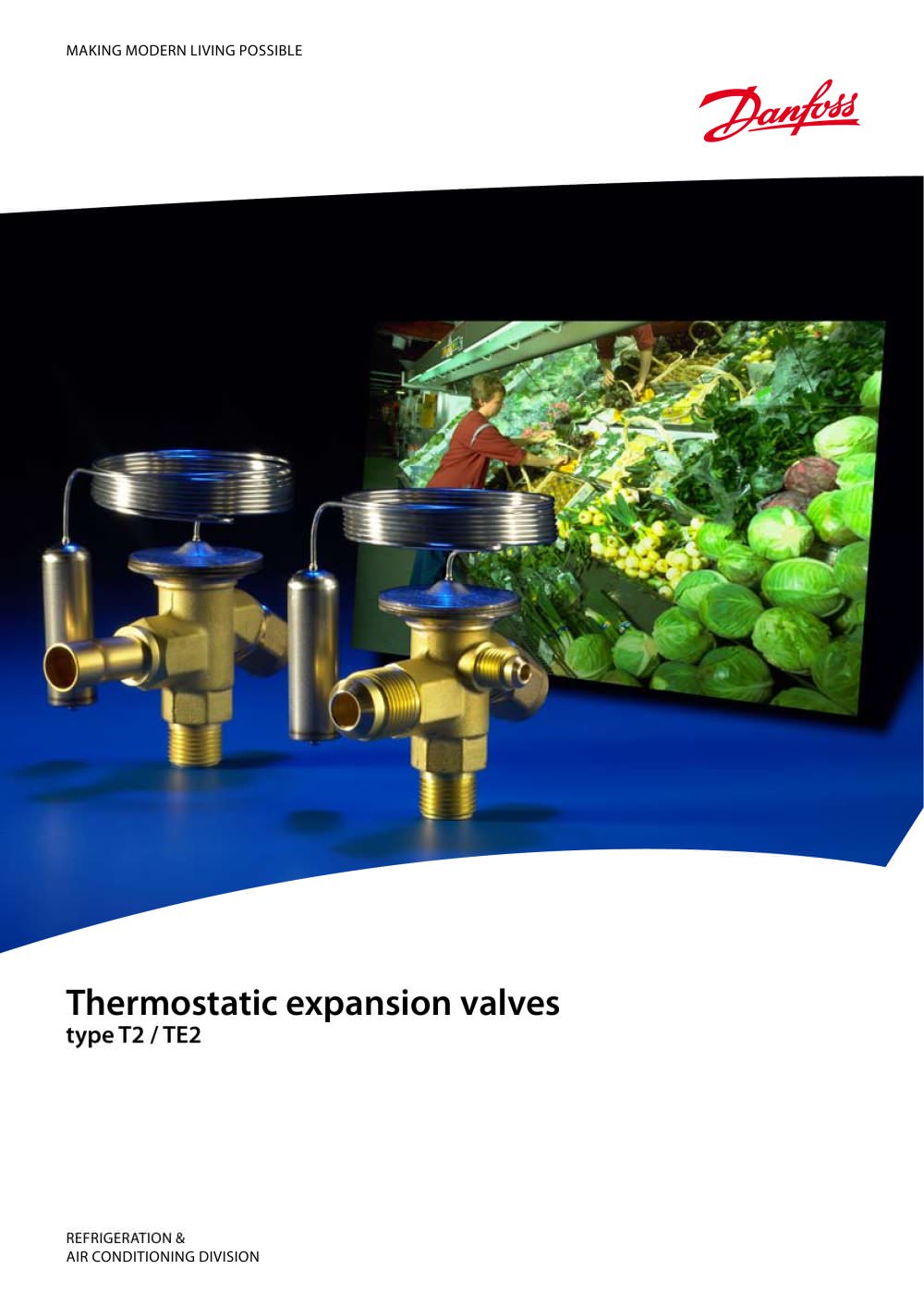

T2 / TE2 - Quick Selection sheet

Product catalog summary

Overview: The document provides detailed information on the T2 and TE2 thermostatic expansion valves used in refrigeration and air conditioning systems. These valves regulate the injection of liquid refrigerant into evaporators, controlled by refrigerant superheat, making them suitable for 'dry' evaporators.

Features:

Stainless steel capillary tube and bulb for high corrosion and vibration resistance.
Laser-engraved label and laser-welded power element for durability.
Interchangeable orifice assembly with dirt protection filter.
Flare or solder outlet options.

Applications: Suitable for traditional refrigeration, heat pump systems, air conditioning units, liquid coolers, ice cube machines, and transport refrigeration.

Advantages:

Large temperature range applicability.
Interchangeable orifice assembly for easy stocking and capacity matching.
Available with MOP (Max. Operating Pressure) to protect compressor motors.

Technical Specifications:

Rated capacities range from 0.5 to 15.5 kW for R22.
Valves available for special temperature ranges.
Flare and solder adaptor options available.

Orifice Assembly: The document includes detailed tables of orifice numbers, temperature ranges, and rated capacities for various refrigerants (R22, R407C, R134a, R404A/R507).

Ordering Information: Includes code numbers for different configurations and pressure equalization options.

Correction Factors: Provides correction factors for subcooling across different refrigerants to adjust plant capacity calculations.

Related Products: Mentions other Danfoss products like electronic thermostats, solenoid valves, and filter driers.

Contact Information: Danfoss Ltd. contact details for further assistance and product inquiries.
