Introduction

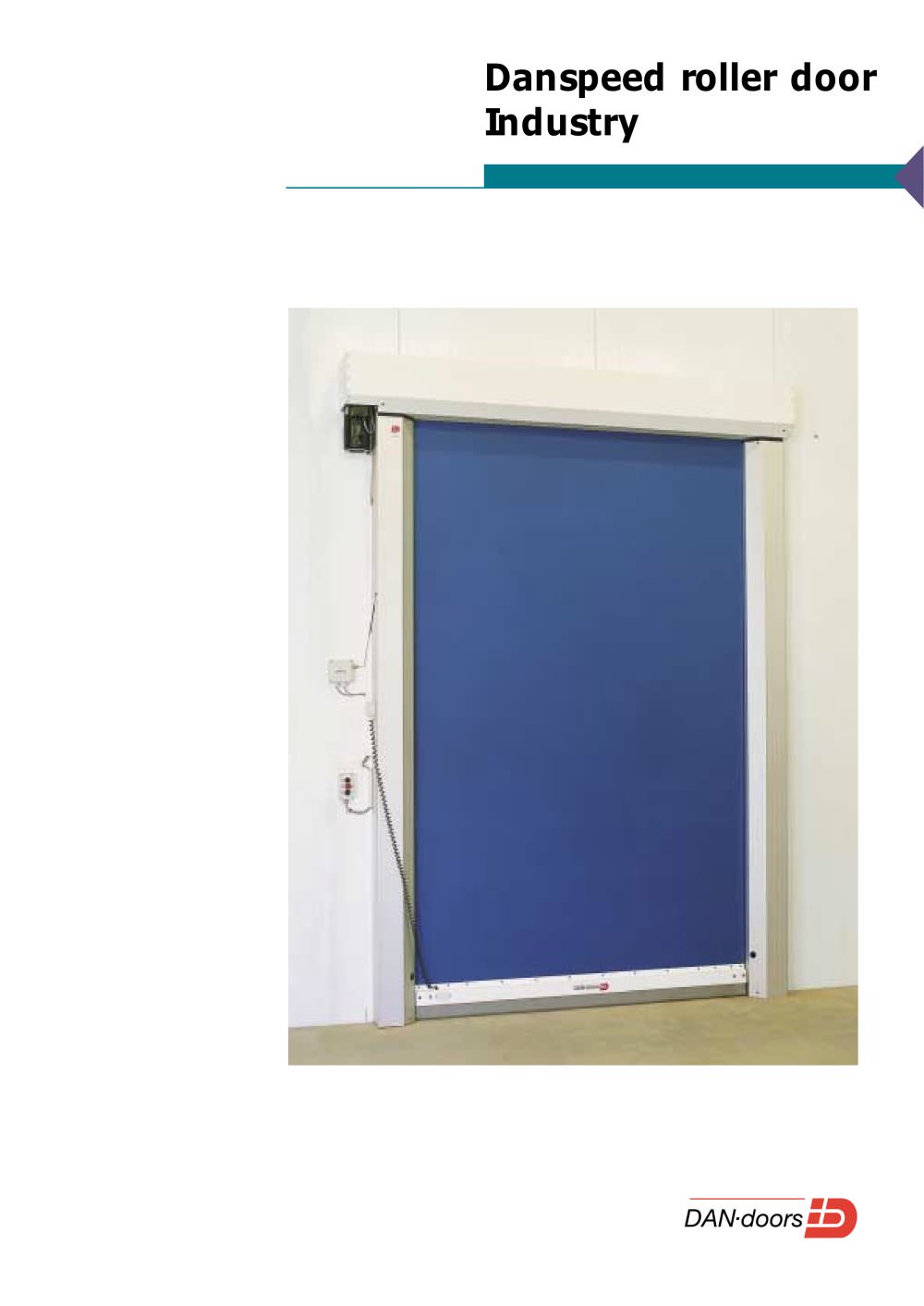

The Danspeed roller door is a modern industrial door designed to enhance workplace efficiency by facilitating smoother traffic flow. Its design minimizes issues such as draughts, dust, and noise, contributing to an improved work environment. Additionally, it offers cost-effective benefits through low maintenance and reduced heat/cold loss.

Specifications

• Speed: Standard opening speed is 1.6 m/sec and closing speed is 0.3 m/sec.
• Models: Available for standard use (AR0021S), freezer rooms (AR0021F), and with wind protection (AR0021V).
• Dimensions: Custom-made with maximum dimensions of 3500 x 4500 mm, larger sizes available on request.
• Door Leaf: Made of 2 mm blue reinforced canvas, with an orange option at extra cost.
• Frame: Made from extruded and anodised aluminium profiles (alloy 6063-T6).
• Guidance: Guided by straps with tension maintained by vertical stainless steel springs.
• Heating: Freezer model includes heating elements with adjustable sensors.
• Automatics: Equipped with Danspeed toothbar automatics, ready for connection to 3 x 380V/230V - 50 Hz.

Safety Features

• Anti-catch device stops and reverses the door if resistance is encountered.
• Photocells are installed at 250 mm height for additional safety.
• Emergency handle for manual operation during power cuts.
• Safety device for release in case of collisions.

Control Options

• Standard control includes 2 push-button panels with emergency stop.
• Optional extras include truck contacts, radio control, photocell device, and radar.

Conclusion
The Danspeed roller door exemplifies DAN-doors' commitment to quality, precision, and timeless design, making it a reliable choice for industrial applications.
