DC,BLDC MOTOR
84Pages

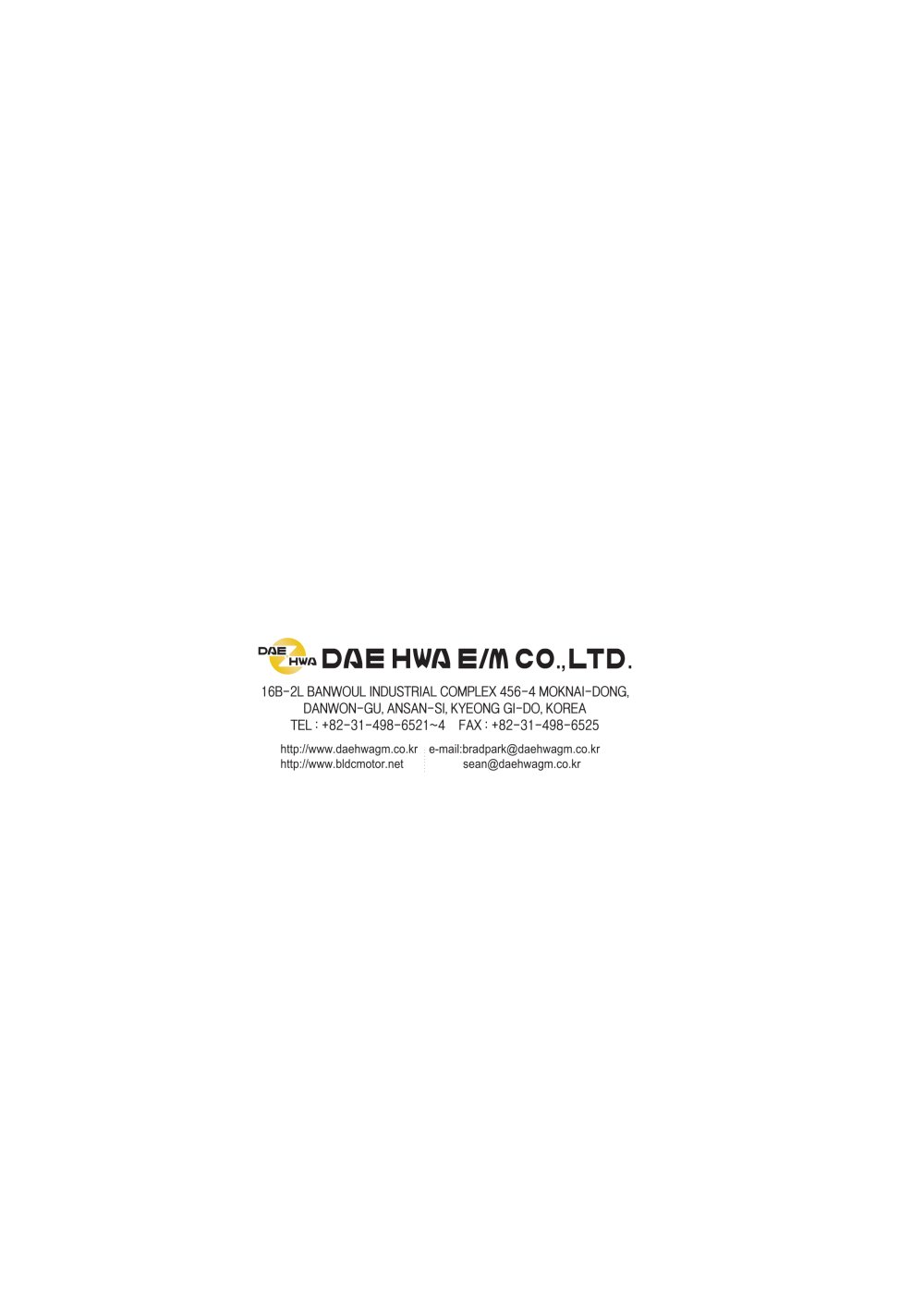

16B-2L BANWOUL INDUSTRIAL COMPLEX 456-4 MOKNAI-DONG, DANWON-GU, ANSAN-SI, KYEONG GI-DO, KOREA TEL : +82-31-498-6521~4 FAX : +82-31-498-6525 http://www.daehwagm.co.kr http://www.bldcmotor.net e-mail:bradpark@daehwagm.co.kr sean@daehwagm.co.kr

Brand name : ExceM ExceM is abbreviation of Excellent Motor -“ Excellent Motor”,“ Supreme Motor” - As managerial strategy on BLDC,DC motor, this BI ( Brand Identity) is to make and develop the supreme motor having an competition-power in a overseas market

Core technology exists at a invisible. Contents CEO Message History Brushless DC Motor Gearhead for Brushless DC Motor Drivers for Brushless DC Motor Special Brushless DC Motor DC Motor Gearhead for DC Motor Special DC Motor •04 •05 •07 •15 •19 •33 •39 •53 •61

CEO Message Dear Sir/Madam, It is my pleasure to introduce our company to your esteemed company. DaeHwa E/M has been manufacturing small DC, Brushless DC motor for various applications in Korea and has actively exercised as the specialized manufacturer in motion-control field. Since establishment, we have made an effort on enlarging production range for customer satisfaction and so the regular percentage out of yearly managing profits has been continuously invested for making the best system such as excellent facilities & strict quality control(ISO900,ISO14001). According to ceaseless...

1993. 06. 1 1997. 09. 22 1999. 06. 10 2000. 12. 18 2001. 06. 1 2003. 11. 30 2004. 09. 10 2005. 06. 1 2005. 10. 25 2006. 06. 30 2006. 08. 07 2006. 08. 16 2006. 11. 30 2007. 05. 10 2007. 06. 22 2008. 02. 10 2008. 06. 30 2008. 12. 15 2009. 05. 01 2009. 10. 30 2009. 11. 15 •Founded Daehwa Electric & Machinery Co.,Ltd •Development and production of DC Motor & Gearhead •Obtained UL certificate(DC brush motor) •Obtained CE certificates of DC motor for booster pump •Obtained ISO 9001 certificates(UKAS) •Appointed as the promising small and medium business (Governor of Kyeonggi-do) •Completed...

GEAR TYPE D-CUT TYPE BLDC MOTOR Coding System Gearhead for only BLDC motor MOTOR OUTPUT SHAFT [TABLE1] model: 60mm model: 80mm model: 90mm model: 60mm model: 80mm model: 90mm MOTOR WIRING HALL IC WIRING

24V 30W 60mm sq(2.36in.sq) BLDC • Easy connection & simple operation • Thin & compact size • Wide speed range and constant torque • 12pole,3phase,hall IC shielded ball bearing • Special making as per customer requirement is possible • CE mark, IP65 BLDC

24V 50W 80mm sq(3.15in.sq) BLDC • Easy connection & simple operation • Thin & compact size • Wide speed range and constant torque • 12pole,3phase,hall IC shielded ball bearing • Special making as per customer requirement is possible • CE mark, IP65

24V 100W 90mm sq(3.54in.sq) BLDC • Easy connection & simple operation • Thin & compact size • Wide speed range and constant torque • 12pole,3phase,hall IC shielded ball bearing • Special making as per customer requirement is possible • CE mark, IP65

220V 20W/30W 60mm sq(2.36in.sq) BLDC • Easy connection & simple operation • Thin & compact size • Wide speed range and constant torque • 12pole,3phase,hall IC shielded ball bearing • Special making as per customer requirement is possible • CE mark, IP65

220V 40W/50W 80mm sq(3.15in.sq) • Easy connection & simple operation • Thin & compact size • Wide speed range and constant torque • 12pole,3phase,hall IC shielded ball bearing • Special making as per customer requirement is possible • CE mark, IP65 BLDC

220V 90W/100W 90mm sq(3.54in.sq) BLDC • Easy connection & simple operation • Thin & compact size • Wide speed range and constant torque • 12pole,3phase,hall IC shielded ball bearing • Special making as per customer requirement is possible • CE mark, IP65

Gearhead Gearhead for only BLDC Motor 60mm 80mm 90mm

Drivers BLDC Motor drivers EXH series(30W, 50W, 100W) EXU series(20W, 40W, 90W)

Specification on DC, BLDC motor Below is not all models we can make. It is possible to make motor as per customer requirement.

Special Special BLDC motor 60mm BLDC Motor with Built-in Driver 90mm BLDC Motor with Built-in Driver Automatic Door Control System Brushless DC motor (Explosion- Proof type) BLDC Motor with Electromagnetic Brake

24V 60mm Brushless DC Motor with Built-in Driver Pin Out Configuration: 1. Brown (AWG 24)-Encoder 2. White (AWG 24)-Reverse 3. Yellow (AWG 24)-0~5 VDC 4. Red (AWG 20)-Motor '+' 5. Black (AWG 24)- Ground 6. Black (AWG 20)- Motor '-'

24V 90mm Brushless DC Motor with Built-In Driver Special LOGIC PIN # DESCRIPTION 2345689 10 11 12 DIRECTION INPUT ENABLE INPUT (ACTIVE LOW) FAULT OUTPUT (ACTIVE LOW) DIRECTION OUTPUT COMMON TACH OUTPUT (12PPR) SPEED INPUT (0~5VDC) +5V (USE FOR SPEED POT ONLY) BRAKE INPUT (ACTIVE LOW) COMMON ALL COMMONS ARE INTERNALLY TIED TOGETHER.

Automatic Door Control System

Brushless DC motor (Explosion- Proof type) ONE STEP 220 1400 0.45 60 1400 4.2 1.2 9.5 2.0 TWO STEP 220 2040 0.7 90 2040 4.4 1.5 8 2.0 (V) (r/min) (A) (W) (r/min) (kgf-cm) (A) (kgf-cm) (A) • EXPLOSION PROOF TYPE : Ex d IIA T4 Performance curve Specification Standard Features Typical outline drawing Voltage MODEL NO. Speed Current Output Speed Torque Current Torque Current No Load Rated Load Stall Special

BLDC Motor with Electromagnetic Brake B606-20B0-EC1 24 2315 0.19 6 2054 0.292 0.451 5 5.4 Performance curve Specification Voltage Speed Current Output Speed Torque Current Torque Current (V) (r/min) (A) (W) (r/min) (kgf-cm) (A) (kgf-cm) (A) MODEL NO. No Load Rated Load Stall 6.4 5.6 4.8 4.0 3.2 2.4 1.6 0.8 0 2400 2100 1800 1500 1200 900 600 300 0 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 Kg.cm (A) (RPM) B606-20B0-EC1 Standard Features • Possible to assemble brake to BLDC Motor • When power is off, the load is maintained as same as before. • The frequent instantaneous directional changes are possible...
