- direct installation on the sensor - approaching flow to the sensor through RV1 - cleaning effect of RV1 is moderate, i. e. weak deposits on the electrodes will be removed, e. g. weak rust films - for a correct and proper operation of sensor with cleaning equipment RV1 flow chamber FLC-3 has to be used!! - Sensor can be upgraded at any time - Using with AS...-CL: => slope is approx. 3 times higher (see diagram “AS-Chlorine Sensor with and without RV1”) - Using with AS...-CD: => slope is approx. 2 times higher (Subject to technical changes.) (Subject to technical changes.)

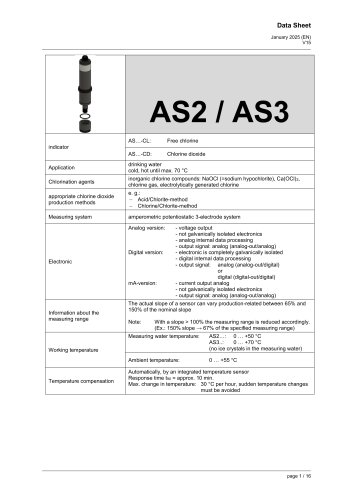

January 2025 (EN) V15 Technical Data A) Chlorine 1. AS - CL (analog output, analog internal signal processing) Galvanic isolation required in the measuring device/controller * PIN1: measuring signal PIN2: +U PIN3: power GND PIN4: signal GND PIN5: n. c. PIN1: measuring signal PIN2: +U PIN3: power GND PIN4: signal GND PIN5: n. c.

(Subject to technical changes!)

(Subject to technical changes!)

4. AS - CL 4-20 mA (analog output, analog internal signal processing)4.1 Electrical connection: 2 pole terminal clamp Measuring range Output resistance Voltage supply Galvanic isolation required in the measuring device/controller * Recommended: Round cable 0 4 mm 2 x 0.34 mm2 (Subject to technical changes!)

4.2 Electrical connection: 5 pole M12 plug-on flange (Subject to technical changes!)

B) Chlorine Dioxide1. AS - CD (analog output, analog internal signal processing) Galvanic isolation required in the measuring device/controller * PIN1: measuring signal PIN2: +U PIN3: power GND PIN4: signal GND PIN5: n. c. PIN1: measuring signal PIN2: +U PIN3: power GND PIN4: signal GND PIN5: n. c. (Subject to technical changes!)

(Subject to technical changes!)

(Subject to technical changes!)

4.1 Electrical connection: 2 pole terminal clamp (Subject to technical changes!)

4.2 Electrical connection: 5 pole M12 plug-on flange (Subject to technical changes!)

Data Sheet January 2025 (EN) V15 AS-Sensoren, relative pH-Abhängigkeit AS-sensors, relative dependence on pH Cl2

Data Sheet January 2025 (EN) V15 Sensor AS2 / AS3 Abhängigkeit vom Durchfluß, Dependence on the flow rate Durchflussarmatur, Flow Chamber: PEF1/E or Durchflußmenge, Flow rate (Liter/hours) (Subject to technical changes.)
