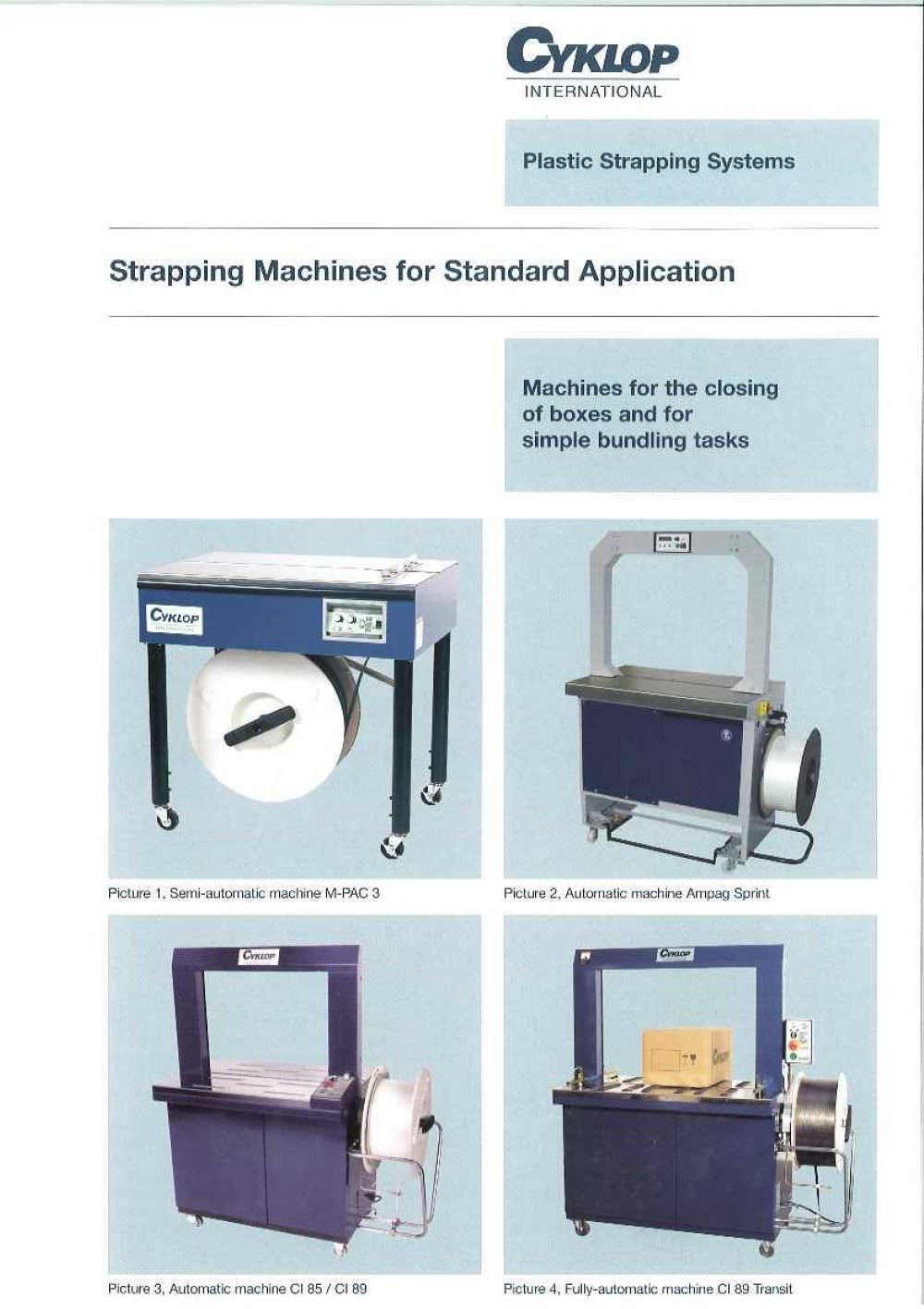

Cyklop INTERNATIONAL Plastic Strapping Systems Strapping Machines for Standard Application Machines for the closing of boxes and for simple bundling tasks Picture 1, Semi-automatic machine M-PAC 3 Pictute 2, Aulomallc machine Ampag Sprint Picture 3, Automatic machine Cl 85 / Cl 89 Picture 4, Fully-aulornatic machine Cl 89 Transit

Open the catalog to page 1

Programme of Machines The machine programme for standard applications at a glance Feld ol application Foulures Type Strapp width mm max. min. Framo width mm hight mm Speod' Tension N Power Supply wolght ka Blld Semi-automatic strapper. Machine tensions and seals. Strap teed via operalor. Univorsaf Itko a hand lool. indopondent of package slze M-Pac 3 M-Pac3 LQ 5,0 15,5 max. min. unlimited 70 30 10-20 cyclos/min/ 70-500 adiustablo 230/240 V 1- 50-60 Hz 0.4 kW 60 55 1 5 Automatic strappor. Strapping cycle is initiated by push-bulton. For paicels, packages, small bundles up to 20 kg weight....

Open the catalog to page 2

Programme of Machines (Dtails) Semi-automatic strapper M-Pac 3 Strap table = working area. Latge working area and maximum fool room. The sealing mechanism is located in the right side of the tabte in order to bist utilise the working surface of the table top. Easy to manoeuvre. Working height is adjustable. Automatic Cl 85 and Cl 89 strapper (See picture 3 on front page) Tension capacity can be set exactly to suit the package. Tension is externally adjustable. Strap is applied perfectly to the package. No twisting of strap. Machine op鯩ration is fast. Heat-up tira only 25 sec. 1,5 sec. for...

Open the catalog to page 3

Programme of Machines (Dtails) Fully-automatic strapper Ampag Sprint Transit Increased productivit Fast cycle speed and operatorless fonction make this rnodel id驩al for high volume fully-aulomalic packaging Unes. Belts in strapping table with direct drive by two spara te motars. Table bail drive is frequency-controlled therefore stcplossly ad|ustable. Pressure bar on request. The pressure bar is otfered as an option. Compressed air is required. Air connection 3/8 inches. Air consumption 240 N/min. r Fully automatic strapper Cl 89 Transit (See picture 4 on front page) Intgration into...

Open the catalog to page 4

If a standard machine does not meet your packaging needs, e.g. because you want to secure pallet loads. Tailor-made machines Because ihere are so many parameters to consider when unit toads are strapped standard machines would be out of place hre. Cyklop offers the idal solution: Machines in modular design. The modules arc comblned according lo individual requi-rements. The size of the strap arch d詩pends on the sizes ot the packages and is mounted accordingliy. Length and width ot the strap arch vary according to the number ot incrments of which the arch consists. This way the machine is...
