Cyklop Plastic Strapping Hand Tools

Cyklop Plastic Strapping Hand Tools
6Pages

Catalog excerpts

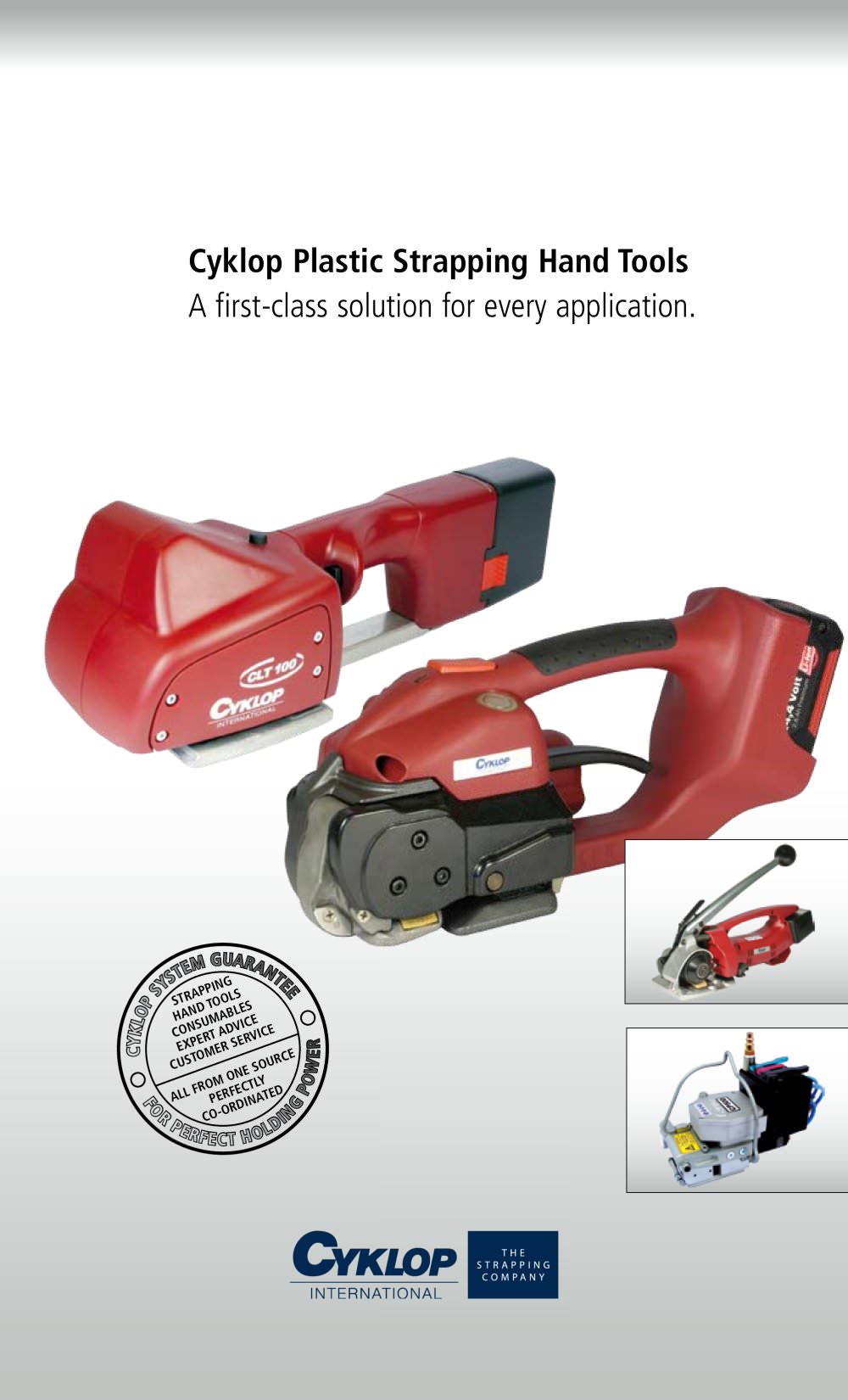

Cyklop Plastic Strapping Hand Tools A first-class solution for every application. Strapping HAND TOOLS consumables Expert advice Custo mer service Al from one source Perfectly co-ordinated for perfect holding POWER Cyklop System Guarantee

Open the catalog to page 1

Cyklop Hand Tool Programme The right tool for every application. What you should consider. Every company has different requirements which must be taken into consideration when choosing the right hand tool: Strapping volume „· Anyone who only straps a few or light packages daily can decide on an inexpensive manual hand-lever or battery-powered tool, such as the Cyklop CMT 50. „· Anyone who has lots of strapping to do is well-advised to use a tool that operates fully-automatically, always precisely producing the set tensioning force and combining easy operation with outstanding work...

Open the catalog to page 2

Cyklop CLT 100 Plenty of comfort for universal applications. For the majority of strapping operations a tensioning force of up to 1,000 N is quite sufficient. In this segment the battery-powered CLT 100 with its operating advantages can hardly be beaten and is particularly suitable in those cases where there is no “specialist” employed for the strapping of loads. The tool is very convenient – it even makes single-handed operation possible – and can process various strap widths and thicknesses. The high-quality friction seal and the fullyautomatic sealing mode guarantee rational and...

Open the catalog to page 3

Cyklop CMT 250 / CHT 400 For medium-weight and heavy packages. Technical data Weight: 3.9 kg (incl. battery) 4.2 kg (incl. battery) Dimensions (LxBxH): 334 x 138 x 148 mm 334 x 138 x 148 mm Tensioning force: (0) 900 - 2,500 N (0) 1,200 - 4,000 N Soft: (0) 400 - 1,500 N (0) 400 - 1,600 N Friction weld seal Friction weld seal Insertion: Strap on strap Strap on strap Straps Types of strap: Polyester (PET) and Polypropylene (PP) Strap width: 12 - 16 mm 16 - 19 mm Strap thickness: 0.5 - 1.0 mm (1.12 mm) 0.8 - 1.3 mm Battery technical data Li-Ion-Battery (Bosch): 14.4 V / 2.6 Ah 18 V / 2.6 Ah...

Open the catalog to page 4

Cyklop CP 500 The small pneumatic tool with lots of POWER. The pneumatic hand tool CP 500 can hardly be beaten and is ideal for companies that have to pack heavy goods and strap them on strapping stations ready for despatch. The unique construction allows a high tension force of up to 5,000 N* with continuously high retaining strength thus keeping the load secure until it reaches its destination. Cyklop CE 92 Electric. The CE 92 is a universal hand tool for mains operation and is suitable for strapping both flat and round packages. The strap seal is provided by means of a high-quality...

Open the catalog to page 5

CYKLOP GmbH Industriestr. 133 Rodenkirchen 50996 Cologne Germany Telephone: ++ 49 (0)2236 / 602-0 Fax: ++ 49 (0)2236 / 602-578 (Sales) Fax: ++ 49 (0)2236 / 602-228 (Export sales) info@cyklop.com www.cyklop.com P.O. Box 50 12 20 50972 Cologne The right to make technical changes is reserved. © Cyklop GmbH, Köln, Protectory notice persuant to ISO 16016 to be observed. 90001089/04.2010 PET/PP-Straps Supplementary Equipment Strap Dispenser „· The plastic strap can be very easily rolled off using the Cyklop strap dispenser „· The strapping cycle can be completed quickly and efficiently „· The...

Open the catalog to page 6
