Automatic high-performance film wrapper "Delta 2000"
Automatic high-performance film wrapper "Delta 2000"
- Top film layer is pulled with minimal force to prevent pile slipping.
- Bottom film supply is synchronized with the bundle size.
- Bundles are held in a vacuum to prevent slipping during acceleration.
- Optional side sealing system can be integrated without additional space.
- Servo drive for high-speed and precise sealing.
- Frequency controlled conveyor for integration into existing lines.
- Touchscreen operation with clear text display for machine status and faults.
- Designed for reduced maintenance and operational costs.
- Performance: Up to 40 bundles per minute, with cross- and lengthwise sealing.
- Bundle Sizes: Width 200-500 mm, Length 200-480 mm, Height up to 480 mm.
- Bundle Weight: Maximum 25 kg.
- Film: PE, thickness 12-40 microns, width 250-550 mm, coil diameter up to 400 mm.
- Sealing Method: Thermo sealing bar with film cutter, optional hot air jet for side sealing.
- Electrics: 400 V / 50 Hz / 3 Ph / N / PE, Wattage: 11 kW with side sealing, 8 kW without.
- Pneumatics: Air connection 1/4", consumption 0.5 NL per cycle, 140 NL/min at 40 cycles.
- Conveyor System: Frequency controlled belt drive, variable speed 0.2 to 1.0 m/sec.
- Total Weight: Approximately 700 kg.
- Measurements: Various dimensions provided for different parts of the machine.
- Color: Frame RAL 7004, Covering panel RAL 5003, other RAL colors available on request.
Catalog excerpts

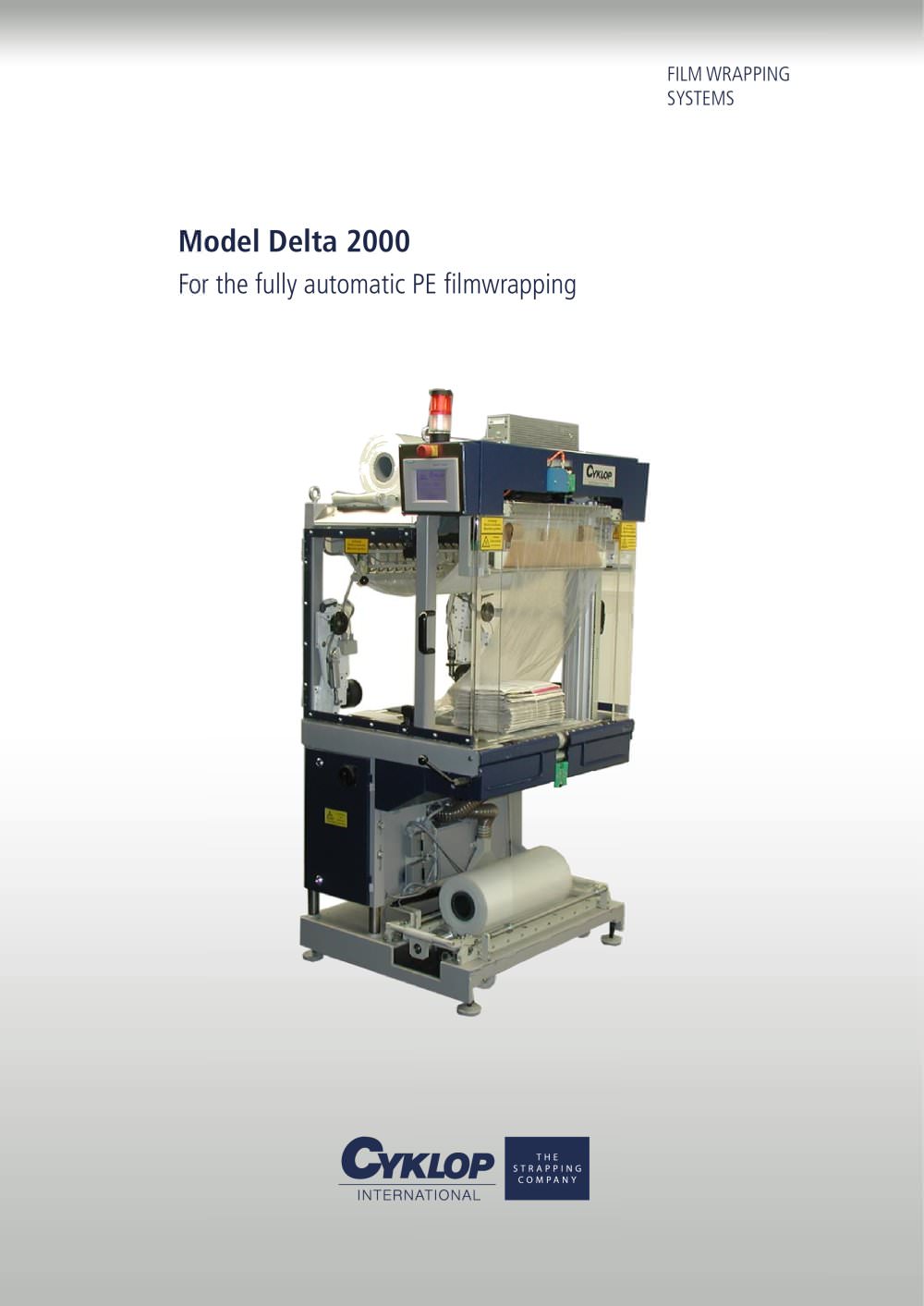

Model Delta 2000 FILM WRAPPING SYSTEMS For the fully automatic PE filmwrapping
Open the catalog to page 1
• The bundles pull the top film layer from the film reservoir with hardly any force, thus preventing the piles slipping. • The supply of the bottom film is synchronized with the incoming bundle, providing just as much film as the bundle requires. • During the entire transit and sealing process the bundle is held in a vacuum. The bundle cannot slip during the acceleration phases. • The side sealing system can be integrated. No space is needed for a second machine. The side sealing system can be upgraded any time as an option. • Servo drive for sealing unit achieving high-speed and exact processing....
