Catalog excerpts

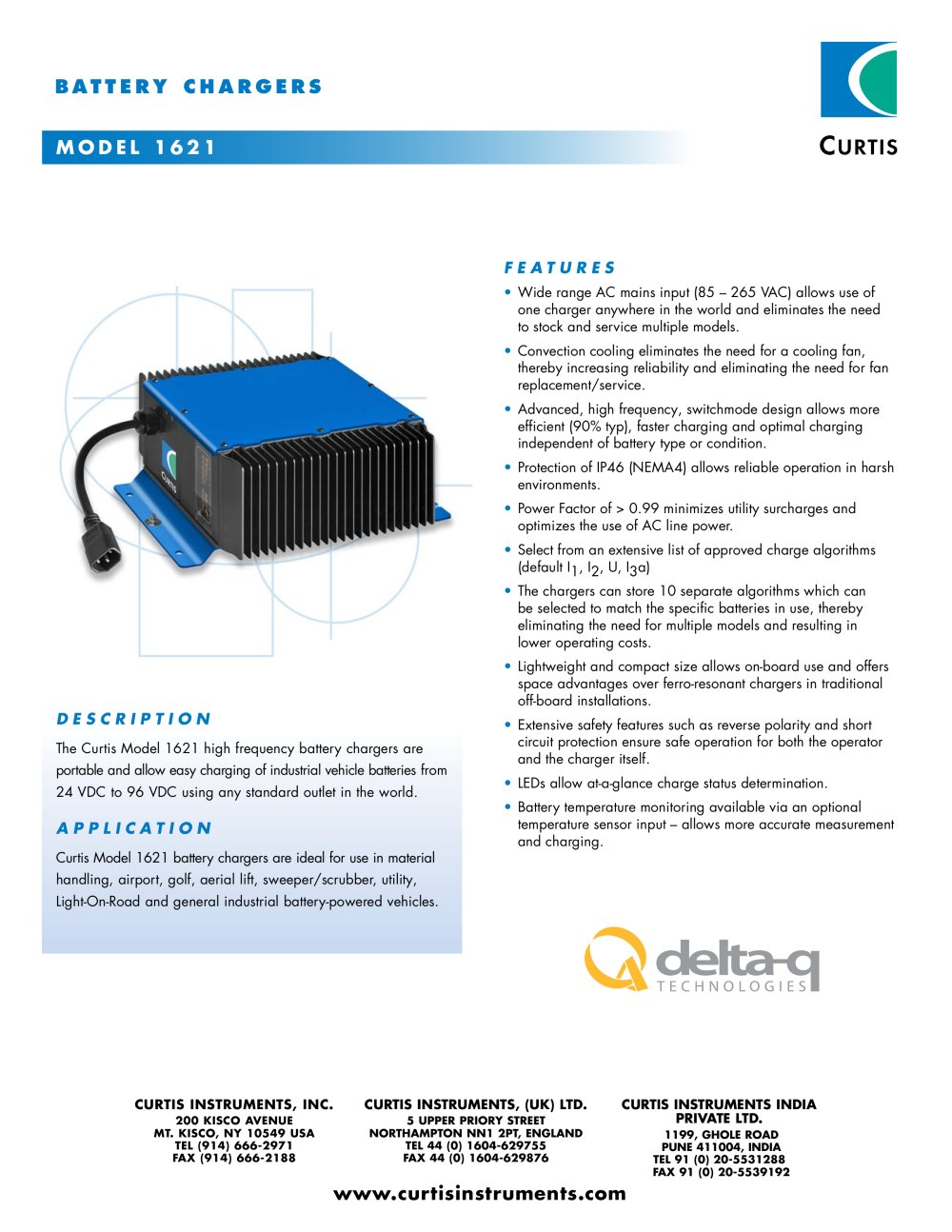

Wide range AC mains input (85 Ֆ 265 VAC) allows use of one charger anywhere in the world and eliminates the need to stock and service multiple models. Convection cooling eliminates the need for a cooling fan, thereby increasing reliability and eliminating the need for fan replacement/service. Օ Advanced, high frequency, switchmode design allows more efficient (90% typ), faster charging and optimal charging independent of battery type or condition. Protection of IP46 (NEMA4) allows reliable operation in harsh environments. Օ Power Factor of > 0.99 minimizes utility surcharges and optimizes the use of AC line power. Select from an extensive list of approved charge algorithms (default I1, I2, U, I3a) Օ The chargers can store 10 separate algorithms which can be selected to match the specific batteries in use, thereby eliminating the need for multiple models and resulting in lower operating costs. Lightweight and compact size allows on-board use and offers space advantages over ferro-resonant chargers in traditional off-board installations. > Օ Extensive safety features such as reverse polarity and short circuit protection ensure safe operation for both the operator and the charger itself. The Curtis Model 1621 high frequency battery chargers are portable and allow easy charging of industrial vehicle batteries from 24 VDC to 96 VDC using any standard outlet in the world. LEDs allow at-a-glance charge status determination. Օ Battery temperature monitoring available via an optional temperature sensor input allows more accurate measurement and charging. > Curtis Model 1621 battery chargers are ideal for use in material handling, airport, golf, aerial lift, sweeper/scrubber, utility, Light-On-Road and general industrial battery-powered vehicles. > CURTIS INSTRUMENTS, INC. CURTIS INSTRUMENTS, (UK) LTD. CURTIS INSTRUMENTS INDIA PRIVATE LTD. 200 KISCO AVENUE MT. KISCO, NY 10549 USA TEL (914) 666-2971 FAX (914) 666-2188 5 UPPER PRIORY STREET NORTHAMPTON NN1 2PT, ENGLAND TEL 44 (0) 1604-629755 FAX 44 (0) 1604-629876 1199, GHOLE ROAD PUNE 411004, INDIA TEL 91 (0) 20-5531288 FAX 91 (0) 20-5539192
Open the catalog to page 1Special Features Battery Temperature Monitoring Temperature Sensor on negative ring terminal External Communications PC-based configuration software for field programmability Operation Options > Regulatory AC ON Solid YELLOW AC LED >80% Charge Indicator Solid YELLOW Charge LED 100% Charge Indicator Solid GREEN Finish LED Fault Indicator Flash RED Fault LED DC Ammeter LED Bargraph (6 level) Long-term Storage Mode Auto-restart if battery voltage < 2.1 V/cell or 30 days elapse Custom Remote LEDsՕ MODBUS Serial Communications OEM Specific DC Output Cord Օ Localized AC Input Cord Reverse or Dry...
Open the catalog to page 2AC INPUT:IEC 320 FEMALE CONNECTOR > 7.00.2TYP 185ѱ30 CLM4 (4mm) GROUNDING STUD > 125 246 7.0ر0.2 TYP 9.00.2 260 9.0ѱ0.2 278 REF MX150L 10-PIN 18A LOW-PROFILE PCB HEADER W/GASKET > 2 109 M4 (4mm)GROUNDING STUD (REF) > 111 REF Relay NORelay COMRelay NCTemp Sense +Battery POS (+)Remote LED -Remote LED +N/ABattery NEG (-)Temp Sense - 54321109876 CHARGERDC OUTPUT 246 REF >
Open the catalog to page 3is a trademark of Curtis Instruments, Inc. Specifications subject to change without notice50164 REV C 7/082008 Curtis Instruments, Inc. >
