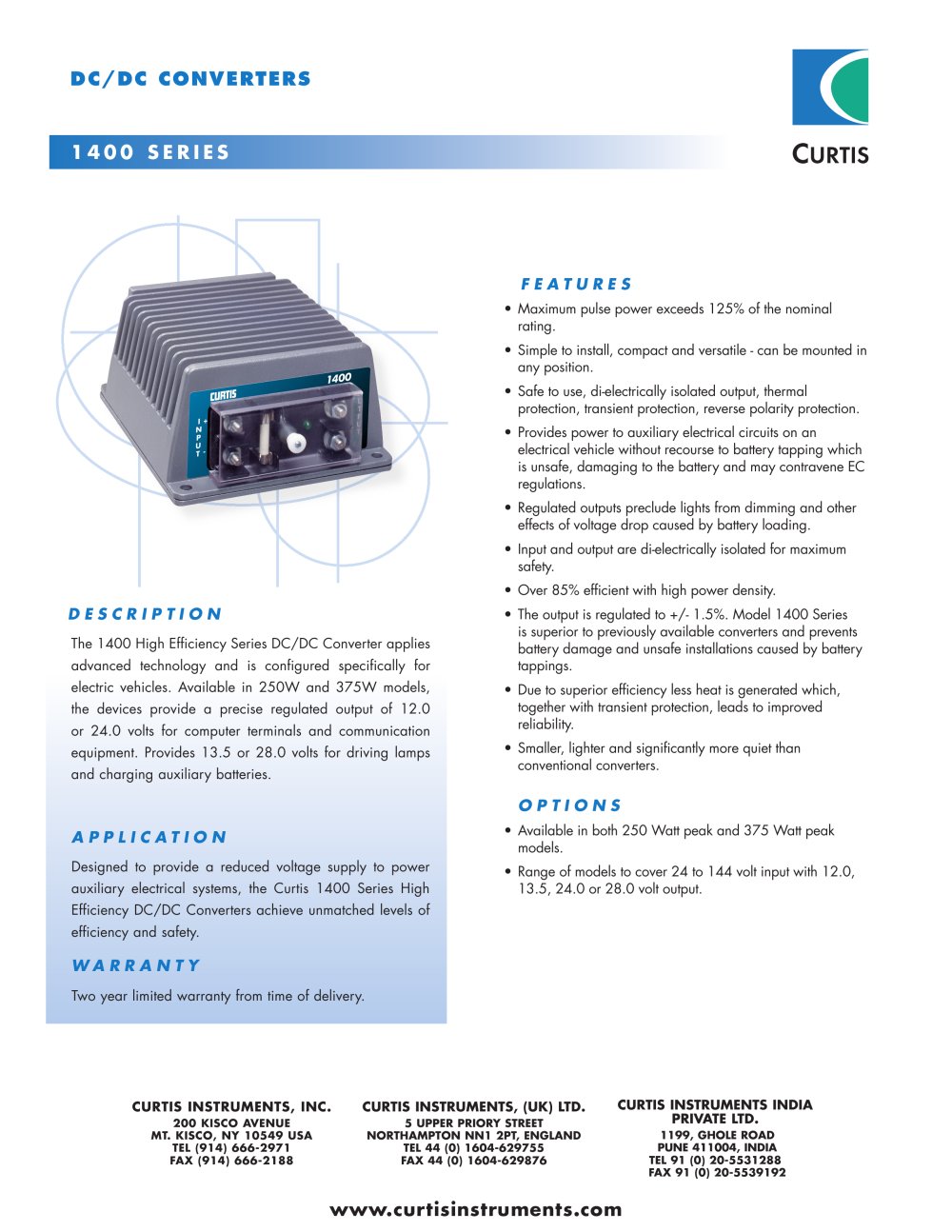

FEATURES > Maximum pulse power exceeds 125% of the nominal rating.Օ Simple to install, compact and versatile - can be mounted in any position. Safe to use, di-electrically isolated output, thermal protection, transient protection, reverse polarity protection.Օ Provides power to auxiliary electrical circuits on an electrical vehicle without recourse to battery tapping which is unsafe, damaging to the battery and may contravene EC regulations. Regulated outputs preclude lights from dimming and other effects of voltage drop caused by battery loading.Օ Input and output are di-electrically isolated for maximum safety. Over 85% efficient with high power density. Օ The output is regulated to +/- 1.5%. Model 1400 Series is superior to previously available converters and prevents battery damage and unsafe installations caused by battery tappings. Due to superior efficiency less heat is generated which, together with transient protection, leads to improved reliability.Օ Smaller, lighter and significantly more quiet than conventional converters. DESCRIPTION > The 1400 High Efficiency Series DC/DC Converter applies advanced technology and is configured specifically for electric vehicles. Available in 250W and 375W models, the devices provide a precise regulated output of 12.0 or 24.0 volts for computer terminals and communication equipment. Provides 13.5 or 28.0 volts for driving lamps and charging auxiliary batteries. OPTIONS APPLICATION > Available in both 250 Watt peak and 375 Watt peak models.Օ Range of models to cover 24 to 144 volt input with 12.0, 13.5, 24.0 or 28.0 volt output. Designed to provide a reduced voltage supply to power auxiliary electrical systems, the Curtis 1400 Series High Efficiency DC/DC Converters achieve unmatched levels of efficiency and safety. WARRANTY > Two year limited warranty from time of delivery. CURTIS INSTRUMENTS, INC. CURTIS INSTRUMENTS, (UK) LTD. CURTIS INSTRUMENTS INDIA PRIVATE LTD. 200 KISCO AVENUE MT. KISCO, NY 10549 USA TEL (914) 666-2971 FAX (914) 666-2188 5 UPPER PRIORY STREET NORTHAMPTON NN1 2PT, ENGLAND TEL 44 (0) 1604-629755 FAX 44 (0) 1604-629876 1199, GHOLE ROAD PUNE 411004, INDIA TEL 91 (0) 20-5531288 FAX 91 (0) 20-5539192
Open the catalog to page 11400 E 1410 EMaximum Peak Power 375W 250W Nominal Power Rating 300W 200W Isolated Yes Yes Frequency 60KHz 60KHz Input Voltages available 24/36; 48/60; 72/96; 120/140 36/48; 72/96 Output Voltage 12V; 13.5V; 24V; 28V 12V; 13.5V; 24V; 28V Current Limit @ 12V 30A 20A Nominal Current Output (1 hr. rating) 25A 15A Current Limit @ 24V 15A 10A Nominal Current Output (1 hr. rating) 12.5A 7.5A Output Voltage Regulation +/- 1.5% +/- 1.5% Output voltage ripple <1% <2.5% Input voltage 65% to 115% of nominal 65% to 115% of nominal Output short circuit protection Yes Yes Input Reverse polarity protection...
