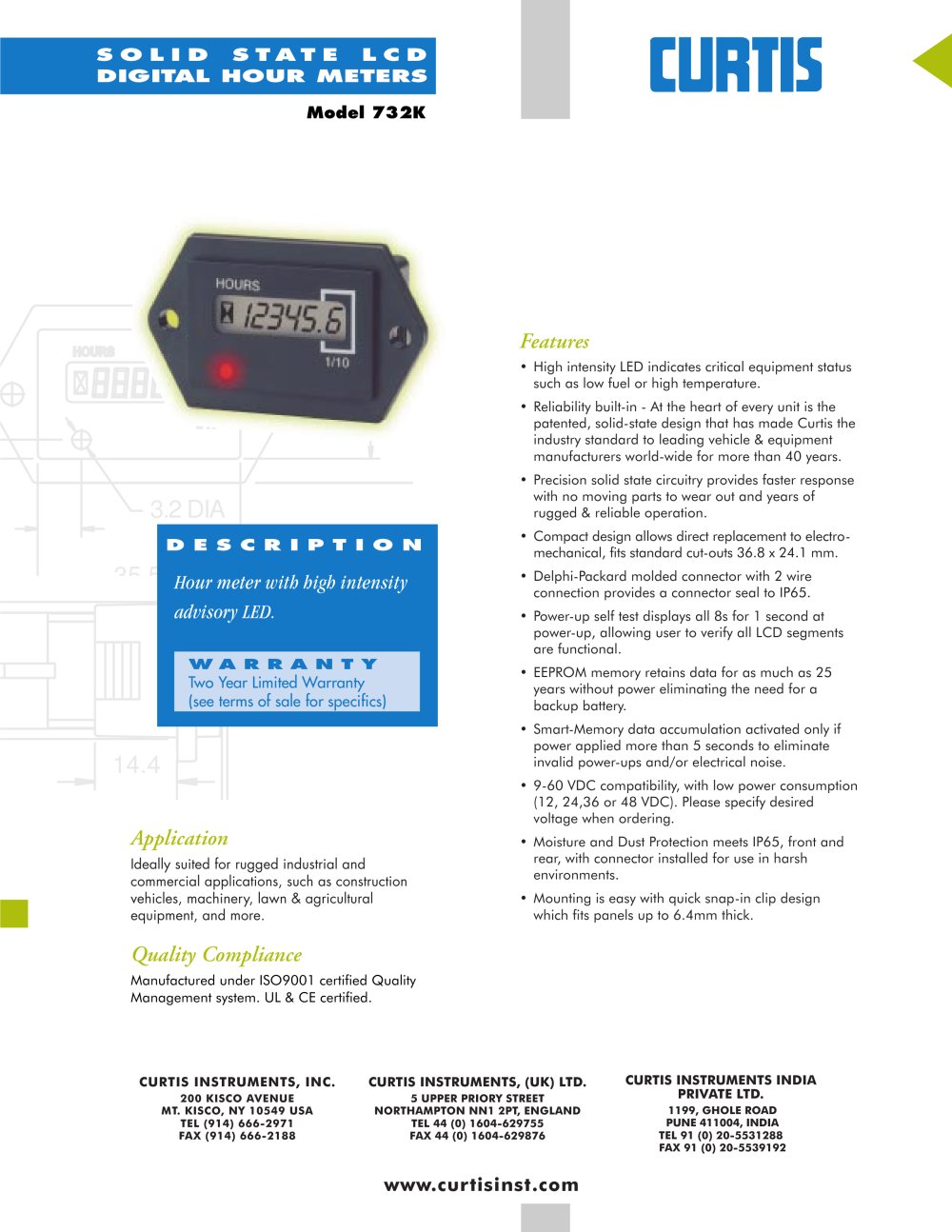

High intensity LED indicates critical equipment statussuch as low fuel or high temperature.ՕReliability built-in - At the heart of every unit is thepatented, solid-state design that has made Curtis the industry standard to leading vehicle & equipment manufacturers world-wide for more than 40 years.Precision solid state circuitry provides faster responsewith no moving parts to wear out and years of rugged & reliable operation.ՕCompact design allows direct replacement to electro-mechanical, fits standard cut-outs 36.8 x 24.1 mm. Delphi-Packard molded connector with 2 wireconnection provides a connector seal to IP65.ՕPower-up self test displays all 8s for 1 second atpower-up, allowing user to verify all LCDsegments are functional.EEPROM memory retains data for as much as 25years without power eliminating the need for a backup battery.ՕSmart-Memory data accumulation activated only ifpower applied more than 5 seconds to eliminate invalid power-ups and/or electrical noise.9-60 VDC compatibility, with low power consumption(12, 24,36 or 48 VDC). Please specify desired voltage when ordering.ՕMoisture and Dust Protection meets IP65, front andrear, with connector installed for use in harsh environments.Mounting is easy with quick snap-in clip designwhich fits panels up to 6.4mm thick. > Ideally suited for rugged industrial andcommercial applications, such as construction vehicles, machinery, lawn & agricultural equipment, and more. > Manufactured under ISO9001 certified Quality Management system. UL & CE certified. > CURTIS INSTRUMENTS, INC. CURTIS INSTRUMENTS, (UK) LTD. CURTIS INSTRUMENTS INDIA PRIVATE LTD. 200 KISCO AVENUEMT. KISCO, NY 10549 USATEL (914) 666-2971FAX (914) 666-2188 5 UPPER PRIORY STREETNORTHAMPTON NN1 2PT, ENGLANDTEL 44 (0) 1604-629755FAX 44 (0) 1604-629876 1199, GHOLE ROADPUNE 411004, INDIATEL 91 (0) 20-5531288FAX 91 (0) 20-5539192
