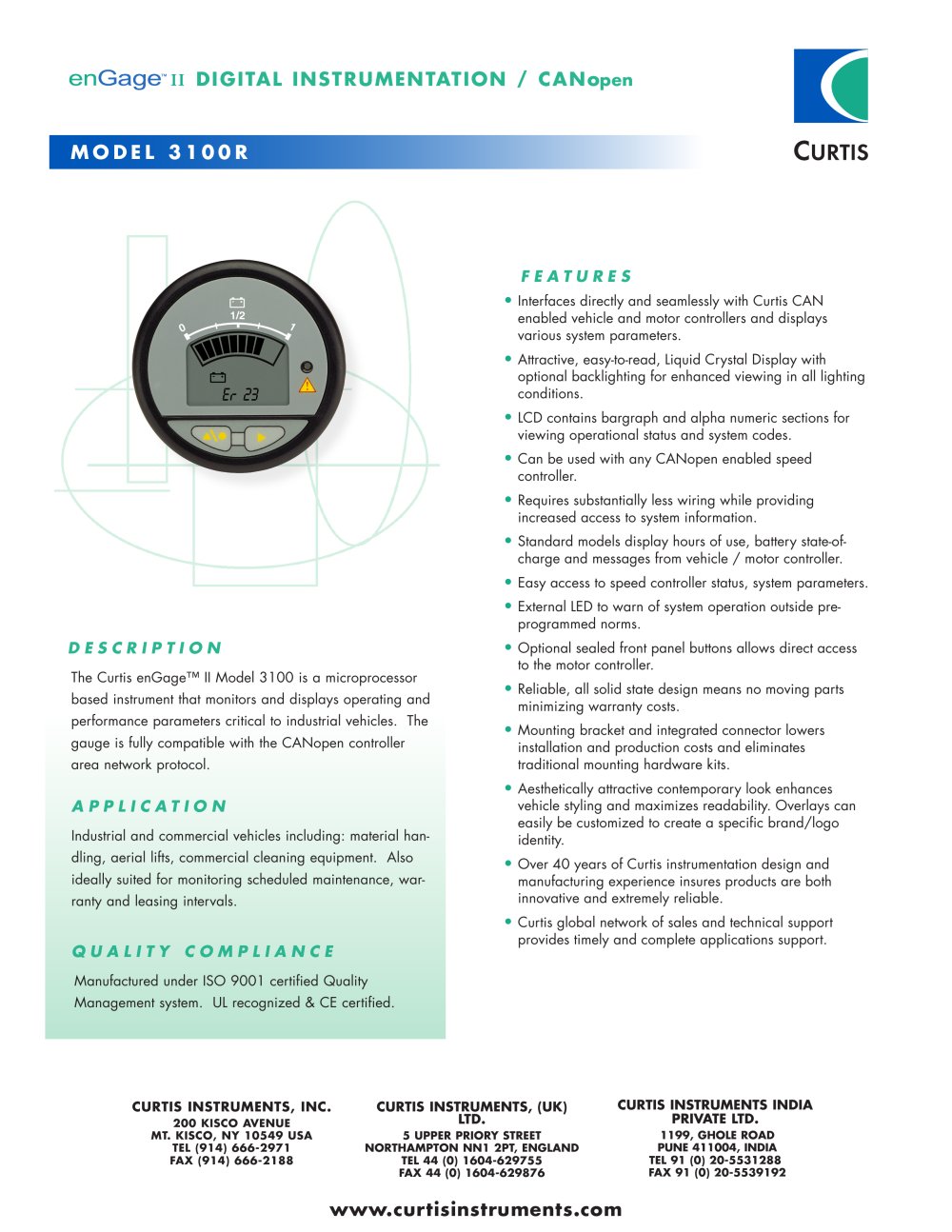

FEATURES s > Interfaces directly and seamlessly with Curtis CAN enabled vehicle and motor controllers and displays various system parameters. s > Attractive, easy-to-read, Liquid Crystal Display with optional backlighting for enhanced viewing in all lighting conditions. s > LCD contains bargraph and alpha numeric sections for viewing operational status and system codes. s > Can be used with any CANopen enabled speed controller. s > Requires substantially less wiring while providing increased access to system information. s > Standard models display hours of use, battery state-of-charge and messages from vehicle / motor controller. s > Easy access to speed controller status, system parameters. s > External LED to warn of system operation outside pre-programmed norms. DESCRIPTION s > Optional sealed front panel buttons allows direct access to the motor controller. The Curtis enGage II Model 3100 is a microprocessor based instrument that monitors and displays operating and performance parameters critical to industrial vehicles. The gauge is fully compatible with the CANopen controller area network protocol. s > Reliable, all solid state design means no moving parts minimizing warranty costs. s > Mounting bracket and integrated connector lowers installation and production costs and eliminates traditional mounting hardware kits. s > Aesthetically attractive contemporary look enhances vehicle styling and maximizes readability. Overlays can easily be customized to create a specific brand/logo identity. APPLICATION > Industrial and commercial vehicles including: material han- dling, aerial lifts, commercial cleaning equipment. Also ideally suited for monitoring scheduled maintenance, war- ranty and leasing intervals. s > Over 40 years of Curtis instrumentation design and manufacturing experience insures products are both innovative and extremely reliable. s > Curtis global network of sales and technical support provides timely and complete applications support. QUALITY COMPLIANCE > Manufactured under ISO 9001 certified Quality Management system. UL recognized & CE certified. CURTIS INSTRUMENTS, INC. CURTIS INSTRUMENTS, (UK) LTD. CURTIS INSTRUMENTS INDIA PRIVATE LTD. 200 KISCO AVENUE MT. KISCO, NY 10549 USA TEL (914) 666-2971 FAX (914) 666-2188 5 UPPER PRIORY STREET NORTHAMPTON NN1 2PT, ENGLAND TEL 44 (0) 1604-629755 FAX 44 (0) 1604-629876 1199, GHOLE ROAD PUNE 411004, INDIA TEL 91 (0) 20-5531288 FAX 91 (0) 20-5539192
Open the catalog to page 158.5MAX 60.0 53.6 MAX SEE NOTE 1 PIN #FUNCTION1234B-B+CAN HICAN LO 46.0 MAX -+ 1/2 1 51.5MAX LabelMounting BracketLabel 2143 6.3 MAX NOTES:1.0 MATING CONNECTOR; 4-PIN AMP P/N 794805-1 WITH UL RATING 94V-0, INTERFACE SEAL P/N 794772-4, WIRE SEAL 794758-1, PINS P/N 770904-X FOR #18-24 AWG 2.0 52mm METER IS PROVIDED IN A STANDARD ROUND PACKAGE FOR MOUNTING IN A 52mm DIA DASH PANEL HOLE. SEE DETAIL FOR PANEL CUTOUT WITH KEY.3.0 MATERIAL: CASE - POLYCARBONATE, LENS - CLEAR POLYMETHYLMETHACRYLAT (PMMA), COVER - POLYCARBONATE, OVERLAY - POLYCARBONATE, MOUNTING BRACKET - POLYCARBONATE.4.0 THIS UNIT...
