This document is the CUMSA General Catalogue from October 2005, showcasing new products developed by the R&D department. It aims to offer customers time and cost advantages in mold installation, manufacture, and use. The company has also enhanced its website for detailed product information and online ordering.
- Mini Guide: Made from material 1.2510, hardened to 52/56HRC, with a patented system including an angle pin and pressure regulator.
- Mini Slide: Made from material 1.2344, hardened to 42/45HRC, ready to machine with adjustment tolerances.
- Mini Base: Made from material 1.2510, hardened to 52/56HRC, offering various assembly possibilities.
- Heel Unit - SET: Includes an angle pin and standard stroke, adjustable with a hex key.
- Adjusted Slide: Interchangeable and fully adjusted, requiring only part detail machining.
- Slide Base: Hardened and ground, with a magnetic retainer for slide movement.
- Position and fix the Mini Base, insert the Magnetic Retainer, position the Mini Slide, and adjust with the mold closed.
- For the Slide Base, position and fix it, insert the Magnetic Retainer, position the Adjusted Slide, and adjust with the mold closed.
All parts are available in 2D and 3D file formats. The latest product versions are on the CUMSA website. Customer feedback is encouraged for service improvement.
CUMSA thanks its customers for their trust and collaboration in product development, committing to continuous improvement and customer satisfaction.
This technical catalog from CUMSA, dated October 2005, details components and systems for mold making and injection processes, including specifications, materials, and installation instructions.
The catalog provides detailed specifications for each product, including dimensions, materials, and mechanical properties. For example, the Angle Pin Housing is made from material 1.2312 with a strength of approximately 1080 N/mm² and is available in angles of 15° and 20°.
Instructions for ordering include indicating the desired dimension or angle. Installation and assembly instructions emphasize correct alignment and specific tools and fasteners.
- Modular Retainer: Used for molds requiring delayed opening, with resistance values for different configurations.
- Latch Lock: Designed for molds with two-step openings, featuring a graduated scale for selecting the first opening.
- Coring Unit: Mechanism for making lateral holes with automatic retention, requiring minimal installation space.
- Slide Retainer: Easy to install and access, with approximate force values for release.
- Cooling Kit: Allows cooling of the undercut insert to optimize injection cycle time, with specific installation instructions.
Various materials are used across components, such as 1.8159 hardened to 45 ± 3HRC for the Modular Retainer and 1.2510 hardened to 56 ± 2HRC for the Automatic Retainer.
Detailed fitting instructions include the use of PTFE tape for sealing and respecting minimum dimensions during assembly.
The document includes contact details for CUMSA, located in Sant Just Desvern, Barcelona, Spain.
- Magnetic Support: Utilizes high magnetic force with a silicon hoop for holding drawings.
- Mini Screwdriver: Precision tool for Mini Daters.
- Trimming Knife: Features a ceramic blade for finishing injected parts.
- Cable Retainer: Uses magnets to organize cables without additional drilling.
- Standard Lifter: Compact unit for releasing small undercuts with vertical movement.
- Housing Lifter: Designed for automotive industry, releases undercuts with minimal ejector stroke.
- Double Date Stamp: Allows marking of two different indications, reducing space and cost.
Special lengths and engravings are available upon request. The document recommends specific machining and installation practices to optimize product performance.
The document highlights ongoing efforts to provide new solutions, indicating a commitment to innovation and customer satisfaction.
Catalog excerpts

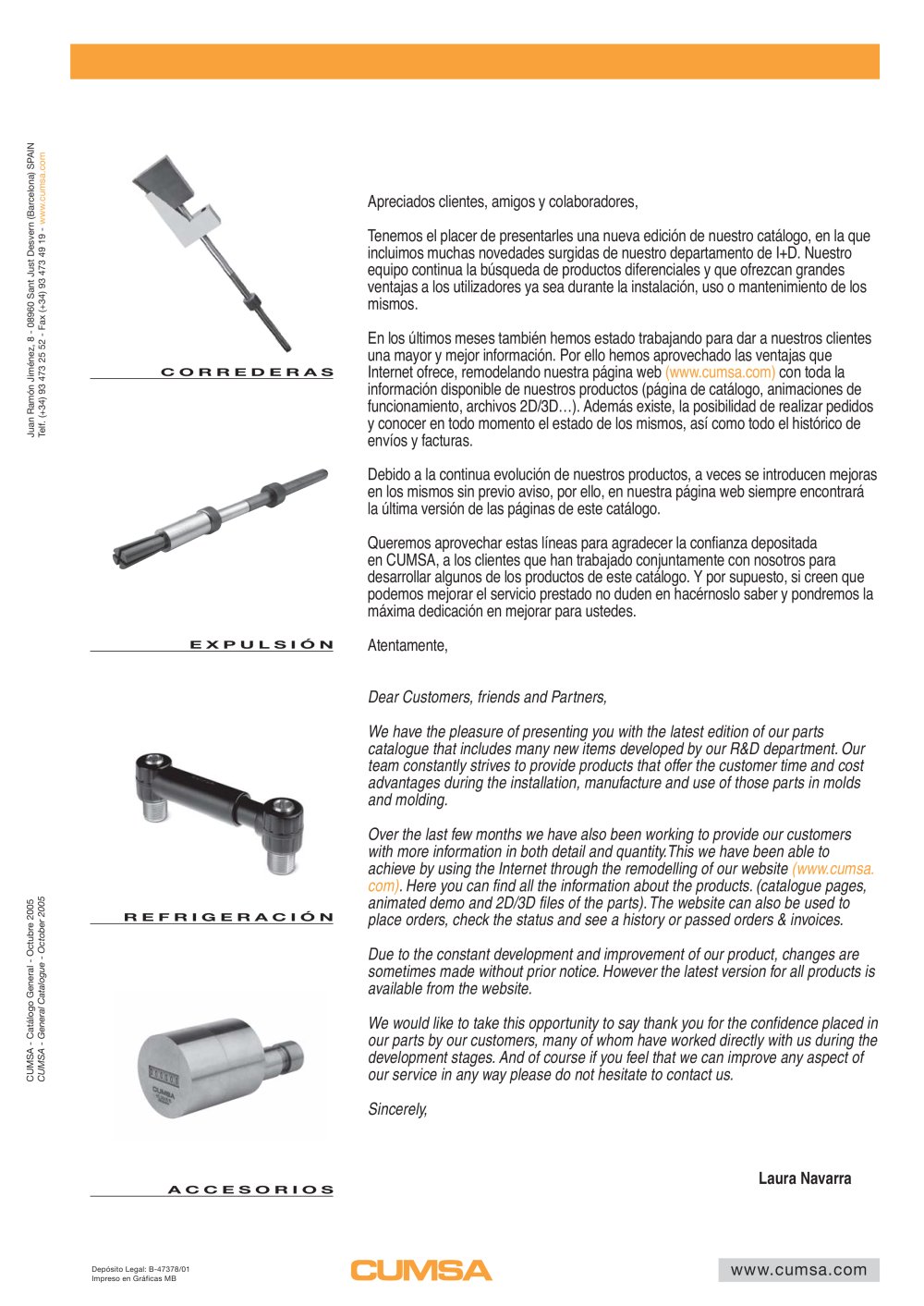

Apreciados clientes, amigos y colaboradores,Tenemos el placer de presentarles una nueva edicin de nuestro catlogo, en la que incluimos muchas novedades surgidas de nuestro departamento de I+D. Nuestro equipo continua la b㡺squeda de productos diferenciales y que ofrezcan grandes ventajas a los utilizadores ya sea durante la instalacin, uso o mantenimiento de los mismos.En los ltimos meses tambi㺩n hemos estado trabajando para dar a nuestros clientes una mayor y mejor informacin. Por ello hemos aprovechado las ventajas que Internet ofrece, remodelando nuestra pgina web (www.cumsa.com) con toda la informaci㡳n disponible de nuestros productos (pgina de catlogo, animaciones de funcionamiento, archivos 2D/3Dᡅ). Adems existe, la posibilidad de realizar pedidos y conocer en todo momento el estado de los mismos, as como todo el hist᭳rico de envos y facturas.Debido a la continua evolucin de nuestros productos, a veces se introducen mejoras en los mismos sin previo aviso, por ello, en nuestra pgina web siempre encontrar la ltima versiẳn de las pginas de este catlogo.Queremos aprovechar estas lᡭneas para agradecer la confianza depositada en CUMSA, a los clientes que han trabajado conjuntamente con nosotros para desarrollar algunos de los productos de este catlogo. Y por supuesto, si creen que podemos mejorar el servicio prestado no duden en hacrnoslo saber y pondremos la mᩡxima dedicacin en mejorar para ustedes.Atentamente, Dear Customers, friends and Partners,We have the pleasure of presenting you with the latest edition of our parts catalogue that includes many new items developed by our R&D department. Our team constantly strives to provide products that offer the customer time and cost advantages during the installation, manufacture and use of those parts in molds and molding.Over the last few months we have also been working to provide our customers with more information in both detail and quantity.This we have been able to achieve by using the Internet through the remodelling of our website (www.cumsa.com). Here you can find all the information about the products. (catalogue pages, animated demo and 2D/3D files of the parts). The website can also be used to place orders, check the status and see a history or passed orders & invoices.Due to the constant development and improvement of our product, changes are sometimes made without prior notice. However the latest version for all products is available from the website.We would like to take this opportunity to say thank you for the confidence placed in our parts by our customers, many of whom have worked directly with us during the development stages. And of course if you feel that we can improve any aspect of our service in any way please do not hesitate to contact us.Sincerely, > CORREDERAS Juan Ramn Jim㳩nez, 8 - 08960 Sant Just Desvern (Barcelona) SPAIN Telf. (+34) 93 473 25 52 - Fax (+34) 93 473 49 19 - www.cumsa.com Laura Navarra > EXPULSIN REFRIGERACIӓN ACCESORIOS CUMSA - Catlogo General - Octubre 2005 CUMSA - General Catalogue - October 2005 Depsito Legal: B-47378/01 Impreso en Gr᳡ficas MB www.cumsa.com >
