QSF2.8 Folded Brochure

QSF2.8 Folded Brochure
6Pages

Catalog excerpts

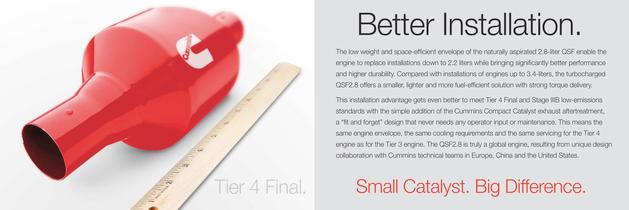

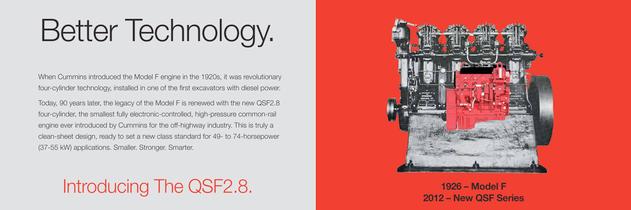

Bulletin 4087245 Printed in U.S.A. 4/12 ©2012 Cummins Inc. Twitter.com/CumminsEngines YouTube.com/CumminsEngines Phone: 1-800-DIESELS™ (1-800-343-7357) Fax: 1-800-232-6393 Internet: cumminsengines.com Cummins Inc. Box 3005 Columbus, IN 47202-3005 U.S.A. Better Technology. When Cummins introduced the Model F engine in the 1920s, it was revolutionary four-cylinder technology, installed in one of the first excavators with diesel power. Today, 90 years later, the legacy of the Model F is renewed with the new QSF2.8 four-cylinder, the smallest fully electronic-controlled, high-pressure common-rail engine ever introduced by Cummins for the off-highway industry. This is truly a clean-sheet design, ready to set a new class standard for 49- to 74-horsepower (37-55 kW) applications. Smaller. Stronger. Smarter. Introducing The QSF2.8. 1926 – Model F 2012 – New QSF Series Better Installation. The low weight and space-efficient envelope of the naturally aspirated 2.8-liter QSF enable the engine to replace installations down to 2.2 liters while bringing significantly better performance and higher durability. Compared with installations of engines up to 3.4-liters, the turbocharged QSF2.8 offers a smaller, lighter and more fuel-efficient solution with strong torque delivery. This installation advantage gets even better to meet Tier 4 Final and Stage IIIB low-emissions standards with the simple addition of the Cummins Compact Catalyst exhaust aftertreatment, a “fit and forget” design that never needs any operator input or maintenance. This means the same engine envelope, the same cooling requirements and the same servicing for the Tier 4 engine as for the Tier 3 engine. The QSF2.8 is truly a global engine, resulting from unique design collaboration with Cummins technical teams in Europe, China and the United States. Tier 4 Final. Small Catalyst. Big Difference. Better Performance. The QSF2.8 is built with exceptional strength, ready for the toughest applications in the industry. A cast-iron, sculptured block reduces torsional vibration, and the power cylinder is designed with the same peak-pressure capability as Cummins powerful QSB4.5 engine. The QSF2.8 also takes a design lead from the proven QSB4.5, with a high-efficiency rear gear train providing superior mounting stiffness and a reduction in gear noise. While the 2.8-liter architecture incorporates many features associated with higher-displacement engines, the wet weight is remarkably low at just 507 pounds (230 kg) due to the innovative use of high-strength composite materials for features such as the valve cover. The engine is not only stronger, but also smarter. Cummins electronic control system drives the High Pressure Common Rail (HPCR) system to enable multiple injection events with cleaner, more fuel-efficient combustion. The system continuously monitors all key engine parameters and automatically optimizes performance. 49-74 Horsepower High Power. Low Weight.

Open the catalog to page 1

Open the catalog to page 2

Open the catalog to page 3

Open the catalog to page 4

Better. In Every Dimension. ™ Low-Mount Turbo Option Every Inch A Cummins. The QSF2.8 brings the premium-performance Engine Model Rated hp (kW) Peak Torque lb-ft (N•m) Wet Weight QSF2.8 Naturally Aspirated 49 (37) 118 (160) 507 lb (230 kg) below 75 hp (56 kW) for the first time. From weight QSF2.8 Naturally Aspirated 65 (48) 118 (160) 507 lb (230 kg) savings to envelope size to engine response, the QSF2.8 Turbocharged 74 (55) 221 (300) 514 lb (233 kg) QSF2.8 is better. In every dimension. capability of larger Cummins electronic engines to Specifications apply to both Tier 3/Stage IIIA and...
