temperature test chamber
1 / 2 PagesView full catalog
temperature test chamber
Product catalog summary
Overview: The document describes the latest generation of CTS Temperature Test Chambers, highlighting their innovative techniques and future-oriented design. The product line 'T' features a multicolour touch panel, 32-bit controller, minimal noise level, RS 232 interface, and a lockable single-hand operated door handle.
Specifications: The test chambers are available in various capacities ranging from 100 to 1500 litres. They offer temperature ranges from +10°C to +180°C, -20°C to +180°C, -40°C to +180°C, and -70°C to +180°C. The chambers comply with CE and EMC regulations and use environmentally friendly materials and refrigerants.
Design and Construction: The chambers feature a microprocessor control and monitoring system, stainless steel test space, and chloride-free, hermetically sealed refrigerants. Options include additional entry ports, air dryer systems, panoramic windows, and temperature protection for test specimens.
Performance: The temperature change rates for cooling and heating vary by model, with cooling rates ranging from 2 to 6 K/min and heating rates from 2.5 to 6 K/min. The maximum thermal load ranges from 1200 to 4500 W, depending on the model and temperature range.
Dimensions and Power: The document provides detailed dimensions for each model, including test space and overall dimensions. Nominal voltage is 230 V or 400 V, with nominal power ranging from 3.5 kW to 10.9 kW. The refrigeration unit can be air or water-cooled.
Additional Features: The chambers offer options for mobile unit design, additional shelves, hand-holes in the door, and CID software for programming and documentation. They also support Ethernet interfaces and USB connections.
Contact Information: CTS GmbH is located in Hechingen, Germany, with contact details provided for further inquiries.
See more
Catalog excerpts

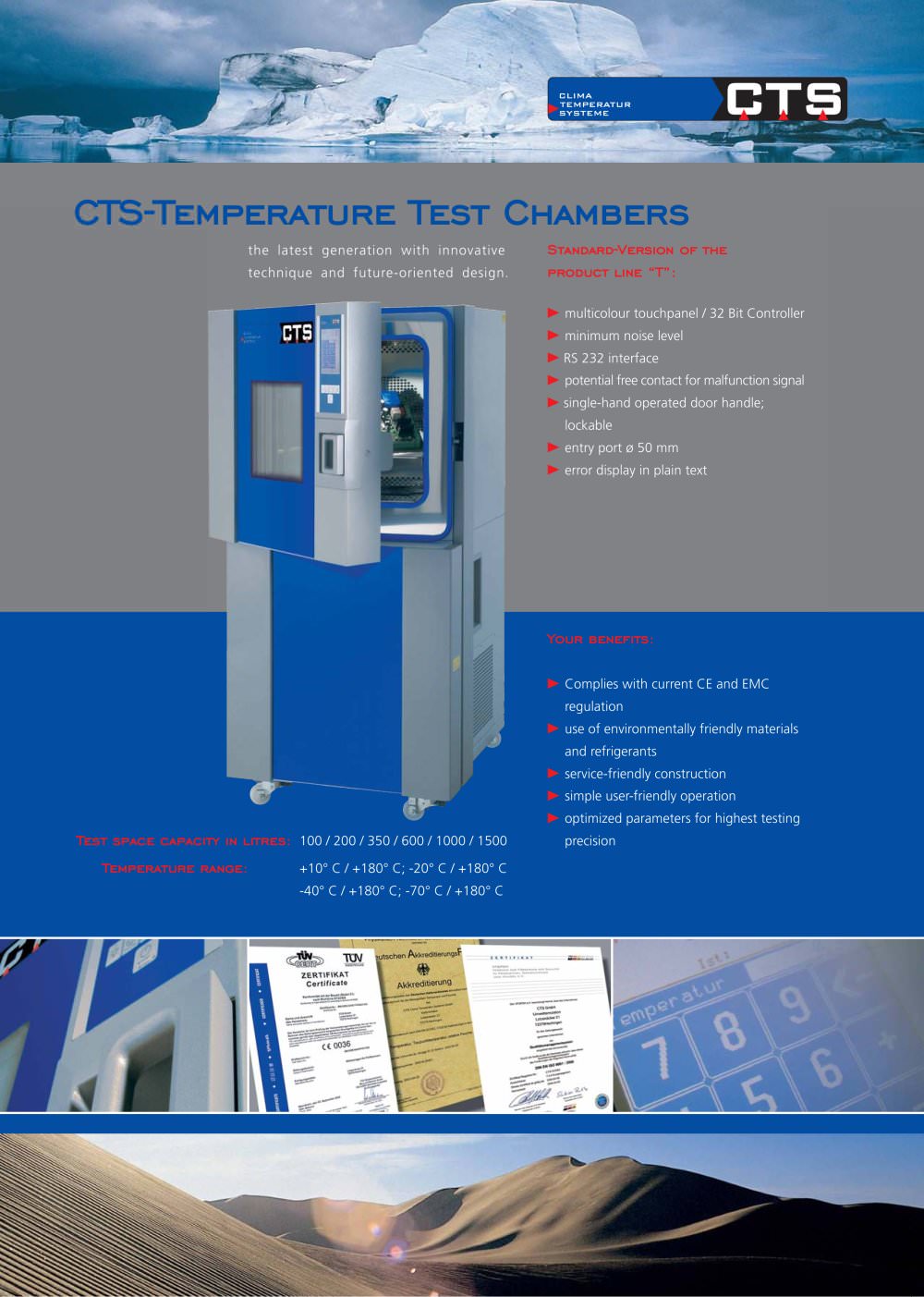

the latest generation with innovativetechnique and future-oriented design. > multicolour touchpanel / 32 Bit Controller minimum noise level RS 232 interface potential free contact for malfunction signal single-hand operated door handle; lockable entry port 50 mm error display in plain text > Complies with current CE and EMCregulation use of environmentally friendly materials and refrigerants service-friendly construction simple user-friendly operation optimized parameters for highest testing precision >
