Pharma Climatic Test Chambers

Product catalog summary

Product Overview: The CP series is a capacitive measuring system designed for pharmaceutical climatic testing. It features a stainless-steel casing, lockable door, RS 232 interface, and six shelves. The system includes a low noise refrigerating unit and a potential-free contact for malfunction signals. Optional features include a door with a window.

Specifications:

Test Space Capacity: 500 / 1100 Litres
Temperature Range: +10°C to +50°C
Humidity Range: 10% to 90% RH
Dew Point Range: I: +7°C to +45°C, II: -5°C to +7°C
Construction: Stainless steel internal and external materials
Refrigerants: Chloride-free, hermetically sealed

Design and Control: The system is controlled by a microprocessor control and monitoring system. It is designed for user-friendly operation and long-term stability testing with high precision.

Options and Accessories: Additional entry ports, temperature protection for test specimens, additional shelves, CID software for programming and documentation, and a touch panel with a color display LCD are available. The system can be equipped with a full-size window door, although this reduces the dew-point range to below +30°C.

Technical Data:

Test Space Dimensions (500 L): Height 1225 mm, Width 595 mm, Depth 620 mm
Test Space Dimensions (1100 L): Height 1225 mm, Width 2 x 595 mm, Depth 620 mm
Overall Dimensions (500 L): Height 2080 mm, Width 720 mm, Depth 795 mm
Overall Dimensions (1100 L): Height 2080 mm, Width 1440 mm, Depth 795 mm
Temperature Fluctuation: ±0.5 K temporally
Humidity Fluctuation: ±1% to 3% RH
Nominal Voltage: 230 V ±6% / -10%, 1/N, 50 Hz
Nominal Power: 1.6 kW (500 L), 2.0 kW (1100 L)
Weight: 150 kg (500 L), 200 kg (1100 L)

Benefits: The system uses environmentally friendly materials and refrigerants, offers simple operation, and is optimized for CTS systems. It is easy to clean due to its stainless-steel construction.

Contact Information: CTS GmbH, Lotzenäcker 21, 72379 Hechingen, Germany. Tel.: 0 74 71/98 50-0, Fax: 0 74 71/98 50-23, Email: [email protected], Website: www.cts-umweltsimulation.de

Catalog excerpts

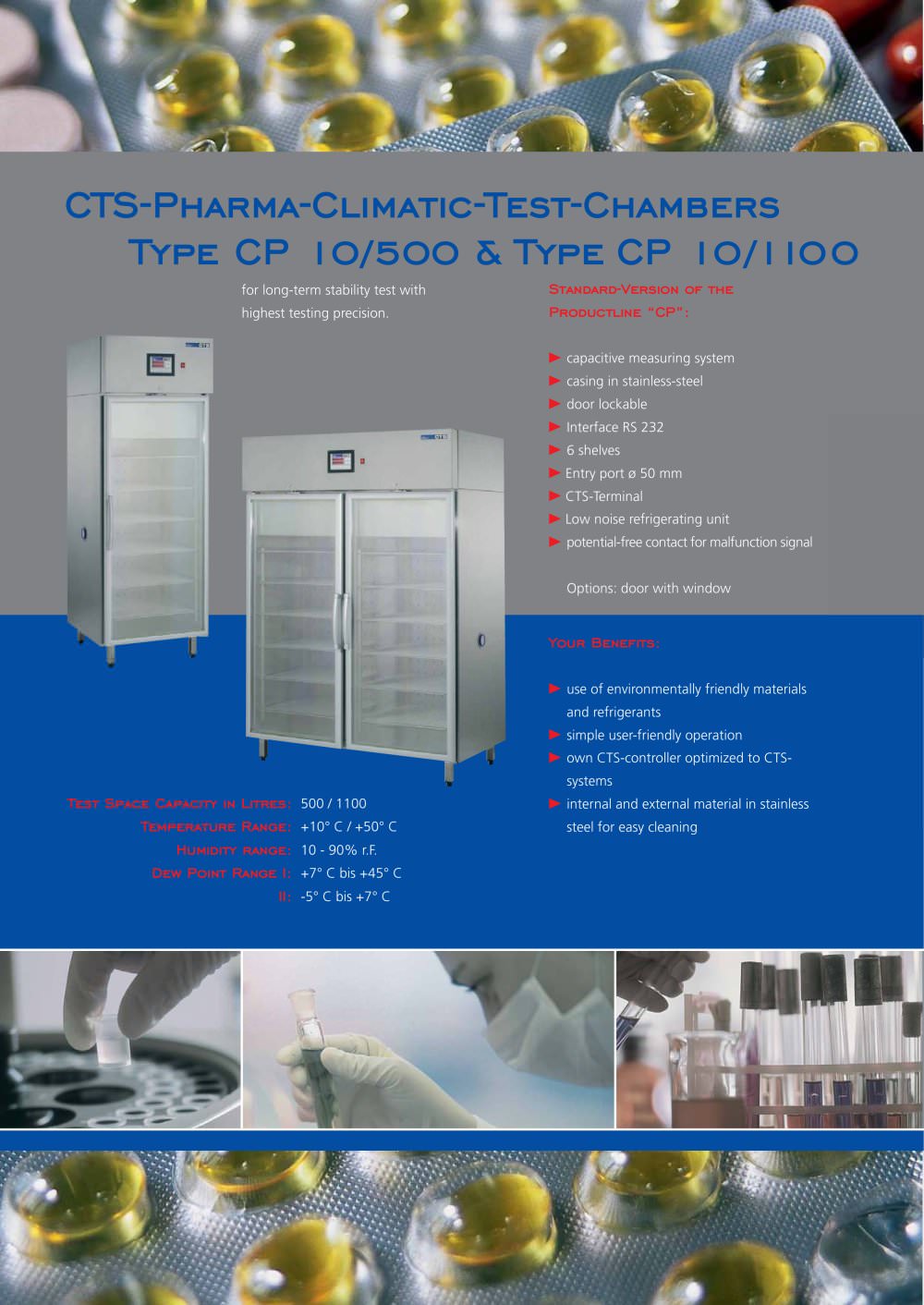

Standard-Version of the Productline “CP”: capacitive measuring system casing in stainless-steel door lockable Interface RS 232 6 shelves Entry port ø 50 mm CTS-Terminal Low noise refrigerating unit potential-free contact for malfunction signal Options: door with window CTS-Pharma-Climatic-Test-Chambers Test Space Capacity in Litres: 500 / 1100 Temperature Range: +10° C / +50° C Humidity range: 10 - 90% r.F. Dew Point Range I: +7° C bis +45° C II: -5° C bis +7° C Your Benefits: use of environmentally friendly materials and refrigerants simple user-friendly operation own CTS-controller optimized to CTSsystems internal and external material in stainless steel for easy cleaning for long-term stability test with highest testing precision. Type CP 10/500 & Type CP 10/1100

Open the catalog to page 1

CTS GmbH Lotzenäcker 21 72379 Hechingen Germany Tel.: 0 74 71/98 50-0 Fax: 0 74 71/98 50-23 E-Mail: [email protected] www.cts-umweltsimulation.de CTS-Pharma-Climatic-Test-Chambers Serie CP 500 / 1100 Ltr. All figures are average values which have been obtained at a temperature of +25°C, without test specimens, without thermal load and without accessories. Design: Control: Microprocessor control and monitoring system Test space: Stainless steel Casing: Stainless steel Refrigerants: Chloride free, hermetically sealed Humidity system: capacitive measuring Options: add. entry ports...

Open the catalog to page 2
