climatic chamber

Product catalog summary
Overview: The document describes the latest generation of CTS Climatic Test Chambers, focusing on innovative techniques and future-oriented design. It highlights the standard features and benefits of the product line "C" and provides detailed specifications for various models.
Specifications:
  • Multicolour touch panel with a 32-bit controller for user-friendly operation.
  • Capacitive humidity measurement system for service-friendly use.
  • RS 232 interface and potential-free contact for malfunction signals.
  • Lockable, single-hand operated door handle with an entry port of 50 mm diameter.
  • Error display in plain text for easy troubleshooting.
Benefits:
  • Compliance with current CE and EMC regulations.
  • Environmentally friendly materials and refrigerants.
  • Service-friendly construction and optimized parameters for high testing precision.
  • Demineralized water system with a water-level gauge.
Test Space Capacities and Temperature Ranges:
  • Capacities range from 100 to 1500 liters.
  • Temperature ranges from +10°C to +180°C, with options for -20°C, -40°C, and -70°C as the lower limits.
Design and Options:
  • Microprocessor control and monitoring system.
  • Stainless steel test space with chloride-free, hermetically sealed refrigerants.
  • Additional options include entry ports, mobile unit design, additional shelves, panoramic windows, and various interface options.
Technical Specifications:
  • Temperature change rates and maximum thermal loads are specified for different models, adhering to IEC 60068-3-5 standards.
  • Humidity and temperature fluctuation ranges are provided for climatic tests.
  • Nominal voltage and power requirements are detailed for each model.
  • Refrigeration units are available in air-cooled and water-cooled versions.
  • Weight specifications are provided for each model.
Contact Information: CTS GmbH, Lotzenäcker 21, 72379 Hechingen, Germany. Tel.: 0 74 71/98 50-0, Fax: 0 74 71/98 50-23, Email: [email protected], Website: www.cts-umweltsimulation.de
See more

Catalog excerpts

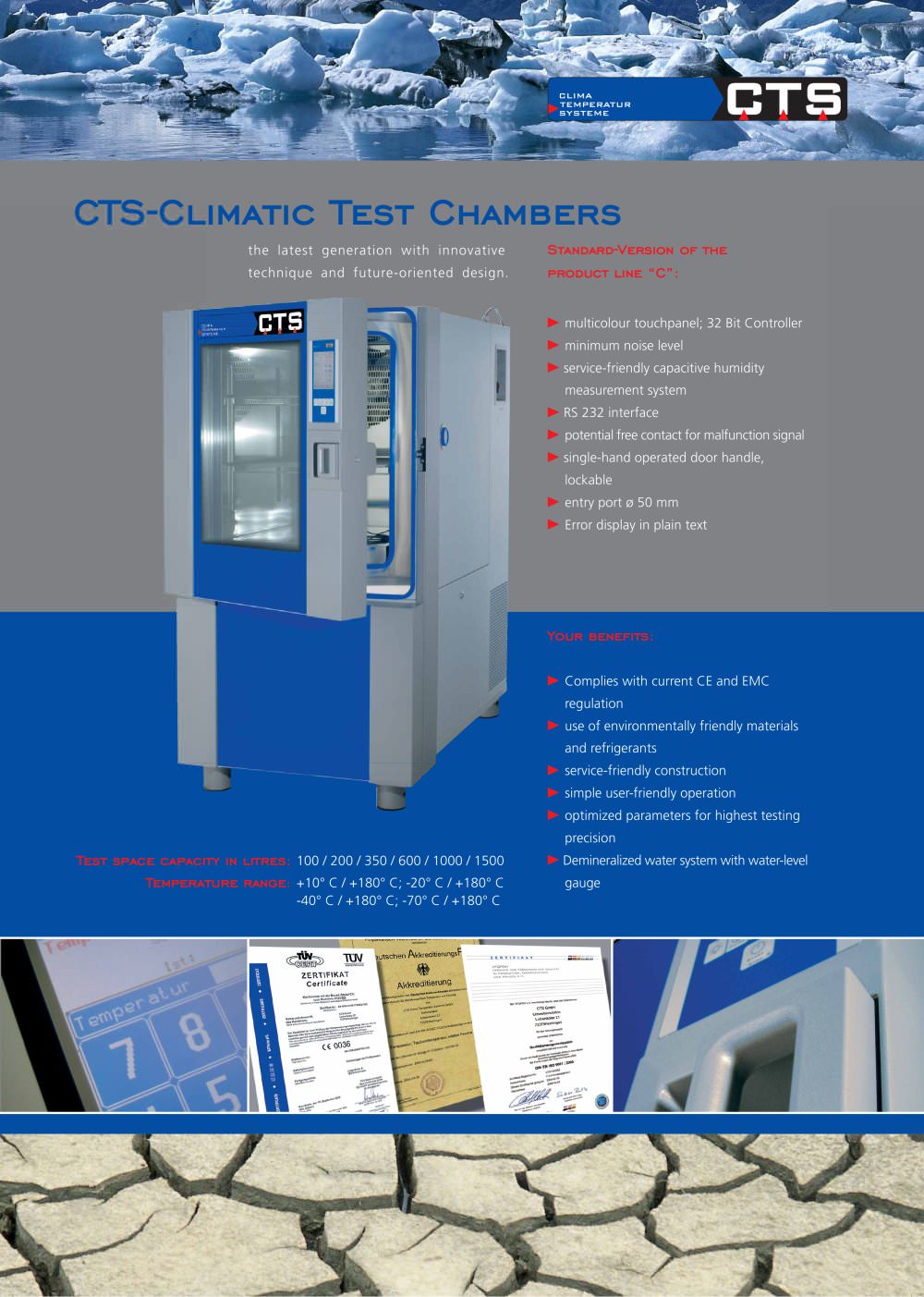

climatic chamber-1

the latest generation with innovativetechnique and future-oriented design. > multicolour touchpanel; 32 Bit Controller minimum noise level service-friendly capacitive humiditymeasurement system RS 232 interface potential free contact for malfunction signal single-hand operated door handle, lockable entry port 50 mm Error display in plain text > Complies with current CE and EMC regulation use of environmentally friendly materials and refrigerants service-friendly construction simple user-friendly operation optimized parameters for highest testing precision > 100 / 200 / 350 / 600 / 1000 / 1500 Demineralized water system with water-levelgauge >

 Open the catalog to page 1
