CID control supervision software
4Pages

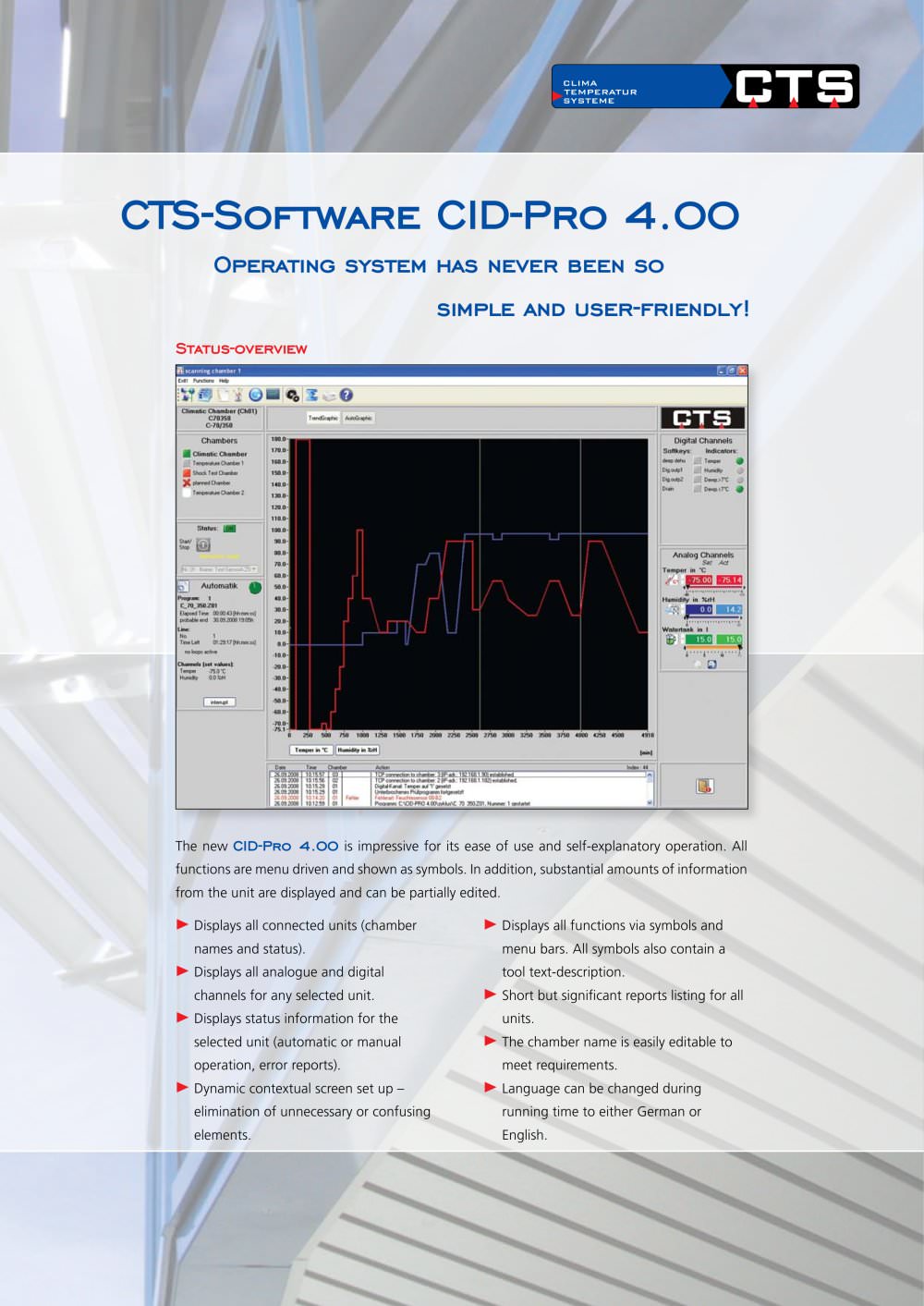

The new CID-Pro 4.00 is impressive for its ease of use and self-explanatory operation. All functions are menu driven and shown as symbols. In addition, substantial amounts of information from the unit are displayed and can be partially edited. CTS-Software CID-Pro 4.00 Operating system has never been so simple and user-friendly! Displays all connected units (chamber names and status). Displays all analogue and digital channels for any selected unit. Displays status information for the selected unit (automatic or manual operation, error reports). Dynamic contextual screen set up – elimination of unnecessary or confusing elements. Displays all functions via symbols and menu bars. All symbols also contain a tool text-description. Short but significant reports listing for all units. The chamber name is easily editable to meet requirements. Language can be changed during running time to either German or English. Status-overview

Create your test cycle programs simply and easily. The new extended CID-Pro 4.00-Editor has many helpful functions making its use even easier, e.g. copy and past lines or line-blocks, calculate gradients exactly or save programs as template-modules. Detailed information of all channel values for the selected lines. Copy lines or whole blocks and paste them back again. Create or shift a point in the graphics with double click on the new point. Loads the last test program opened. Zoom to 20 levels. Save programs as templates that can be pasted back as modules. Define a fixed gradient for a...

A record of the test cycle program can be created storing all analogue and digital channels. This data can be evaluated and the results imported into Microsoft® Excel if required. Display complete measurement results. Hide channels which are not to be displayed. Difference and duration can be calculated (evaluation with two cursors on the graph). Select real time displays (date and time) or relative information (e.g. minutes). Zoom a selected area to carry out more accurate evaluations. The scaling of analogue channels can be displayed on the right or left in the graphic zone. Display all...

CTS GmbH Lotzenäcker 21 72379 Hechingen Germany Tel.: 0 74 71/98 50-0 Fax: 0 74 71/98 50-23 e-mail: vertrieb@cts-umweltsimulation.de www.cts-umweltsimulation.de Visualising With the new menus, there is the option to visually display the layout of your units with site layout background photos and pictures of the individual setups. Units can be configured with user-defined sizes, position and appearance. Key information is displayed when the cursor is moved over a chamber. Networking Communication to the setup is freely configurable through RS232, RS485 or a network. Additionally, an online...
