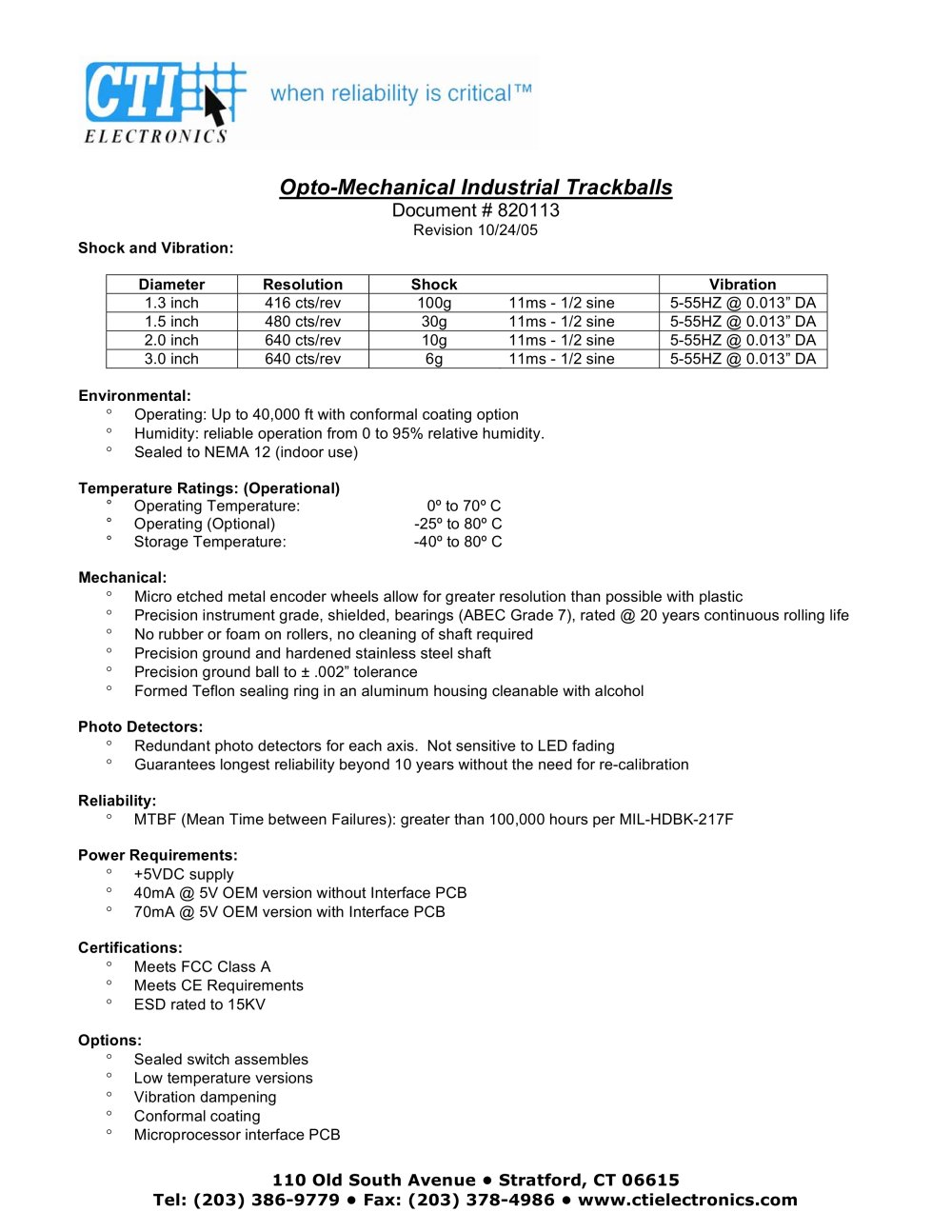

T1XXX Series - NEMA 12 Industrial Trackballs

Product catalog summary

Shock and Vibration Specifications:

1.3 inch: 416 counts/revolution, 100g shock, 11ms - 1/2 sine, 5-55HZ @ 0.013” DA
1.5 inch: 480 counts/revolution, 30g shock, 11ms - 1/2 sine, 5-55HZ @ 0.013” DA
2.0 inch: 640 counts/revolution, 10g shock, 11ms - 1/2 sine, 5-55HZ @ 0.013” DA
3.0 inch: 640 counts/revolution, 6g shock, 11ms - 1/2 sine, 5-55HZ @ 0.013” DA

Environmental Specifications:

Operating altitude: Up to 40,000 ft with conformal coating option
Humidity: 0 to 95% relative humidity
Sealed to NEMA 12 for indoor use

Temperature Ratings:

Operating: 0º to 70º C
Optional Operating: -25º to 80º C
Storage: -40º to 80º C

Mechanical Features:

Micro etched metal encoder wheels for high resolution
Precision instrument grade, shielded bearings (ABEC Grade 7)
No rubber or foam on rollers, no shaft cleaning required
Precision ground and hardened stainless steel shaft
Precision ground ball to ± .002” tolerance
Formed Teflon sealing ring in aluminum housing, cleanable with alcohol

Photo Detectors:

Redundant photo detectors for each axis
Not sensitive to LED fading, ensuring reliability beyond 10 years without re-calibration

Reliability:

MTBF: Greater than 100,000 hours per MIL-HDBK-217F

Power Requirements:

+5VDC supply
40mA @ 5V for OEM version without Interface PCB
70mA @ 5V for OEM version with Interface PCB

Certifications:

Meets FCC Class A
Meets CE Requirements
ESD rated to 15KV

Options:

Sealed switch assemblies
Low temperature versions
Vibration dampening
Conformal coating
Microprocessor interface PCB

Contact Information: 110 Old South Avenue, Stratford, CT 06615. Tel: (203) 386-9779, Fax: (203) 378-4986, www.ctielectronics.com
