Industrial ORBITALMOUSE® Mouse Pointing Device

Overview: The ORBITALMOUSE® is a button-style mouse cursor device featuring molded silicone rubber keys with excellent tactile feedback and a 2mm travel distance. It is available with optional back-lighting and utilizes a single round button for 360° cursor movement.

Features:

OEM Design with sealed, hard gold-plated switch contacts.
Compatible with all computers without the need for software drivers.
Repairable and plug-and-play design with direct factory support.
No drift design with no moving electrical parts or magnets.
Manufactured in the USA.

Temperature Ratings:

Operating Temperature: -40º to 80º C
Storage Temperature: -40º to 80º C

Reliability:

MTBF: 100,000 hours as per MIL-HDBK-217F.
Shock Rating: 50g 11ms - 1/2 sine.
Sealing: NEMA 4, NEMA 4X (IP66).
Vibration: Mil-Std-810F, Category 4.
Buttons rated for up to 10 million cycles.

Certifications:

Meets FCC Part 15 Class A & B.
Complies with CE and RoHS requirements.
ESD rated to 15KV.

Patents: U.S. Patent No. 7,499,032 and U.S. Patents Pending 12/344368.

Catalog excerpts

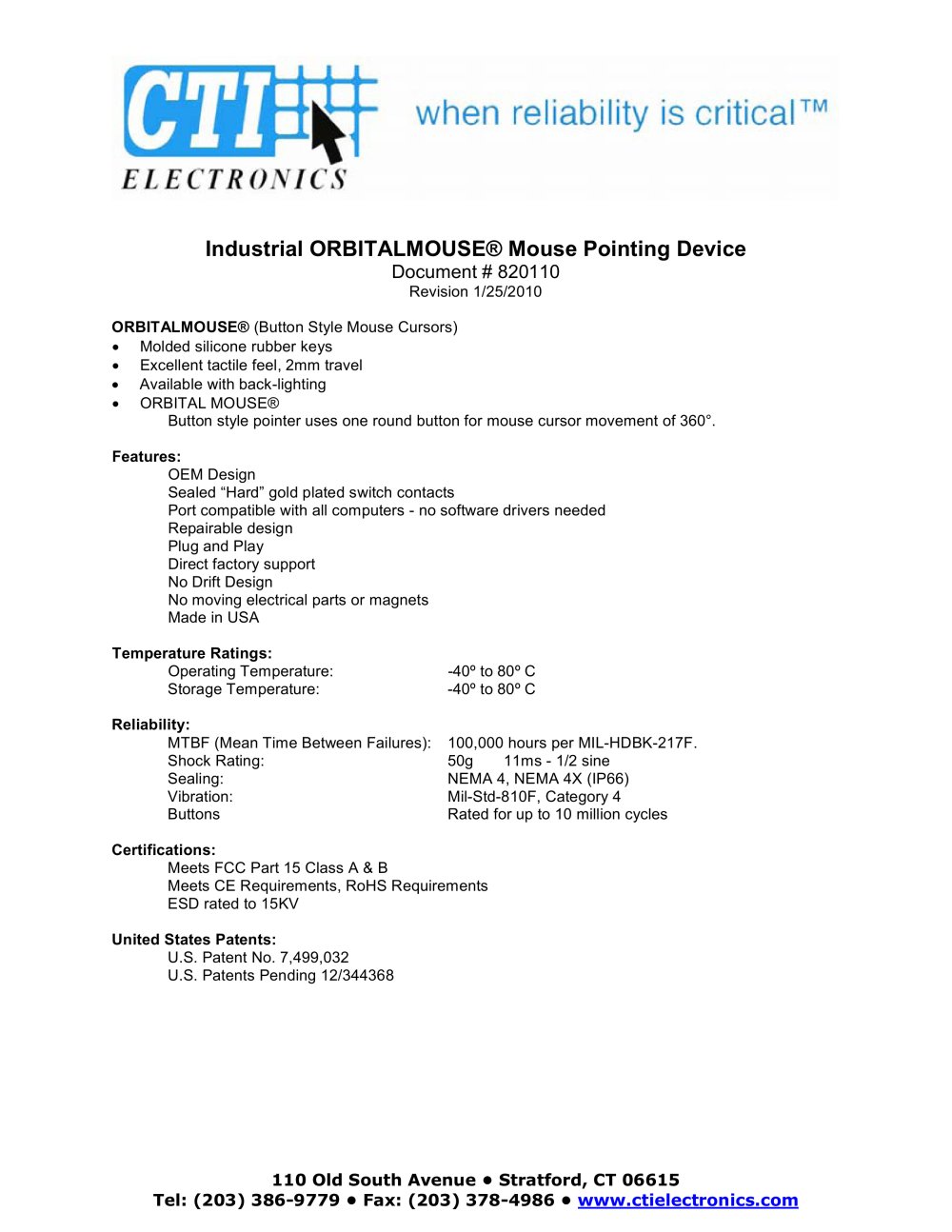

Orbital Mouse Industrial Mouse Pointers Specifications-1

110 Old South Avenue • Stratford, CT 06615 Tel: (203) 386-9779 • Fax: (203) 378-4986 • www.ctielectronics.com Industrial ORBITALMOUSE® Mouse Pointing Device Document # 820110 Revision 1/25/2010 ORBITALMOUSE® (Button Style Mouse Cursors) • Molded silicone rubber keys • Excellent tactile feel, 2mm travel • Available with back-lighting • ORBITAL MOUSE® Button style pointer uses one round button for mouse cursor movement of 360°. Features: OEM Design Sealed “Hard” gold plated switch contacts Port compatible with all computers - no software drivers needed Repairable design Plug and Play Direct factory support No Drift Design No moving electrical parts or magnets Made in USA Temperature Ratings: Operating Temperature: -40º to 80º C Storage Temperature: -40º to 80º C Reliability: MTBF (Mean Time Between Failures): 100,000 hours per MIL-HDBK-217F. Shock Rating: 50g 11ms - 1/2 sine Sealing: NEMA 4, NEMA 4X (IP66) Vibration: Mil-Std-810F, Category 4 Buttons Rated for up to 10 million cycles Certifications: Meets FCC Part 15 Class A & B Meets CE Requirements, RoHS Requirements ESD rated to 15KV United States Patents: U.S. Patent No. 7,499,032 U.S. Patents Pending 12/344368
