Overview

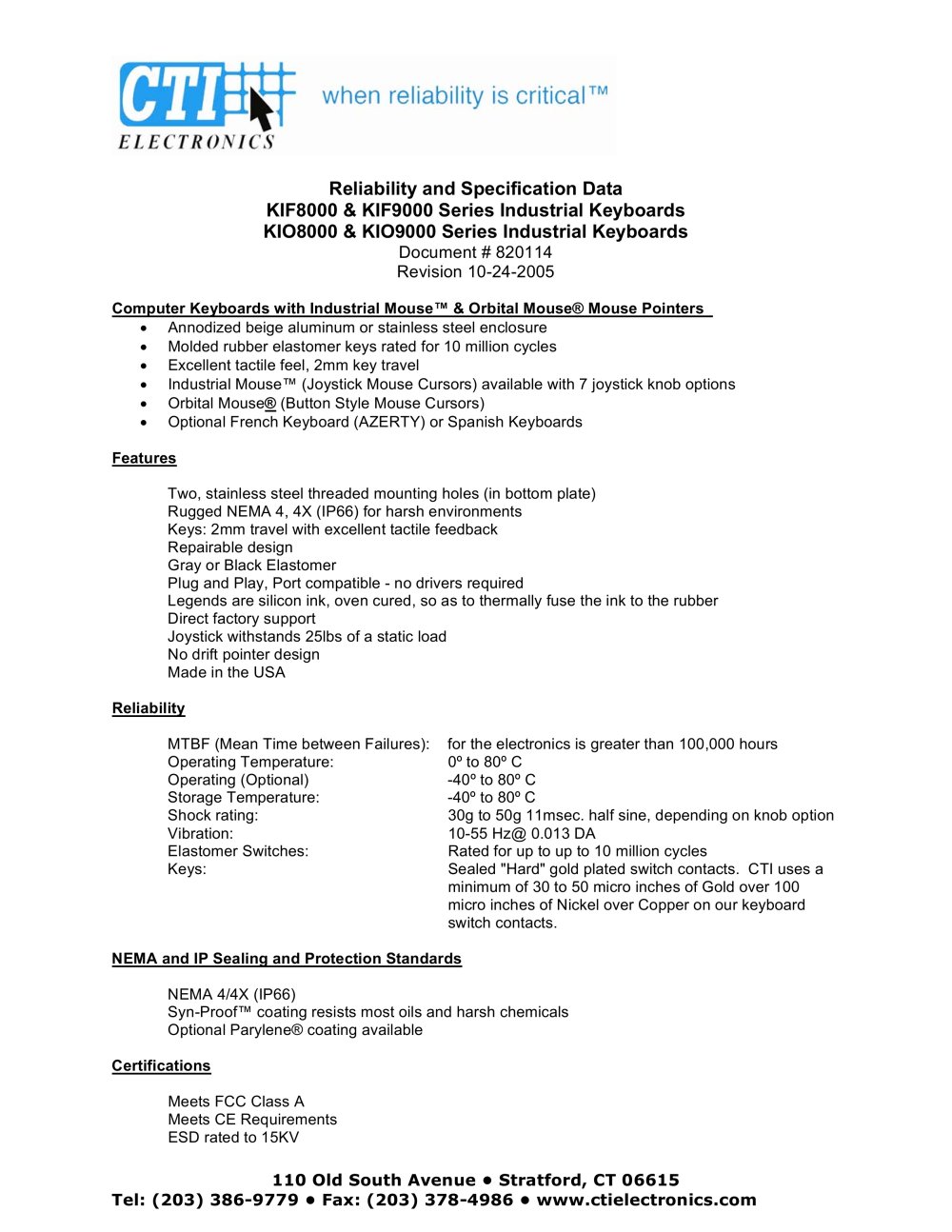

The document provides detailed specifications and reliability data for the KIF8000 & KIF9000 Series and KIO8000 & KIO9000 Series Industrial Keyboards, featuring Industrial Mouse™ and Orbital Mouse® pointers.

Specifications

• Enclosure: Anodized beige aluminum or stainless steel.
• Keys: Molded rubber elastomer rated for 10 million cycles with 2mm travel and excellent tactile feedback.
• Mouse Options: Industrial Mouse™ with 7 joystick knob options and Orbital Mouse®.
• Keyboard Options: Optional French (AZERTY) or Spanish keyboards.

Features

• Mounting: Two stainless steel threaded holes in the bottom plate.
• Durability: NEMA 4, 4X (IP66) for harsh environments.
• Design: Repairable with gray or black elastomer, plug and play compatibility.
• Legends: Silicon ink, oven-cured for durability.
• Joystick: Withstands 25lbs of static load, no drift pointer design.
• Manufacturing: Made in the USA.

Reliability

• MTBF: Electronics rated greater than 100,000 hours.
• Temperature: Operating range from 0º to 80º C, optional -40º to 80º C.
• Storage Temperature: -40º to 80º C.
• Shock Rating: 30g to 50g, 11msec half sine, depending on knob option.
• Vibration: 10-55 Hz at 0.013 DA.
• Switches: Elastomer switches rated for up to 10 million cycles, with gold-plated contacts.

Sealing and Protection Standards

• NEMA 4/4X (IP66) with Syn-Proof™ coating for resistance to oils and chemicals.
• Optional Parylene® coating available.

Certifications

• FCC Class A compliant.
• CE Requirements met.
• ESD rated to 15KV.

Contact Information
110 Old South Avenue, Stratford, CT 06615
Tel: (203) 386-9779
Fax: (203) 378-4986
Website: www.ctielectronics.com
