F Series 1 & 2-Axes Industrial Joysticks Reliability Data

Product catalog summary

Inductive Industrial Joysticks Reliability Data

F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks

1. Electrical Specifications
Power consumption is 10mA at 5VDC and 25mA at 24VDC, both typical values. The repeatability is greater than 1%, and calibration accuracy is typically within 1% of full scale, with a worst-case scenario of 2%.

2. Environmental Conditions
The operating temperature ranges from 0º to 80º C, extendable to -40º to 80º C with the "D" option. Storage temperature is from -40º to 80º C. The joystick can handle 100% non-condensing relative humidity with the "Z" option.

3. Sealing
The joystick is water-tight, compliant with NEMA 4 (IP66) standards.

4. Reliability
The mean time between failures (MTBF) is greater than 100,000 hours. The joystick is designed for 10,000,000 random deflections, and the optional push button switch can endure up to 1,000,000 cycles.

5. Shock Resistance
The joystick can withstand peak shock values between 30g to 50g, depending on the knob and spring option, with a pulse duration of 11 ms and a half-sine waveform.

6. Vibration Resistance
For frequencies between 5 - 25 Hz, the displacement is 0.1 inches, and for 25 - 55 Hz, it is 0.03 inches.

7. Certifications and Compliance
The joystick complies with FCC class A and B regulations. The "CE" classification requires a ferrite bead on the ribbon cable and a shielded enclosure and cable. It is ESD rated to 15KV and is RoHS compliant, being lead-free.

Catalog excerpts

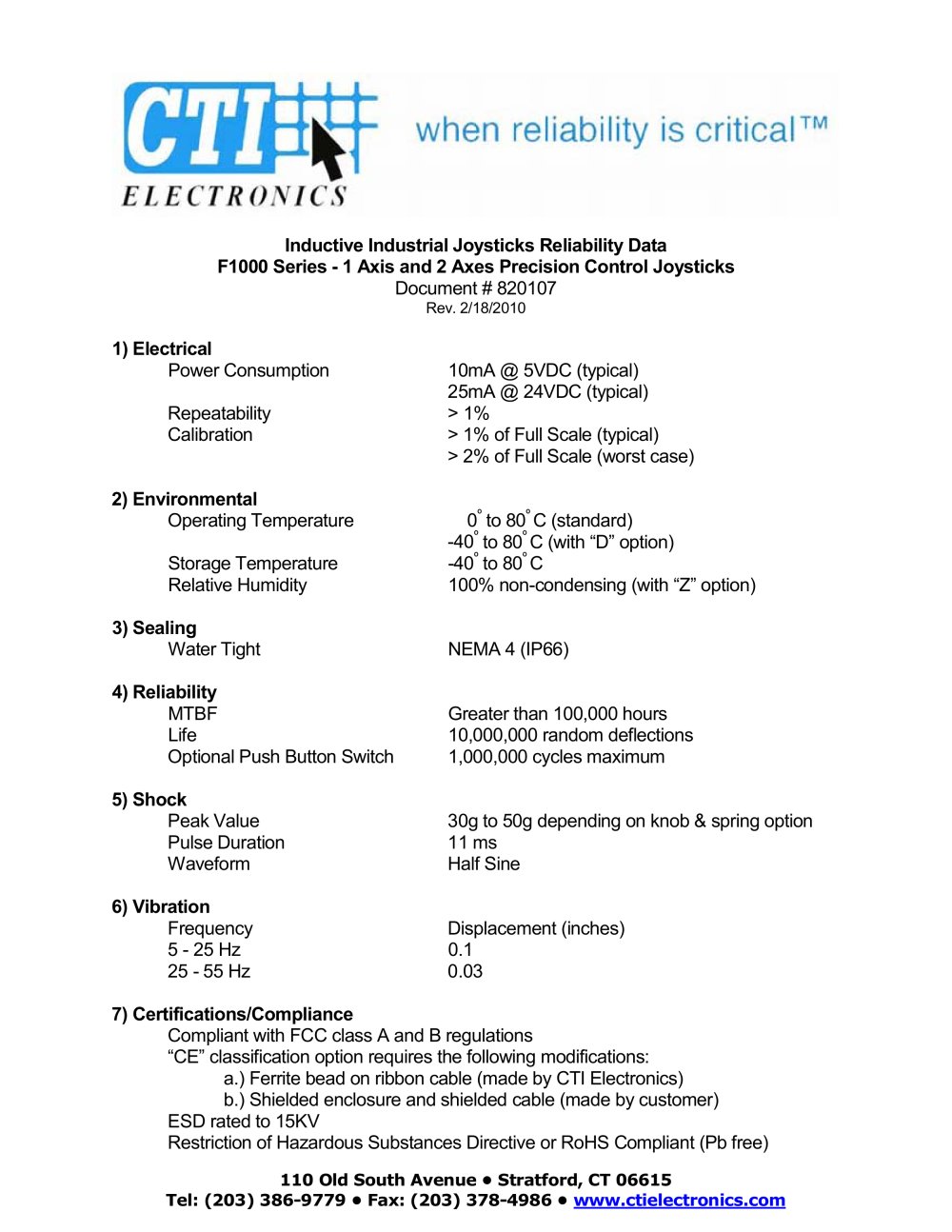

F Series 1 & 2-Axes Industrial Joysticks Reliability Data-1

110 Old South Avenue • Stratford, CT 06615 Tel: (203) 386-9779 • Fax: (203) 378-4986 • www.ctielectronics.com Inductive Industrial Joysticks Reliability Data F1000 Series - 1 Axis and 2 Axes Precision Control Joysticks Document # 820107 Rev. 2/18/2010 1) Electrical Power Consumption 10mA @ 5VDC (typical) 25mA @ 24VDC (typical) Repeatability > 1% Calibration > 1% of Full Scale (typical) > 2% of Full Scale (worst case) 2) Environmental Operating Temperature 0º to 80º C (standard) -40º to 80º C (with “D” option) Storage Temperature -40º to 80º C Relative Humidity 100% non-condensing (with “Z” option) 3) Sealing Water Tight NEMA 4 (IP66) 4) Reliability MTBF Greater than 100,000 hours Life 10,000,000 random deflections Optional Push Button Switch 1,000,000 cycles maximum 5) Shock Peak Value 30g to 50g depending on knob & spring option Pulse Duration 11 ms Waveform Half Sine 6) Vibration Frequency Displacement (inches) 5 - 25 Hz 0.1 25 - 55 Hz 0.03 7) Certifications/Compliance Compliant with FCC class A and B regulations “CE” classification option requires the following modifications: a.) Ferrite bead on ribbon cable (made by CTI Electronics) b.) Shielded enclosure and shielded cable (made by customer) ESD rated to 15KV Restriction of Hazardous Substances Directive or RoHS Compliant (Pb free)

Open the catalog to page 1
