Arrow Mouse - Arrow Key Mouse Cursors

Product catalog summary
Product Overview:
The ARROWMOUSE™ is an industrial pointing device featuring molded silicone rubber keys with excellent tactile feedback and 2mm key travel. It is available with optional back-lighting and uses arrow keys for cursor movement.
Key Features:
  • OEM Design with sealed gold plated switch contacts.
  • Compatible with all computers without the need for software drivers.
  • Repairable and Plug and Play design.
  • Direct factory support and a No Drift Design.
  • No moving electrical parts or magnets.
  • Manufactured in the USA.
Temperature Ratings:
  • Operating Temperature: 0º to 80º C (optional -40º to 80º C).
  • Storage Temperature: -40º to 80º C.
Reliability:
  • MTBF: 100,000 hours as per MIL-HDBK-217F.
  • Shock Rating: 50g 11ms - 1/2 sine.
  • Sealing: NEMA 4, 4X, (IP66).
  • Vibration: Mil-Std-810F, Category 4.
  • Buttons rated for up to 10 million cycles.
Certifications:
  • Meets FCC Class A standards.
  • Complies with CE requirements.
  • ESD rated to 15KV.
Contact Information:
110 Old South Avenue, Stratford, CT 06615
Tel: (203) 386-9779
Fax: (203) 378-4986
Website: www.ctielectronics.com
See more

Catalog excerpts

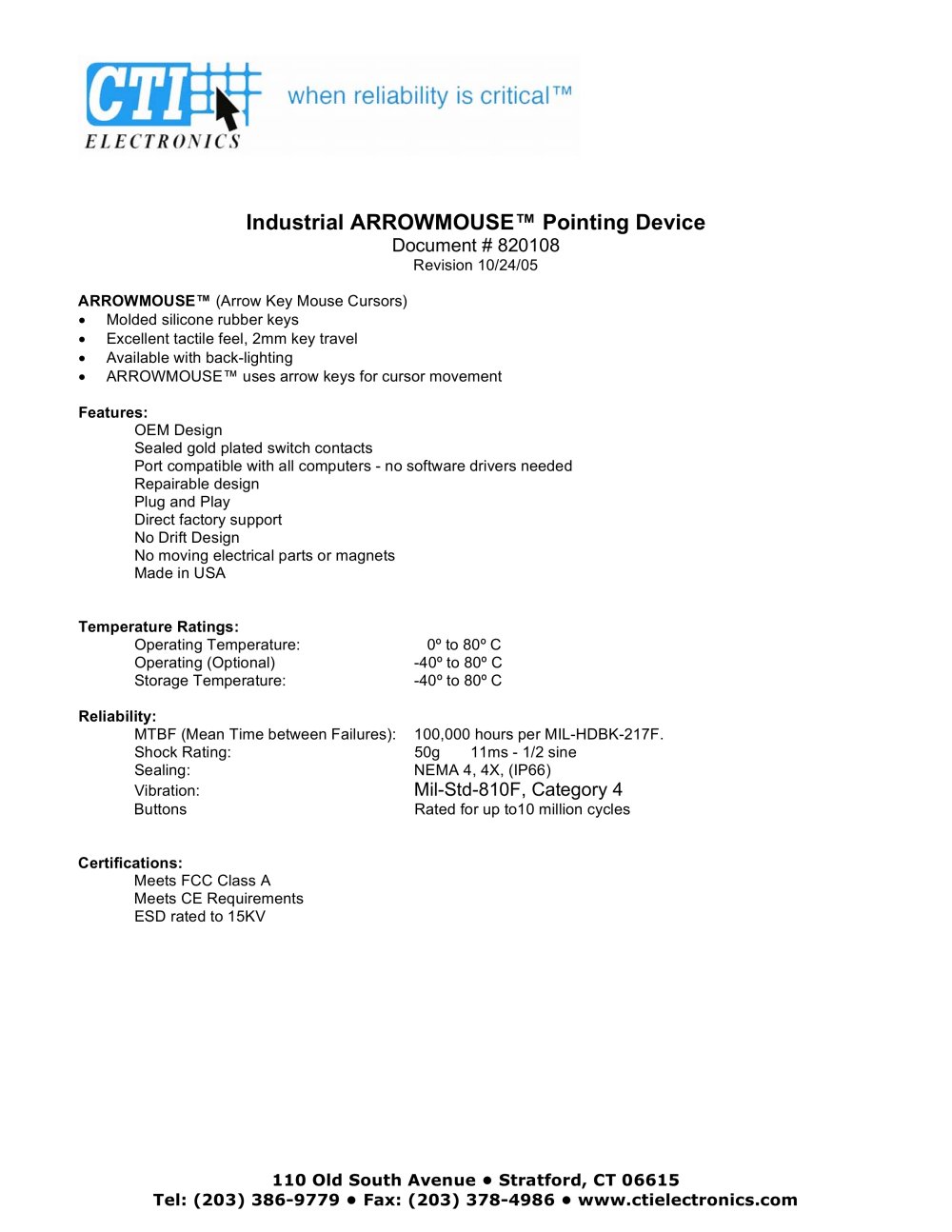

Arrow Mouse - Arrow Key Mouse Cursors -1

Revision 10/24/05 ARROWMOUSEٙ (Arrow Key Mouse Cursors) Moldedsilicone rubber keys Excellent tactile feel, 2mm key travel Available with back-lighting ARROWMOUSE uses arrowkeys for cursor movement Features: OEM DesignSealed gold plated switch contacts Port compatible with all computers - no software drivers neededRepairable designPlug and PlayDirect factory supportNo Drift Design No moving electrical partsor magnetsMade in USA Temperature Ratings: Operating Temperature: 0ٺ to 80 C Operating (Optional)-40ں to 80 CStorage Temperature:-40ں to 80 C Reliability: MTBF (Mean Time between Failures):100,000 hours per MIL-HDBK-217F.ShockRating: 50g11ms-1/2sineSealing: NEMA 4,4X,(IP66)Vibration: > Buttons Rated forupto10millioncycles Certifications: Meets FCCClass A Meets CE Requirements ESD ratedto15KV >

 Open the catalog to page 1
