Side-Stance Rider Pallet Trucks RT 3500

Side-Stance Rider Pallet Trucks RT 3500

Product catalog summary

General Information
Manufacturer: Crown Equipment Corporation
Model: RT 3510-2.0, RT 3520-2.2
Power: Electric
Operator Type: Stand-on, Sit-on
Load Capacity: 2.0 to 2.2 tons
Load Centre: 600 mm

Weights
Weight without battery: 579 to 590 kg
Axle Load with load (front/rear): 1114/1856 kg to 1139/1991 kg
Axle Load without load (front/rear): 640/200 kg to 660/220 kg

Tyres
Type: Vulkollan
Wheel Size (front/rear): Ø 260 x 85 mm / Ø 85 x 70 mm
Additional Wheels: Castor wheel Ø 150 x 50 mm

Dimensions
Lift Height: 130 mm
Overall Length: 1970 to 2000 mm
Overall Width: 770 to 900 mm
Fork Dimension: 50 x 180 x 1150 mm
Turning Radius: 1738 to 1755 mm

Performance
Travel Speed with/without load: 10/11 km/h
Lift Speed with/without load: 0.04 to 0.08 m/s
Max. Gradeability with/without load: 8% / 17%
Service Brake: Electric

Motors
Traction Motor: 2.0 kW
Lift Motor: 2.0 kW
Battery Voltage: 24 V
Battery Capacity: 315 to 500 Ah

Standard Equipment
Includes AC traction and steering motor, CAN-Bus technology, electronic steering, speed reduction in turns, self-levelling load wheels, and more.

Optional Equipment
Includes single load wheels, battery compartment rollers, freezer conditioning, drive tyre options, and more.

Operator Area and Controls
Features include a side-stance position for visibility, cushioned floor mat, ergonomic seat with adjustable features, and a key switch for security.

Control System
Utilizes CAN-Bus technology for communication and control of truck movements.

Drive System
AC traction system provides high speeds and strong acceleration with regenerative braking.

Steering
Electronic steering with minimal effort and 180° wheel rotation for manoeuvrability.

Power Unit
Constructed from heavy-gauge steel with cushioned floor mat and rugged steel doors.

Fork / Lift Mechanism
Features a fork-levelling system for improved traction on uneven surfaces.

Safety Regulations
Conforms to European safety standards. Performance may vary based on conditions.

Catalog excerpts

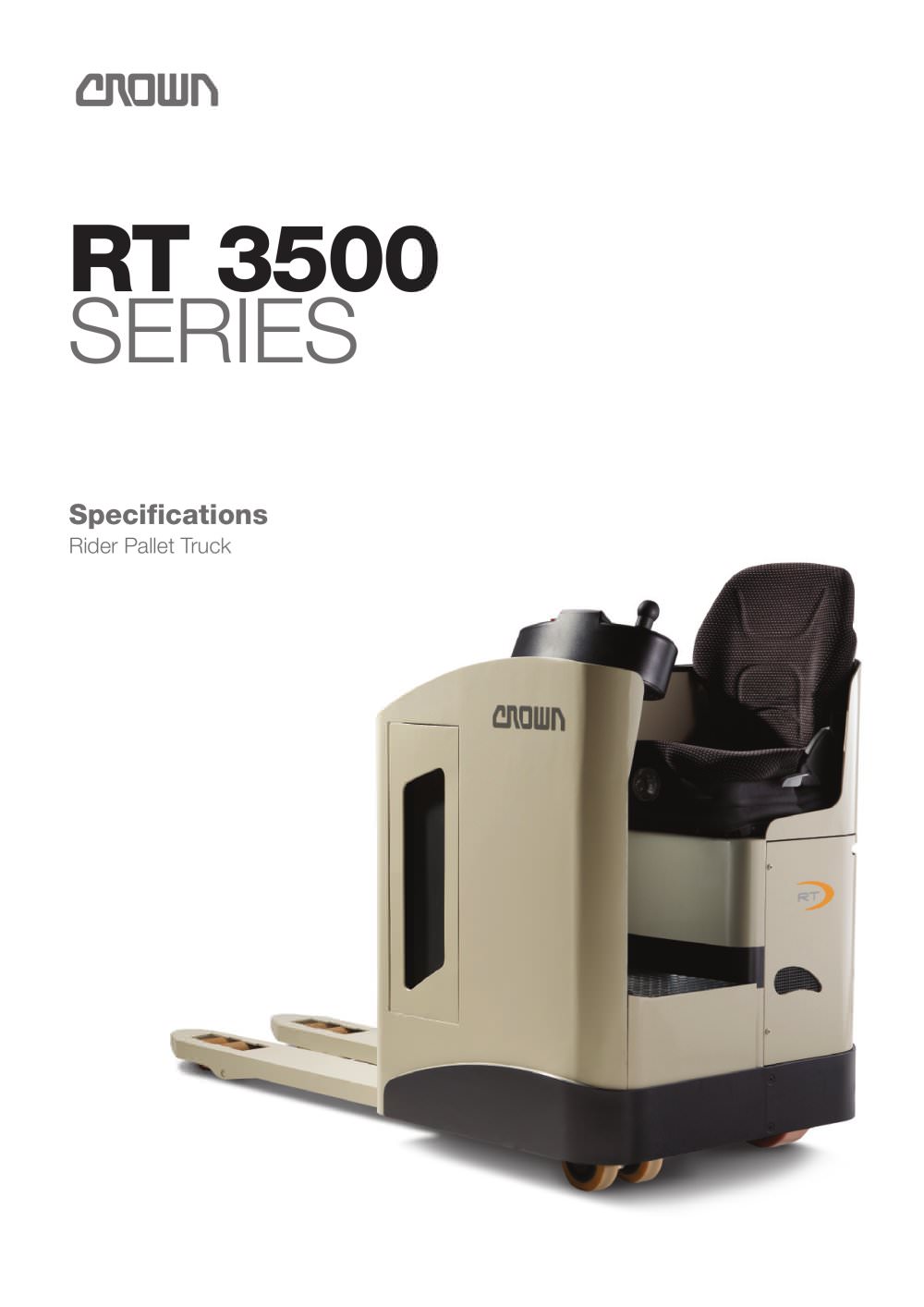

Side-Stance Rider Pallet Trucks RT 3500-1

C RT 3500 SERIES Specifications Rider Pallet Truck

Open the catalog to page 1

Side-Stance Rider Pallet Trucks RT 3500-4

RT 3500 Series Specifications General Information 1.1 Manufacturer Crown Equipment Corporation 1.2 Model RT 3510-2.0 RT 3520-2.2 1.3 Power electric 1.4 Operator Type stand-on sit-on 1.5 Load Capacity Q t 2.0 2.2 1.6 Load Centre c mm 600 1.8 Load Distance * forks raised x mm 882 1.9 Wheel Base * forks raised y mm 1548 1520 Weights 2.1 Weight less battery kg 590 579 2.2 Axle Load w. load, front / rear kg 1114 / 1856 1139 / 1991 2.3 Axle Load w.o. load, front / rear kg 660 / 220 640 / 200 Tyres 3.1 Tyres Type Vulkollan 3.2 Wheel Size front mm Ø 260 x 85 3.3 Wheel Size rear mm Ø 85 x 70 3.4 Additional...

Open the catalog to page 4

Side-Stance Rider Pallet Trucks RT 3500-5

RT 3500 Series Technical Information Electric System / Batteries 24-volt electrical system with nominal battery capacities from 315 Ah to 500 Ah. Battery lift out is standard. With optional battery compartment rollers the battery can be removed horizontally to one side (315Ah or 375Ah only). Standard Equipment 1. AC traction and steering motor and control system 2. CAN-Bus technology 3. Electronic steering 4. Speed reduction in turns 5. Self levelling load wheels 6. Armrest 7. Braking system offers frictionless and regenerative electric braking 8. Key switch 9. Information Display • LCD display...

Open the catalog to page 5

Side-Stance Rider Pallet Trucks RT 3500-6

RT 3500 SPEC GB 04/11, 10 M03413-006-00 Printed in Germany DIN EN ISO 9002 European Manufacturing: Crown Gabelstapler GmbH & Co. KG Roding, Germany www.crown.com C

Open the catalog to page 6
