Reach trucks ESR 5000

Product catalog summary

General Information

Manufacturer: Crown Equipment Corporation
Models: ESR 5000-1.4, ESR 5000-1.6, ESR 5000-2.0, ESR 5000S-1.6, ESR 5000S-2.0
Power: Electric
Operator Type: Sit down
Load Capacity: 1.4 to 2.0 tons
Load Centre: 600 mm

Weights

Weight less battery: 2534 kg to 2661 kg for ESR 5000, 2619 kg to 2729 kg for ESR 5000S

Tyres

Type: Vulkollan
Front Tyres: 343 x 140 mm
Rear Tyres: 285 x 100 mm to 330 x 100 mm

Dimensions

Fork Carriage Tilt: 2° forward / 4° backward
Overhead Guard Height: 2375 mm / 2554 mm
Turning Radius: 1645 mm to 1809 mm

Performance

Travel Speed: 14.0 km/h
Lift Speed: 0.32 to 0.69 m/s
Max. Gradeability: 12%

Motors

Traction Motor: 6.8 kW
Lift Motor: 13.6 kW

Miscellaneous

Controller Type: AC-transistor
Noise Level: 65 dB(A)

Standard Equipment

Crown Integrated Control System
360 Select™ steering system
Vulkollan load wheels and drive tyre
All-wheel braking systems
Operator compartment with ergonomic features

Optional Equipment

Integrated lift height and load weight indicator
Smart Rack Height Select
Camera systems

Overview: The document provides detailed technical specifications and optional equipment for the Crown ESR 5000 series, focusing on features that enhance performance, safety, and operator comfort.

Key Features and Specifications:

Optional Equipment: Includes keyless start-up with PIN code, various light and safety packages, overhead guards, power supply options, work assist accessories, and cold storage conditioning.
Model-Specific Options: The ESR 5000 and ESR 5000S models offer unique features such as angled or flat overhead guards, battery rollers, control levers, and cold store cab options.
Driver's Compartment and Controls: Designed for comfort and efficiency with adjustable seating, a tilting steer column, and a comprehensive display for operational status and maintenance scheduling.
Integrated Control System: Crown’s Access 1 2 3® system provides control over traction, hydraulic, and braking systems, with features like Truck-Hold for improved control on ramps.
Hydraulic System: Offers proportional control for precise operation, with standard and optional hydraulic functions, and features to reduce noise and enhance efficiency.
Mast and Reach Carriage: Designed for visibility and stability, with features like integrated sideshift, reinforced channels, and dampers to reduce noise and energy consumption.
Drive Unit and Steering: Features a highly efficient drive unit with AC motors and advanced steering options, including 360 Select™ control for customizable steering preferences.
Braking System: Includes service and parking brakes, regenerative motor braking, and electric auto brake functions for smooth and efficient stopping.
Motors: Equipped with efficient 3-phase AC motors suitable for high loads and temperatures.
Safety and Compliance: Conforms to European safety standards, with performance affected by various factors such as weight and operating conditions.

Conclusion: The Crown ESR 5000 series is designed to offer superior performance, safety, and operator comfort, with a range of customizable options to suit different applications and environments.

Catalog excerpts

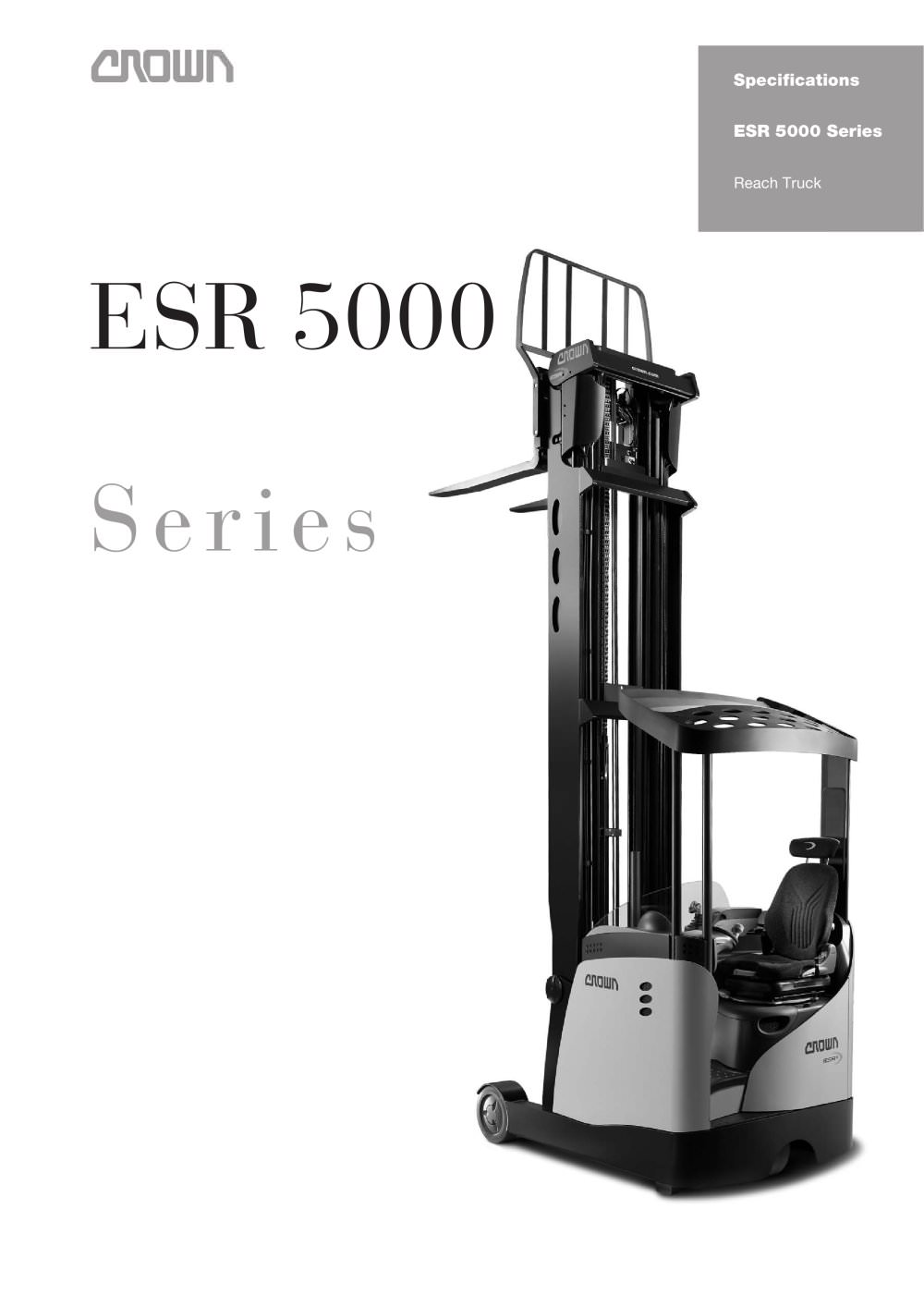

C Specifications ESR 5000 Series Reach Truck ESR 5000 Series

Open the catalog to page 1

ESR 5000 Series Specifications General Information 1.1 Manufacturer Crown Equipment Corporation 1.2 Model ESR 5000-1.4 ESR 5000-1.6 ESR 5000-2.0 1.3 Power electric 1.4 Operator Type sit down 1.5 Load Capacity Q t 1.4 1.6 2.0 1.6 Load Centre c mm 600 1.8 Load Distance mast extended x1 mm see table of dimensions 2 1.8a mast retracted x mm 187 217 217 1.9 Wheel Base y mm 1380 1475 1475 Weights 2.1 Weight less battery kg 2534 £ 2557 £ 2661££ 2.4 Axle Load reach extended kg see table of dimensions 5 2.5 reach retracted kg see table of dimensions 5 Tyres 3.1 Tyre Type D/L Vulkollan 3.2 Tyres front...

Open the catalog to page 3

ESR 5000S Series Specifications General Information 1.1 Manufacturer Crown Equipment Corporation 1.2 Model ESR 5000S-1.6 ESR 5000S-2.0 1.3 Power electric 1.4 Operator Type sit down 1.5 Load Capacity Q t 1.6 2.0 1.6 Load Centre c mm 600 1.8 Load Distance mast extended x1 mm 217 1.8a mast retracted x mm see table of dimensions 2 1.9 Wheel Base y mm 1475 1550 Weights 2.1 Weight less battery kg 2619 2729 2.4 Axle Load reach extended kg see table of dimensions 5 2.5 reach retracted kg see table of dimensions 5 Tyres 3.1 Tyre Type D/L Vulkollan 3.2 Tyres front mm 343 x 140 3.3 rear mm 330 x 100 3.5...

Open the catalog to page 5

Capacity At a 600 mm load centre: Model ESR 5000-1.4: 1400 kg Model ESR 5000-1.6 & Model ESR 5000S-1.6: 1600 kg Model ESR 5000-2.0 & Model ESR 5000S-2.0: 2000 kg Batteries /Electrical System The 48 V battery is pulled out of the chassis with the reach carriage, no tools required. Standard Equipment 1. Crown Integrated Control System with Access 1 2 3® for traction, hydraulics and steering • Virtually maintenance free 3-phase (AC) motors • CAN-Bus technology • Max. 14 km/h travel speed 2. Steering system • 360 Select™ steering system allows the operator to choose between 180° and 360° steer tyre...

Open the catalog to page 8

Driver's Compartment and Controls A comfortable low, wide step speeds entry. Well-positioned long tubular overhead guard post works as a grab handle. Non-slip floor mat ensure safe and comfortable footing during entry and exit. Once seated, the operator has the ability to tailor the compartment to “fit”. A high quality comfortable seat can be adjusted for the operator’s weight. In addition, the seat can be adjusted laterally, as well as for the angle of the backrest. These adjustments, coupled with a tilting steer column, ensure a comfortable position for any operator. The left foot rests on...

Open the catalog to page 9

European Manufacturing: Crown Gabelstapler GmbH & Co. KG Roding, Germany www.crown.com ESR 5000 SPEC GB 07/10, 10 M03465-006-03 Printed in Germany DIN EN ISO 9002 C
