Mid Level Order Pickers LP 3500

Mid Level Order Pickers LP 3500

Product catalog summary

General Information
Manufacturer: Crown Equipment Corporation
Model: LP 3510-1.0, LP 3520-1.0
Power: Electric
Operator Type: Order Picker
Load Capacity: 1.0 ton
Load Centre: 600 mm
Wheel Base: 1285 mm

Weights
Weight without battery: 1227-1437 kg
Axle Load with load (front/rear): 374-440 kg / 2316-2501 kg
Axle Load without load (front/rear): 940-1115 kg / 654-830 kg

Tyres
Type: Vulkollan
Wheel Size (front/rear): Ø 310 x 100 mm / Ø 200 x 105 mm
Track Width (rear): 820 mm

Dimensions
Mast Collapsed Height: 1420-2300 mm
Lift Height: 1025-2440 mm
Mast Extended Height: 2380-3855 mm
Overall Length: 2880-2948 mm
Overall Width: 950 mm
Fork Dimension: 35 x 100 x 1230 mm (standard)

Performance
Travel Speed with/without load: 9.5 / 10.5 km/h
Lift Speed with/without load: 0.12 / 0.16 m/s
Lowering Speed with/without load: 0.15 / 0.22 m/s
Service Brake: Electro-magnetic

Motors
Traction Motor: 1.5 kW
Lift Motor: 2.5 kW
Battery Voltage: 24 V
Battery Capacity: 450-625 Ah

Standard Equipment
AC traction and steering motor, CAN-Bus technology, electronic steering, speed reduction in turns, proportional lift/lowering, frictionless and regenerative electric braking, LCD display with PIN code access, cushioned floor mat, emergency power disconnect, Vulkollan drive tyre and load wheels.

Optional Equipment
Aisle guide rollers, battery compartment rollers, freezer conditioning, work lights, fork length and spread options.

Human Factor
Designed for visibility and stability, with features like a clear-view mast, low-profile power unit, cushioned floor mat, and a presence switch for operator comfort and safety.

Control System
Utilizes CAN-Bus for communication and control, ensuring safe and smooth truck movements.

Drive System
AC traction system provides high travel speeds and strong acceleration with regenerative braking.

Safety Regulations
Conforms to European safety standards. Performance may vary based on conditions.

Catalog excerpts

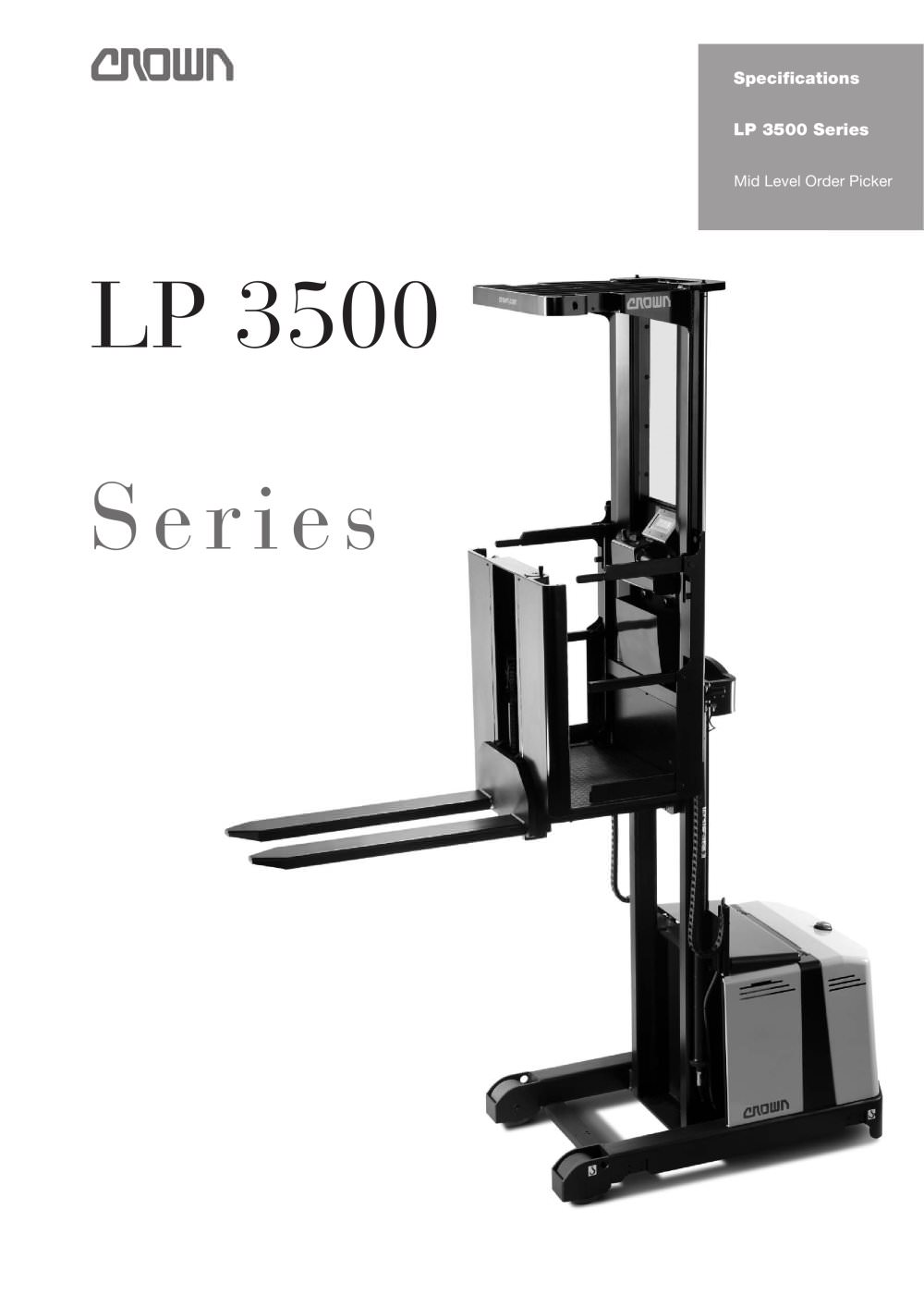

C Specifications LP 3500 Series Mid Level Order Picker LP 3500 Series

Open the catalog to page 1

LP 3500 Series Specifications General Information 1.1 Manufacturer Crown Equipment Corporation 1.2 Model LP 3510-1.0 LP 3520-1.0 1.3 Power electric 1.4 Operator Type order picker 1.5 Load Capacity Q t 1.0 1.6 Load Centre c mm 600 1.8 Load Distance raised x mm 153 165* 1.9 Wheel Base raised y mm 1285 Weights 2.1 Weight less battery kg 1227 1417 1297 1437 2.2 Axle Load w. load, front kg 374 440 368 399 w. load, rear kg 2316 2445 2392 2501 2.3 Axle Load w.o. load, front kg 946 1115 940 980 w.o. load, rear kg 654 675 730 830 Tyres 3.1 Tyres Type Vulkollan 3.2 Wheel Size front mm Ø 310 x 100 3.3 rear...

Open the catalog to page 3

Electric System/Batteries 24-volt electrical system with nominal battery capacities from 450 Ah to 625 Ah. The battery can be removed horizontally with optional battery compartment rollers. Standard Equipment 1. AC traction and steering motor and control system 2. CAN-Bus technology 3. Electronic steering 4. Speed reduction in turns 5. Linear speed control for gradual reduction in speed as platform is raised 6. Proportional lift/lowering 7. Braking system offers frictionless and regenerative electric braking 8. Key switch 9. Operator controls on mast side 10. Information Display • LCD display...

Open the catalog to page 4
