Crowcon Detection Instruments
Sprint V flue gas analyser

Sprint V flue gas analyser

Product catalog summary

Overview
The Sprint V range of multifunction flue gas analysers is designed for heating engineers to safely install, commission, and service boilers and combustion systems. It measures various gases such as oxygen, carbon monoxide, nitric oxide, and carbon dioxide, and calculates excess air and CO/CO₂ ratios. The device is compact, lightweight, and user-friendly.

Key Features

Compliant with BS 7967 safety standards.
Large display with a mobile phone-style menu for easy access to five test modes.
Supports flue gas analysis, gas system leak testing, draught and differential pressure testing, CO room testing, and differential temperature testing.
Holds up to 10 different fuel types in its database, adaptable to specific area requirements.

Product Benefits

Smart Purge technology removes acidic gases during tests.
Split chamber water trap and easily changeable filter for protection.
Magnetic mounts for hands-free operation and optional IR-linked printer for report printing.
Stores up to 200 reports, downloadable via USB or Bluetooth.

Specifications

Gas measurement ranges include oxygen (0-25%), carbon monoxide (0-4,000ppm), nitric oxide (0-1,000ppm), and carbon dioxide (0-25%).
Pressure measurement range up to ±200mBar.
Temperature range from -50ºC to 1100ºC.
CO/CO₂ ratio, excess air, and efficiency calculations.
Weight: 440g; Dimensions: 75 x 168 x 65mm.
Operating temperature: -10ºC to 50ºC; Humidity: 0 to 95% non-condensing.
Battery life: 9 hours; Recharge time: 6 hours.
IP42 enclosure with protective rubber boot and built-in magnet.

Additional Features

Bluetooth communication for data transfer to PDA and PC.
Alarm for carbon monoxide danger levels.
Smart purge with intelligent pump speed control.
Comes with a durable carry case and standard efficiency flue probe.

Contact Information
For more information, contact Crowcon at their UK, US, NL, or SG offices.

Catalog excerpts

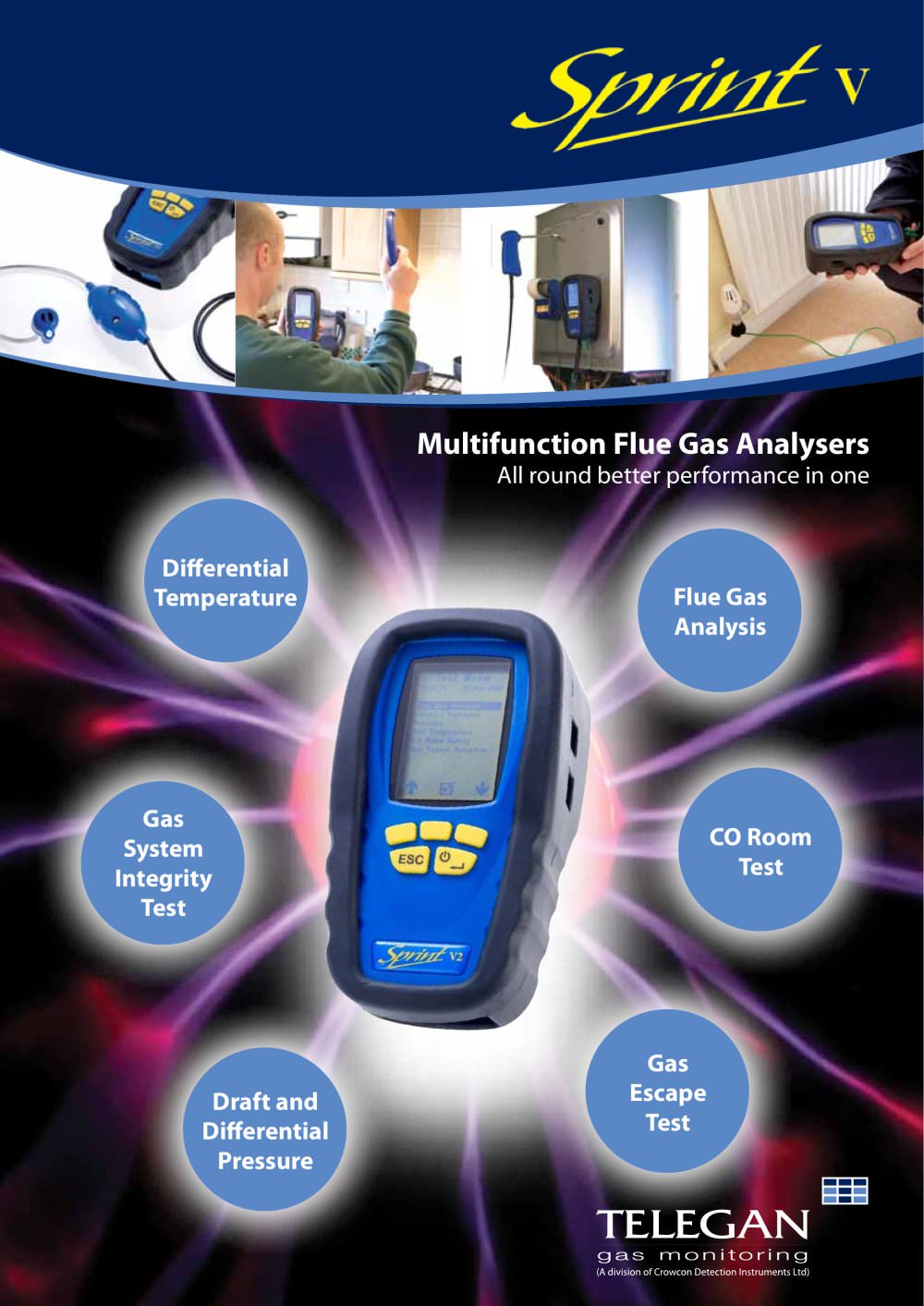

Multifunction Flue Gas Analysers AN round better performance in one GAN gas monitoring (A division of Crowcon Dtection Instruments Ltd)

Open the catalog to page 1

Multifunction flue gas analysers Reflecting over 30 years exprience in flue gas analysis, the Sprint V oxygen, carbon monoxide, nitric oxide and carbon dioxide, plus excess range is designed to assist heating engineers in the safe installation, air and CO/CO2 ratio calculation, Sprint V is compact, lightweight and commissioning and servicing of boilers and other combustion systems. easy to use. Offering measurement of the full range of relevant gases, including Product Benefits Fully compliant with current safety standard BS 7967, a large display and graphical mobile phone style menu gives quick...

Open the catalog to page 2

To minimise servicing and maximise engineer's time, Sprint V's Smart Purge technology removes potentially acidic gases while other tests are conducted. Further protection is provided via a unique, split chamber water trap that operates in any orientation and an easily changed filter. These are provided as standard with the flue gas probe, along with an insertion locator that aids correct sampling. Magnetic mounts incorporated in Sprint V's protective rubber boot enable handsfree operation, a feature that extends to the optional IR linked printer. This allows engineers to print reports with customer's...

Open the catalog to page 3

Spcification Weight 440g (0.97 lbs) Dimensions 75 x 168 x 65mm (3 x 6.6 x 2.6 inches) Operating temprature range -10°C to 50°C (14°F to 122°F) Operating humidity range 0 to 95% non-condensing Display Large graphic blue back lit LCD Backlight Intelligent ambient light controlled or settable Operating time 9 hours Recharge time 6 hours Charger/power supply Mains power pack, available with UK, European or US pins, optional vehicle lighter socket lead. (C012096) Charger input voltage 115V or 230V 50/60Hz AC Enclosure - ingress protection IP42 - robust protective rubber boot complete with built in...

Open the catalog to page 4
