Crowcon Detection Instruments
Single Point Gas Sampling System

Single Point Gas Sampling System

Product catalog summary

Overview: Sampling systems are designed for continuous monitoring of toxic and/or flammable gases in environments where fixed-point detectors are impractical. They are used in various applications such as landfill borehole monitoring, building protection, and gas monitoring in biogas pipelines.

Key Features: These systems are cost-effective, easy to install, and maintain. They include self-cleaning operations with dust/water filters and auto-drain functions.

Single Point Sample System: This system monitors gas samples from pipelines or processes using a high-flow pump. It includes flow-fail monitoring devices and an internal flammable gas detector for safety. The system is controlled by a programmable timer and can be monitored via a Gasmaster control panel or provide a 4-20mA signal.

Multi Point Sample System: Similar to the single point system, it can monitor up to 16 sample lines sequentially. It is suitable for buildings, pumping stations, and storage areas. The system includes adjustable sample and purge times and can be monitored via a Gasmaster control panel.

PGSi Programmable Sample System: This versatile system can monitor up to 32 sample lines and is ideal for landfill gas monitoring. It is controlled by an industrial PC with comprehensive datalogging facilities and remote interrogation capabilities.

Air Aspirated Sample System: Designed for hazardous areas, this system uses a vacuum generator to draw gas samples. It is suitable for monitoring flammable gas leaks and oxygen levels in industrial processes.

Mill-Gard CO Detection System: Specifically for coal-fired power stations, this system provides early fire warnings by detecting CO levels. It features high flow pumps, adjustable sample times, and multiple alarm levels.

Specifications: The document provides detailed specifications for each system, including sample lines, gas sensors, dimensions, ingress protection, sample pipe specifications, maximum line length, sensor types, operating temperature, and outputs.

Accessories: Accessories include borehole probes, cooling coils, and sample tubes.

Contact Information: The document lists contact details for Crowcon offices in the UK, USA, Rotterdam, and Singapore.

Catalog excerpts

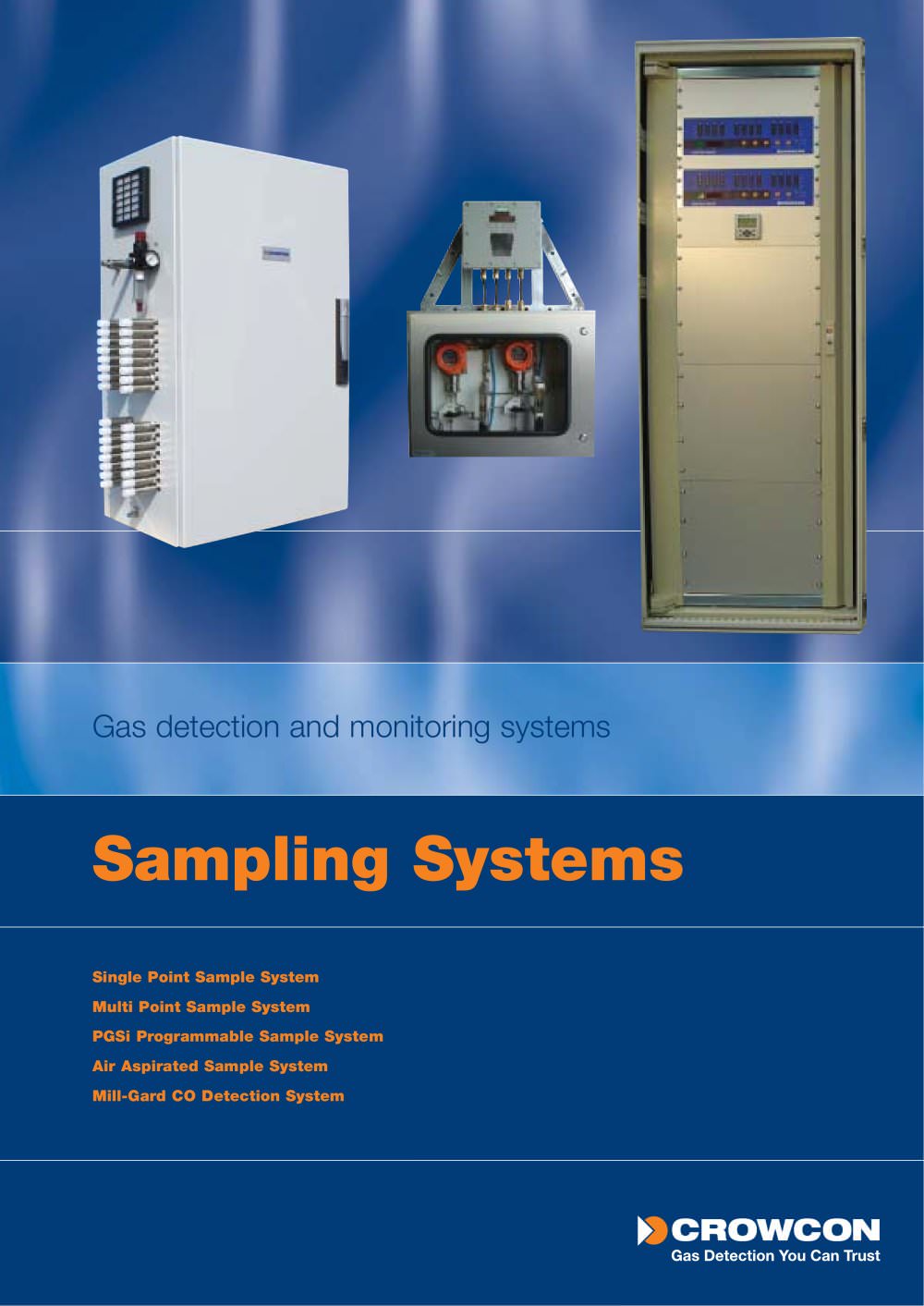

Single Point Sample SystemMulti Point Sample System PGSi Programmable Sample System Air Aspirated Sample System Mill-Gard CO Detection System >

Open the catalog to page 1

Sampling systems provide the ideal solution for permanently monitoring toxic and/or flammable gases inenvironments where fixed-point detectors may prove impractical. Typical applications include:Landfill Borehole MonitoringՕBuilding ProtectionGas Monitoring in Biogas PipelinesՕCoal-Gas Monitoring Flammable Gas Detection in PrintingՕCO > 2 monitoring in Breweries/Distilleriesand Painting ProcessesGas Turbine ProtectionՕCoal Mill Fire DetectionCO Detection in Car Parks and TunnelsAll systems are designed to minimise purchase, installation, operating and maintenance costs:ՕLow purchase cost: multiple...

Open the catalog to page 2

The PGSi is a highly versatile system that can monitor up to 32 separatesample lines on a sequential basis. Operating from Windows XP > TM basedsoftware, the PGSi system is the ideal solution for monitoring landfill gas in boreholes, or for protecting buildings such as retail parks, hospitals and schools built on landfill sites. The system can be adapted to meet virtually any building or personnel protection needs. The sample times for each point are individually adjustable, and can be sequenced in any order. A dual-pump arrangement ensures that samples are presented to the gas sensors as quickly...

Open the catalog to page 3
