Multi Point Continuous Sample System

Multi Point Continuous Sample System
4Pages

Catalog excerpts

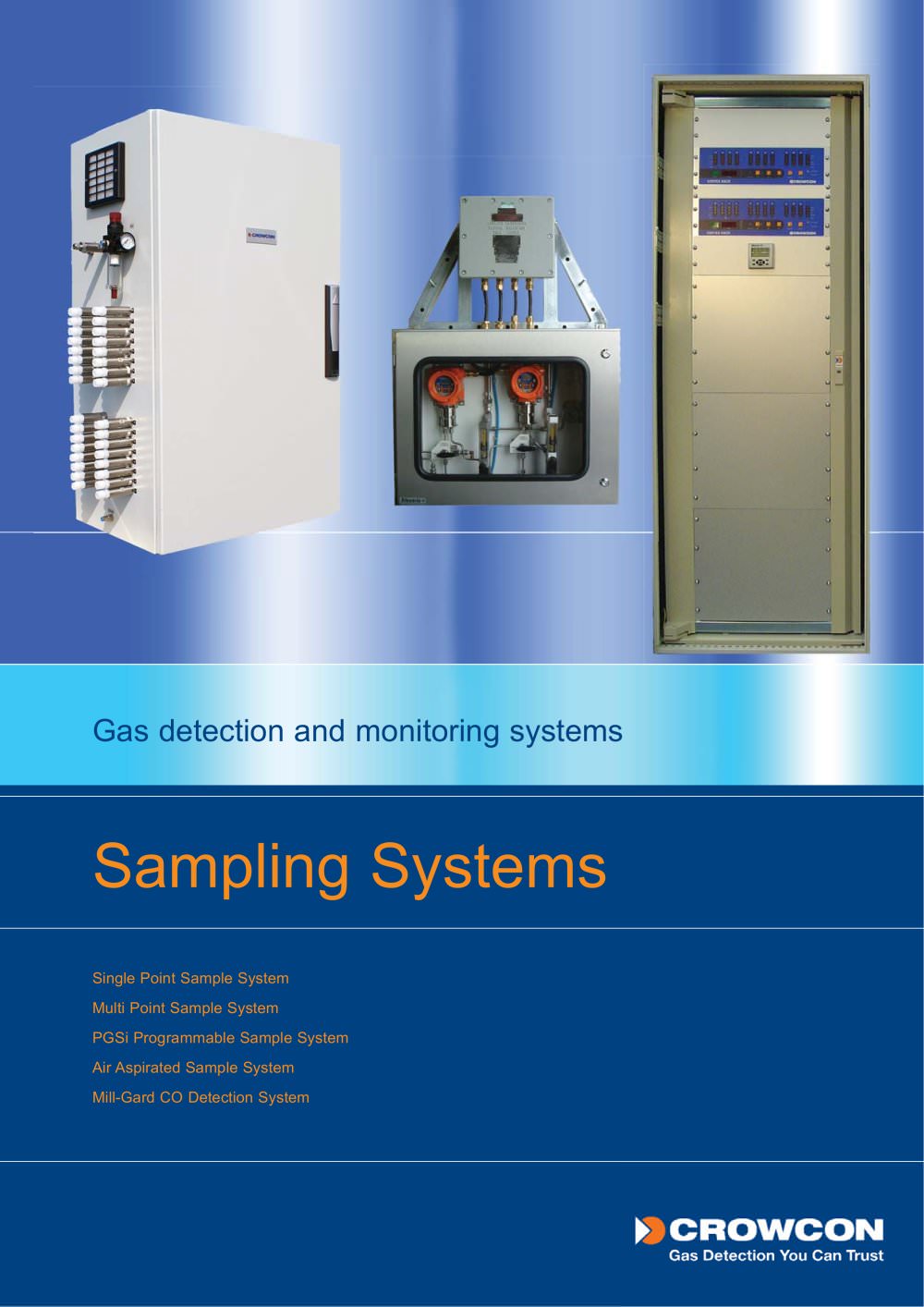

Multi Point Continuous Sample System - 1

Single Point Sample SystemMulti Point Sample System PGSi Programmable Sample System Air Aspirated Sample System Mill-Gard CO Detection System >

Open the catalog to page 1

Multi Point Continuous Sample System - 2

Sampling systems provide the ideal solution for permanently monitoring toxic and/or flammable gases in environments where fixed-point detectors may prove impractical. Typical applications include: Landfill Borehole Monitoring ? Building Protection? Gas Monitoring in Biogas Pipelines ? Coal-Gas Monitoring ? Flammable Gas Detection in Printing ? CO2 monitoring in Breweries/Distilleries and Painting Processes ? Gas Turbine Protection? Coal Mill Fire Detection ? CO Detection in Car Parks and TunnelsAll systems are designed to minimise purchase, installation, operating and maintenance costs: ?...

Open the catalog to page 2

Multi Point Continuous Sample System - 3

The PGSi is a highly versatile system that can monitor up to 32 separate sample lines on a sequential basis. Operating from Windows XPTM based software, the PGSi system is the ideal solution for monitoring landfill gas in boreholes, or for protecting buildings such as retail parks, hospitals and schools built on landfill sites. The system can be adapted to meet virtually any building or personnel protection needs. The sample times for each point are individually adjustable, and can be sequenced in any order. A dual-pump arrangement ensures that samples are presented to the gas sensors as...

Open the catalog to page 3

Multi Point Continuous Sample System - 4

Sample lines 1 1-16 1-32 1 or 2 1-15Gas sensors 1-4 1-4 1-4 1 per sample line 1 per sample lineDimensions 760 x 600 x 350mm 1000 x 600 x 400mm 1000 x 600 x 400mm 1010 x 712 x 285mm 2100 x 800* x 800mm (excluding pipe fittings) (30 x 23.5 x 14 inches) (39.3 x 23.5 x 16 inches) (39.3 x 23.5 x 16 inches) (40 x 28 x 11 inches) (83 x 31.5 x 31.5 inches) > *1600mm for 5-15 point systems Ingress protection Indoor use only Indoor use only Indoor use only IP65 Indoor use onlySample Pipe Specification 10mm o/d, 8mm i/d 10mm o/d, 8mm i/d 10mm o/d, 8mm i/d 6mm o/d, 4mm i/d 10mm o/d, 8mm i/d (1/2 o/d...

Open the catalog to page 4
