Product catalog summary
Overview: The Gasman Personal Single Gas Monitor is a compact and rugged device designed for detecting flammable, oxygen, and toxic gases in challenging environments. It features a robust construction with IP65 compliance, offering a wide range of gas detection capabilities.
Key Features:
  • Simple Operation: True one-button operation with an easy-to-read backlit display for gas diagnostics and operating status.
  • Alarms: Includes a 95dBA audible alarm, twin red/blue visual alarms, and an internal vibrating alarm. It supports two levels of instantaneous alarms and TWA alarms for toxic gases.
  • Robust Design: Made with tough polycarbonate housing and full overmoulding for high impact resistance. It is water and dust resistant to IP65 standards.
  • Flexible Options: Offers flammable, toxic, and oxygen sensor solutions with rechargeable and Li-ion battery versions. It includes extensive data and event logging capabilities.
Specifications:
  • Gas Detection Ranges: Configurable ranges and alarms for various gases, including carbon monoxide, ammonia, carbon dioxide, chlorine, and more.
  • Weight and Dimensions: Varies by gas type, with dimensions of 90 x 48 x 24mm.
  • Response Times: Typical response times are 20 seconds for flammable and toxic gases, and 10 seconds for oxygen.
  • Battery Life: Rechargeable battery lasts a minimum of 12 hours for flammable units, with non-rechargeable options lasting up to 2 years.
  • Operating Conditions: Suitable for temperatures from -20°C to +65°C and humidity levels of 20-90% RH.
Approval and Standards:
  • Complies with various international safety standards, including ATEX, IECEx, and CSA for different regions.
  • Meets operational standards such as EN50270, EN50271, and IEC61508.
Additional Features:
  • PC Interface: RS232 connection with optional USB converter for data management.
  • Calibration: Routine calibration possible using Portables PC software or Checkbox IMH.
  • Charging Options: Includes single unit chargers, comms chargers, multichargers, and vehicle chargers.
Contact Information: Available for purchase and support in the UK, US, Netherlands, Singapore, and China.
See more

Catalog excerpts

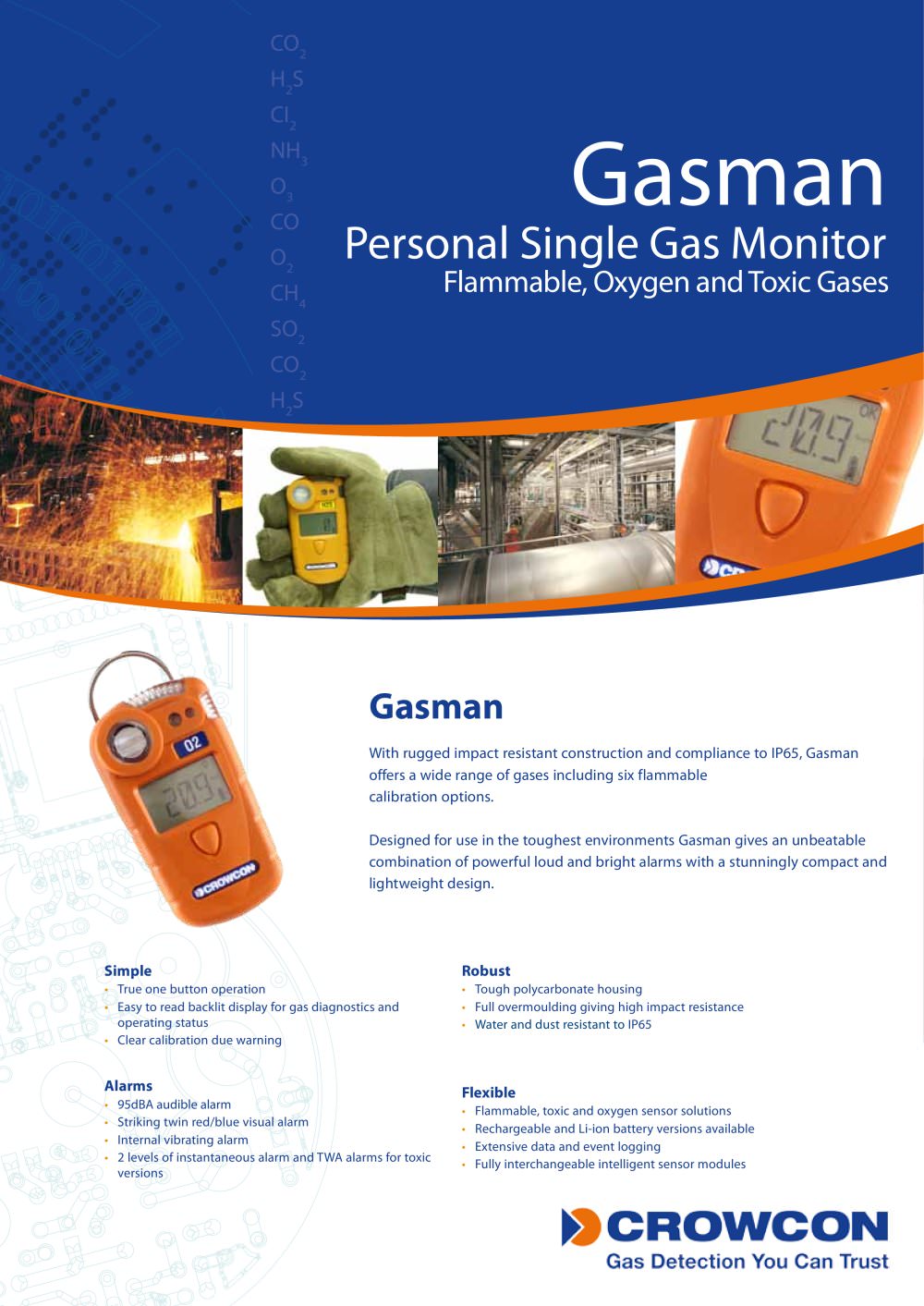

Gasman-1

CO2 H2S CI2 Gasman NH3 O3 CO O2 Personal Single Gas Monitor Flammable, Oxygen and Toxic Gases CH4 SO2 CO2 H2S Gasman With rugged impact resistant construction and compliance to IP65, Gasman offers a wide range of gases including six flammable calibration options. Designed for use in the toughest environments Gasman gives an unbeatable combination of powerful loud and bright alarms with a stunningly compact and lightweight design. Simple Robust • True one button operation • Easy to read backlit display for gas diagnostics and operating status • Clear calibration due warning • Tough polycarbonate housing • Full overmoulding giving high impact resistance • Water and dust resistant to IP65 Alarms Flexible • • • • 95dBA audible alarm Striking twin red/blue visual alarm Internal vibrating alarm 2 levels of instantaneous alarm and TWA alarms for toxic versions • • • • Flammable, toxic and oxygen sensor solutions Rechargeable and Li-ion battery versions available Extensive data and event logging Fully interchangeable intelligent sensor modules

 Open the catalog to page 1
Gasman-2

Gasman is a range of rugged, compact single gas personal monitors designed for use in the toughest environments. Required ranges and alarms may vary by country and application and these can be configured as required. Each gas channel can have two instantaneous alarm levels set. Toxic units also have Time Weighted Average Flammable gas calibration is available for methane, propane, butane, pentane, hydrogen and ethylene as standard. Gasman is also available in a safe area C02 version offering 0-5% carbon dioxide measurement. Typical ranges and alarms Typical Response Audible Alarms Visible Alarms...

 Open the catalog to page 2
