Detective+ Temporary Area Monitor

Detective+ Temporary Area Monitor

Detective+ Temporary Area Monitor

Product catalog summary
Overview: Detective+ is a transportable multi-gas area monitor designed for effective gas hazard detection. It can be used individually or linked with other units to provide a comprehensive monitoring solution. The device is rugged, water, and impact-resistant, making it suitable for various environments.
Key Features:
  • Versatility: Equipped with infra-red sensors for detecting high flammable gas levels and CO2, unaffected by poisoning. It includes a built-in pump for fast response and sensor protection.
  • Alarm System: Features a loud omni-directional siren (104 dBA) and high-intensity red LED clusters for visual alarms. All linked units indicate an alarm sensed by any unit, with faster LED flashes on the sensing unit.
  • Rugged Design: Tripod construction protects detectors even if overturned, with raised detectors to prevent water ingress. Folding or fixed leg options are available for easy storage and transport.
  • Battery Life: Operates up to 60 hours with an optional high-capacity battery pack. Built-in charging circuit with dual rate options for safe area operation.
Specifications:
  • Weight and Dimensions: 7.5 kg, 640 h x 455 w x 455 d mm.
  • Measuring Ranges: Supports up to four gas measurement channels with configurable alarm levels for various gases like flammable gas, oxygen, hydrogen sulphide, carbon monoxide, etc.
  • Sensor Life: Flammable sensors last 5 years, toxic sensors 3 years, oxygen sensors 2 years minimum, and IR sensors over 5 years.
  • Operating Conditions: Temperature range from -20°C to +40°C, humidity 0-95% RH non-condensing.
  • Approvals and Standards: Complies with ATEX, EN, UL standards, and has IP65 ingress protection.
Additional Features:
  • Data Logging: Adjustable sample rate with a maximum of 6000 data points per channel. Logs events, user, and site data.
  • PC Interface: Built-in interface for connection to a computer for setting alarms, data logging, and exporting data to spreadsheets.
  • Calibration: Can be calibrated using internal menu commands or external management systems.
  • Accessories: Includes baffle plate, interconnecting leads, computer lead, and manual or electric sampling pump options.
Contact Information: Crowcon Detection Instruments Ltd has offices in the UK, USA, Netherlands, and Singapore, providing contact details for each location.
See more

Catalog excerpts

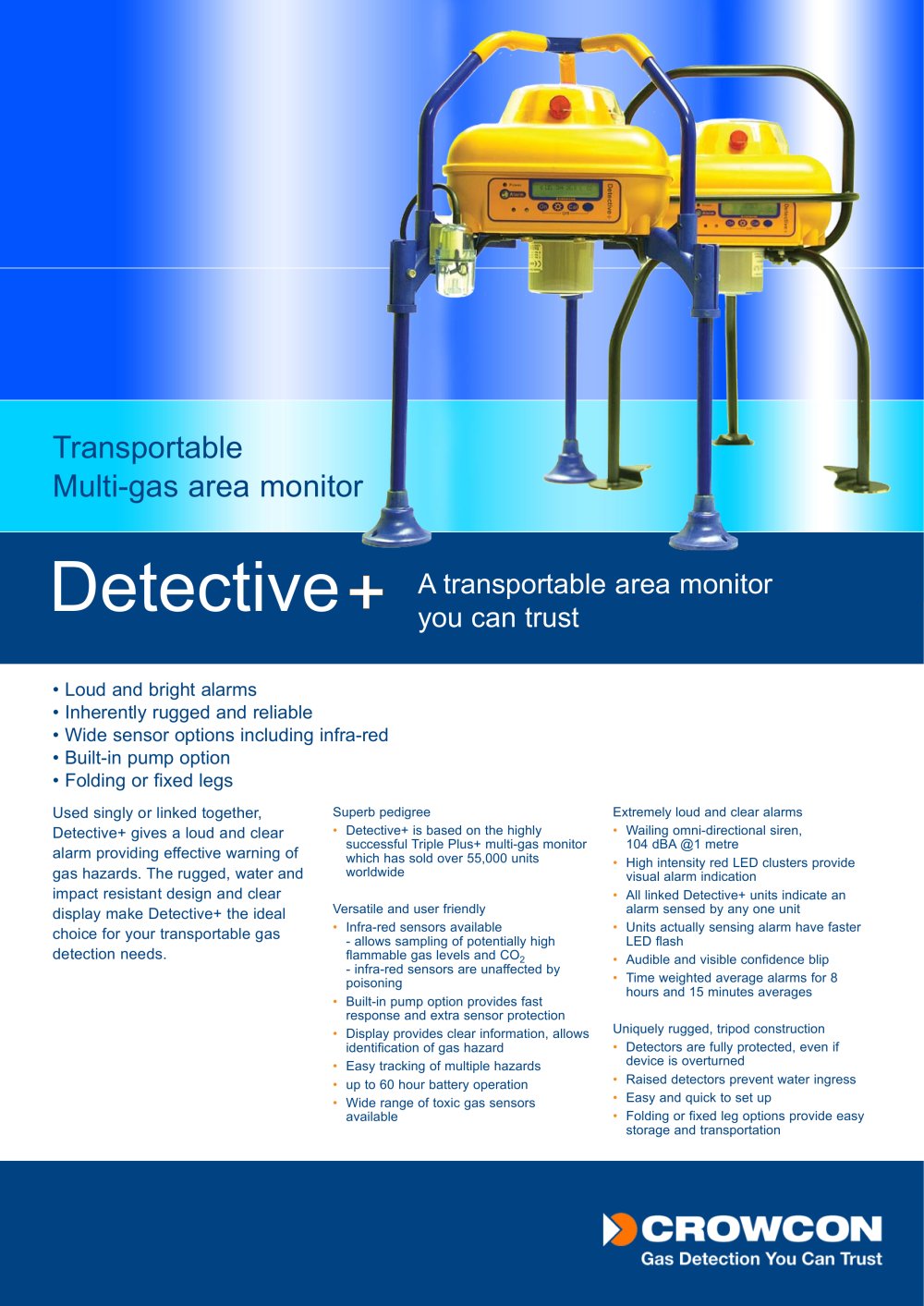

Detective+ Temporary Area Monitor-1

Transportable Multi-gas area monitor m on i to r > A transportable area monitor you can trust Loud and bright alarmsՕ Inherently rugged and reliable Wide sensor options including infra-red Օ Built-in pump option Folding or fixed legs Used singly or linked together, Detective+ gives a loud and clear alarm providing effective warning of gas hazards. The rugged, water and impact resistant design and clear display make Detective+ the ideal choice for your transportable gas detection needs. Superb pedigreeՕ Detective+ is based on the highly successful Triple Plus+ multi-gas monitor which has sold over 55,000 units worldwideVersatile and user friendly Infra-red sensors available - allows sampling of potentially high - flammable gas levels and CO 2 - infra-red sensors are unaffected by - poisoningՕ Built-in pump option provides fast response and extra sensor protection Display provides clear information, allows identification of gas hazardՕ Easy tracking of multiple hazards up to 60 hour battery operationՕ Wide range of toxic gas sensors available Extremely loud and clear alarms Wailing omni-directional siren, 104 dBA @1 metreՕ High intensity red LED clusters provide visual alarm indication All linked Detective+ units indicate an alarm sensed by any one unitՕ Units actually sensing alarm have faster LED flash Audible and visible confidence blipՕ Time weighted average alarms for 8 hours and 15 minutes averagesUniquely rugged, tripod construction Detectors are fully protected, even if device is overturnedՕ Raised detectors prevent water ingress Easy and quick to set upՕ Folding or fixed leg options provide easy storage and transportation size="-4">

 Open the catalog to page 1
Detective+ Temporary Area Monitor-2

Weight 7.5 kg (19lb)Dimensions 640 h x 455 w x 455 d mm (25.2 x 17.9 x 17.9 inches)Typical measuring Standard Typical Alarm ranges and alarm Range Levels settings Flammable gas 0 100% LEL 20% LEL (up to four gas Oxygen 0 ֖ 25% 19% & 23% measurement channels) Hydrogen sulphide 0 50 ppm 10 ppm Carbon monoxide 0 ֖ 500 ppm 35 ppm Sulphur dioxide 0 10 ppm 2 ppm Chlorine 0 ֖ 5 ppm 0.5 ppm Nitrogen dioxide 0 10 ppm 2 ppm Phosphine 0 ֖ 5 ppm 0.5 ppm Ammonia 0 50 ppm 25 ppm Ammonia 0 ֖ 1000 ppm N/A Hydrogen (non- 0 2000 ppm N/A flammable levels) Hydrogen cyanide 0 ֖ 25 ppm 10 ppm Hydrogen chloride 0 10...

 Open the catalog to page 2
