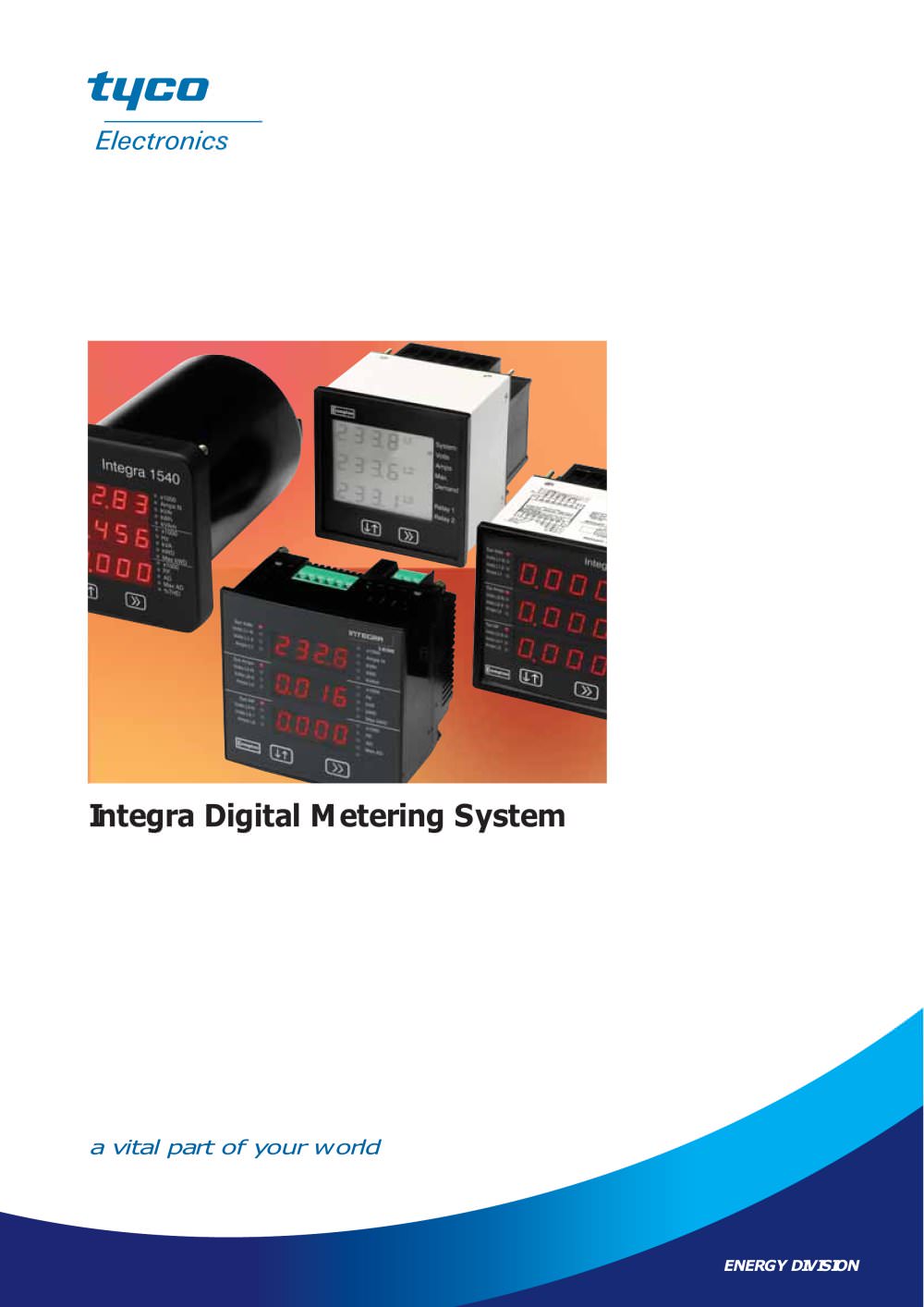

ENERGY DIVISION Integra Digital Metering System a vital part of your world

1 Integra Ci3 Digital Metering System The Integra Ci3 digital metering system (dms) represents the first model of a new generation of digital metering systems designed to complement the current Crompton Instruments Integra series. The Integra Ci3 meter is an accurate and cost effective solution for measurement and display of all major electrical and power quality parameters. Its easy programming, mounting and user-friendly navigation make the Integra Ci3 dms an ideal choice for customers who require reliable energy measurement. Integra Ci3 dms is built to high quality standards utilising...

2 Specifications Input Nominal input voltage 100-289V AC L-N (173-500V AC L-L) Max. continuous input 120% of nominal overload voltage Max. short duration 2 x range maximum (1 second application input voltage repeated 5 times at 5 minute intervals) Nominal input voltage burden < 0.2VA per phase Nominal input current 5A AC rms Max. continuous input 120% of nominal overload current Max. short duration 10 x nominal (1 second application repeated 5 input current times at 5 minute intervals) Frequency 45-66Hz Auxiliary Operating range 110-400V AC nominal +/-10% (99-440V AC absolute limits) or...

While Tyco Electronics and its affiliates referenced herein have made every reasonable effort to ensure the accuracy of the information contained in this catalogue, Tyco Electronics cannot assure that this information is error free. For this reason, Tyco Electronics does not make any representation or offer any guarantee that such information is accurate, correct, reliable or current. Tyco Electronics reserves the right to make any adjustments to the information at any time. Tyco Electronics expressly disclaims any implied warranty regarding the information contained herein, including, but...

DIN Integra 1630 Series Multifunction Integra 1630 digital metering system provides high accuracy 0.2% measurement, display and communication of all major electrical and power quality parameters including total harmonic distortion (THD) measurement up to the 31st harmonic. To suit user requirements, the range includes single-phase, three-phase three-wire and three-phase four-wire capability, all selectable at the point of installation. This DIN 96 panel mounted enclosure offers simple programming and display of up to 35 electrical measurement parameters via a simple menu-driven user...

System Outputs Pulsed Output Integra 1630 digital metering system offers optional single or dual pulsed outputs. Each output can be user programmed to represent import or export kWh, import or export kVArh or kVAh. The output pulses can be customised by both user programmable pulse rate divisor and pulse width. The solid state output relays have fully isolated volt-free connections via screw-clamp terminals. Digital Communications RS485 Modbus RTU Integra 1630 digital metering systems offer an RS485 communication port for direct connection to SCADA systems using the Modbus RTU protocol or...

3 Programmable Parameters Parameter Range Password 4-digit 0000 - 9999 CT primary current Maximum 9999A ** CT Secondary Current: 5A (1A option) VT primary voltage Maximum 400kV ** VT secondary voltage Nominal input voltage ** maximum VT or CT ratios are limited so that the combination of primary voltage and current do not exceed 360MW at 120% of relevant input Demand integration time 8, 15, 20, 30, 60 minutes 3 independent resets Demands and maximum demands Energy registers Hours run Pulse output duration 60, 100, 200 milliseconds Pulse rate divisors 1, 10, 100, 1000 RS485 baud rate 4.8,...

4 Measuring Ranges Voltage 80-120% of nominal (functional 5-120%) Current 5-120% of nominal Frequency 45-66Hz Power factor 0.8 capacitive–1–0.8 inductive (functional 4 quadrant, 0-1 lag/lead) THD Up to 31st harmonic 0-40% Measured voltage >5% of range Measured current >5% of nominal Full accuracy of voltage >25% of range Full accuracy of current >25% of nominal Energy 7-digit resolution Reference Conditions Ambient temperature 23 ±1°C Input frequency 50 or 60Hz ±2% Input waveform Sinusoidal (distortion factor < 0.005) Auxiliary supply voltage Nominal ±1% Auxiliary supply frequency Nominal...

5 Product Codes Wiring I N T – – – – – – Product System type Input Input Auxiliary Options family v i v 16 30 –LED DIN96 L –57.7–139 L–N 5 –5A L –12–48V dc 000 - No option (100–240 L–L) 1 –1A M –100–250V 010 - Modbus® Low User selectable M –140–277 L–N 100 - One pulse profile system type (241–480 L–L) 110 - One pulse & ModbusTM Features as Factory default 200 - Two pulse specified - 4-wire 210 - Two pulse & ModbusTM 050 - Profibus DPTM 250 - Two pulse & Profibus DPTM 070 - ModbusTM TCP X X X X X X X X X X Option Code Description OPT-1630-M- 010 Modbus communications card with 100-250V...

6 Integra 1630 DMS Dimensions Modbus TCP Option Dimensions Panel Cut Out Profibus Option Dimensions 3.62” 92mm 3.62” PANEL CUT-OUT 92mm MAX PANEL THICKNESS 0.19”, 5MM

7 Product Codes Product code Ratio range VA at VA at VA at CL 3 CL 1 CL 0.5 PE201 50/5 1.5 - - PE201 60/5 - 1 - PE201 80/5 - 2 - PE201 100/5 - 2.5 - PE201 200/5 - 7.5 - PE201 250/5 - 7.5 - PE301 75/5 1 - - PE301 80/5 1 - - PE301 100/5 - 1 - PE301 125/5 - 1 - PE301 150/5 - 1 - PE301 200/5 - 2.5 - PE301 250/5 - 2.5 - PE301 300/5 - 2.5 - PE301 400/5 - 5 - PE301 500/5 - 5 - PE301 600/5 - 5 - PE401 150/5 2.5 - - PE401 200/5 - 2.5 - PE401 300/5 - 2.5 - PE401 400/5 - 5 - PE401 500/5 - 5 - PE401 600/5 - 7.5 - PE401 750/5 - 7.5 - PE401 800/5 - 7.5 - CT Accessories Crompton Instruments also offer a...

1 Tegra 710 and 810 Digital Metering System The Tegra 710 and 810 multi-function digital metering systems display and communicate major electrical parameters. To suit user requirements the range includes single-phase, three-phase three-wire and three-phase four-wire capabilities under low voltage with unbalanced loads. Operation The digital meters are available in 4 module DIN-rail or DIN 72 panel mounted enclosure and display up to 57 electrical parameters including the true rms values, selectable CT and VT ratios and monitor current, voltage, power factor, phase angle, active/reactive...
