Crescocito CPR 08

Product catalog summary

Overview: The CPR 08A is a low-pressure, low-flow pressure regulator designed for precise control of paint supply. It is pilot air operated and features an internal design that minimizes the use of cleaning agents due to its small internal volume and unique construction.

Key Features:

Constructed with high-grade stainless steel for all wetted parts, ensuring increased longevity.
Large diaphragm diameter enhances sensitivity and accuracy.
Equipped with dual diaphragms, including a Teflon diaphragm for fluid function.
Compatible with various paint materials, including water-based, solvent, and UV materials.
Available in multiple sizes and types of fittings for fluid connections.

Technical Specifications:

Housing: Stainless Steel
Cover: Treated Aluminium
Fittings: Stainless Steel
Sealings: Perflour rubber, Teflon
Maximum Pressure: 8 bar
Paint Hose Sizes: 4, 6, 8, 9, 10, 12 mm
Fitting Types: Straight or angled connectors
Pilot Air Hose Size: 6/4 mm
Part Number: 242 008 000
Approvals: CE, Atex

Catalog excerpts

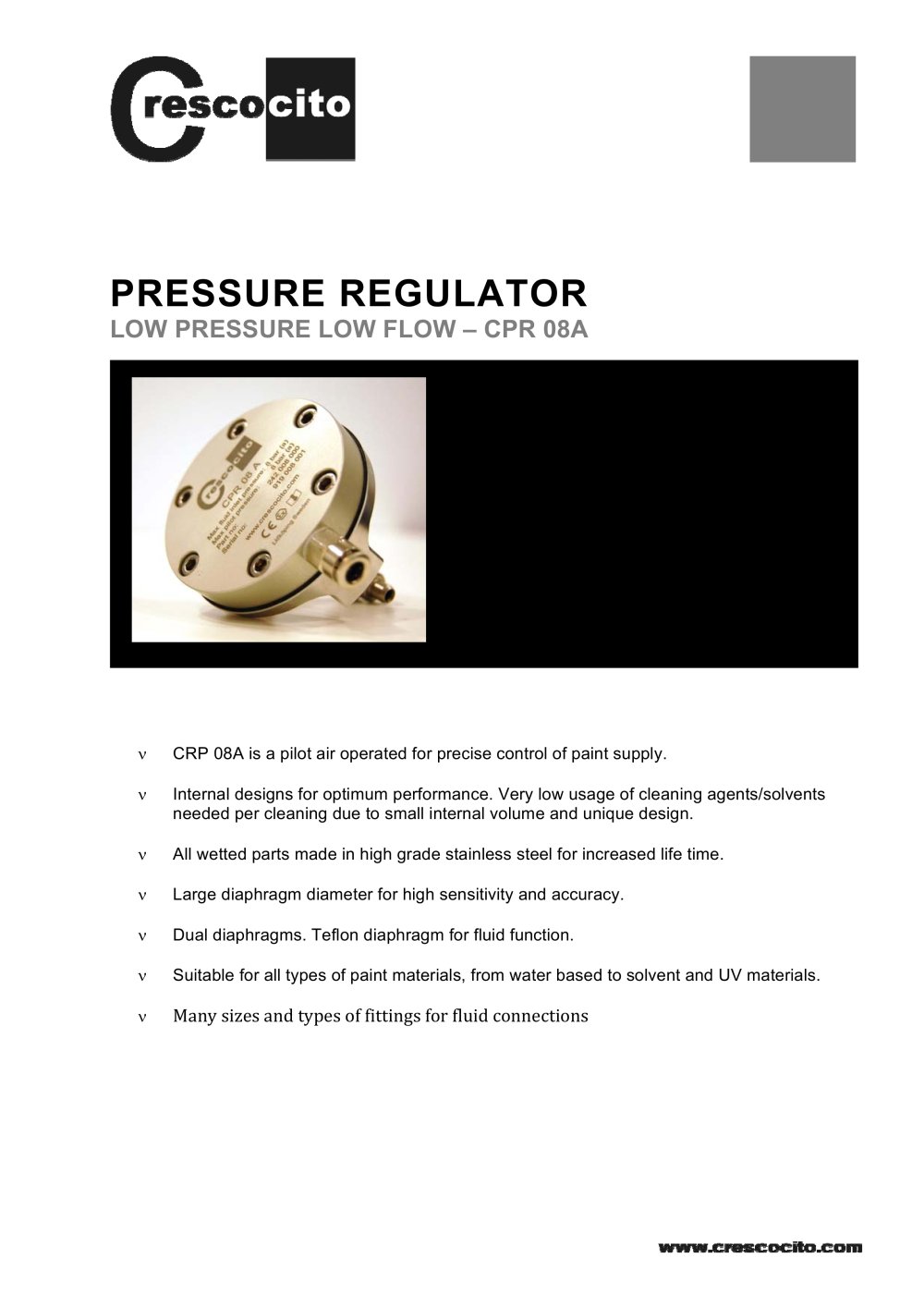

CRP 08A is a pilot air operated for precise control of paint supply. Internal designs for optimum performance. Very low usage of cleaning agents/solvents needed per cleaning due to small internal volume and unique design. All wetted parts made in high grade stainless steel for increased life time. Large diaphragm diameter for high sensitivity and accuracy. Dual diaphragms. Teflon diaphragm for fluid function. Suitable for all types of paint materials, from water based to solvent and UV materials. >

Open the catalog to page 1

Housing Stainless Steel Cover Treated Aluminium Fittings Stainless Steel Sealings Perflour rubber, Teflon Max pressure 8 bar Size of paint hoses 4,6,8,9,10,12 mm Type of fittings Straight or angled connectors Size of pilot air hose 6/4 mm Part number 242 008 000 Approvals CE, Atex >

Open the catalog to page 2
