Millimeter Wave Coupled Cavity TWT Series
2Pages

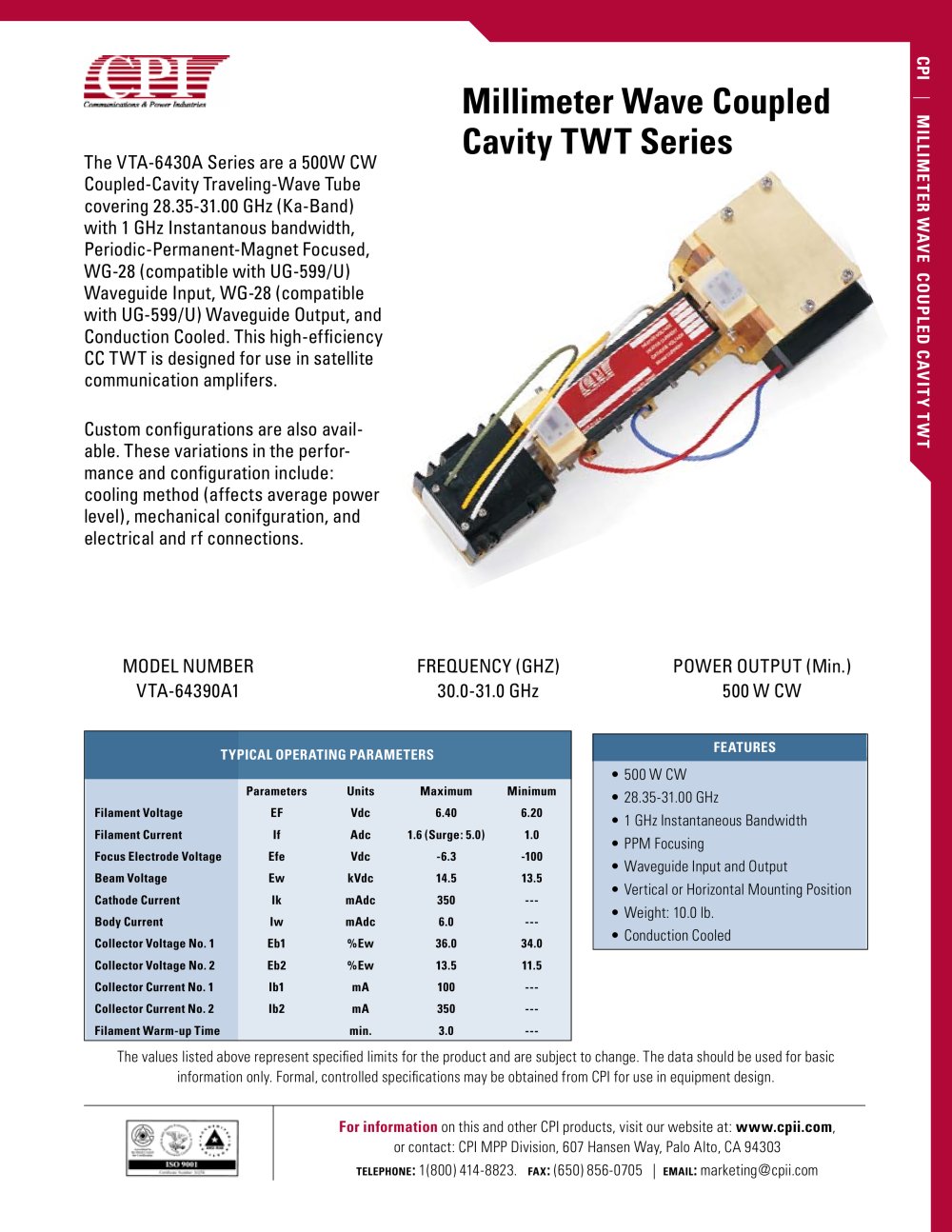

The VTA-6430A Series are a 500W CW Coupled-Cavity Traveling-Wave Tube covering 28.35-31.00 GHz (Ka-Band) with 1 GHz Instantanous bandwidth, Periodic-Permanent-Magnet Focused, WG-28 (compatible with UG-599/U) Waveguide Input, WG-28 (compatible with UG-599/U) Waveguide Output, and Conduction Cooled. This high-efficiency CC TWT is designed for use in satellite communication amplifers. Custom configurations are also available. These variations in the performance and configuration include: cooling method (affects average power level), mechanical conifguration, and electrical and rf connections. Millimeter Wave Coupled Cavity TWT Series 4CW50,000J For information on this and other CPI products, visit our website at: www.cpii.com, or contact: CPI MPP Division, 607 Hansen Way, Palo Alto, CA 94303 telephone: 1(800) 414-8823. fax: (650) 856-0705 | email: marketing@cpii.com The values listed above represent specified limits for the product and are subject to change. The data should be used for basic information only. Formal, controlled specifications may be obtained from CPI for use in equipment design. CPI | Millim eter Wave coupled cavit y twt TYPICAL OPERA TING PARA METER S Parameters U nits Maximum Minimum Filament Voltage E F V dc 6.40 6.20 Filament Current If A dc 1.6 (Surge: 5.0) 1.0 Focus Electrode Voltage E fe V dc -6.3 -100 Beam Voltage E w kVdc 14.5 13.5 Cathode Current Ik mAdc 350 --- Body Current Iw mAdc 6.0 --- Collector Voltage No. 1 E b1 %Ew 36.0 34.0 Collector Voltage No. 2 E b2 %Ew 13.5 11.5 Collector Current No. 1 Ib1 mA 100 --- Collector Current No. 2 Ib2 mA 350 --- Filament Warm-up Time min. 3.0 --- FEA TURE S MODEL NUMBER FREQUENCY (GHZ) POWER OUTPUT (Min.) VTA-64390A1 30.0-31.0 GHz 500 W CW • 500 W CW • 28.35-31.00 GHz • 1 GHz Instantaneous Bandwidth • PPM Focusing • Waveguide Input and Output • Vertical or Horizontal Mounting Position • Weight: 10.0 lb. • Conduction Cooled

Millimeter Wave Coupled Cavity TWT Series 4CW50,000J For information on this and other CPI products, visit our website at: www.cpii.com, or contact: CPI MPP Division, 607 Hansen Way, Palo Alto, CA 94303 telephone: 1(800) 414-8823. fax: (650) 856-0705 | email: marketing@cpii.com The values listed above represent specified limits for the product and are subject to change. The data should be used for basic information only. Formal, controlled specifications may be obtained from CPI for use in equipment design. CPI | Millim eter Wave coupled cavit y twt VTA-6430A1 Po (dBm) 56.00 56.20 56.80...
