Klystron HPAs K3C

Product catalog summary

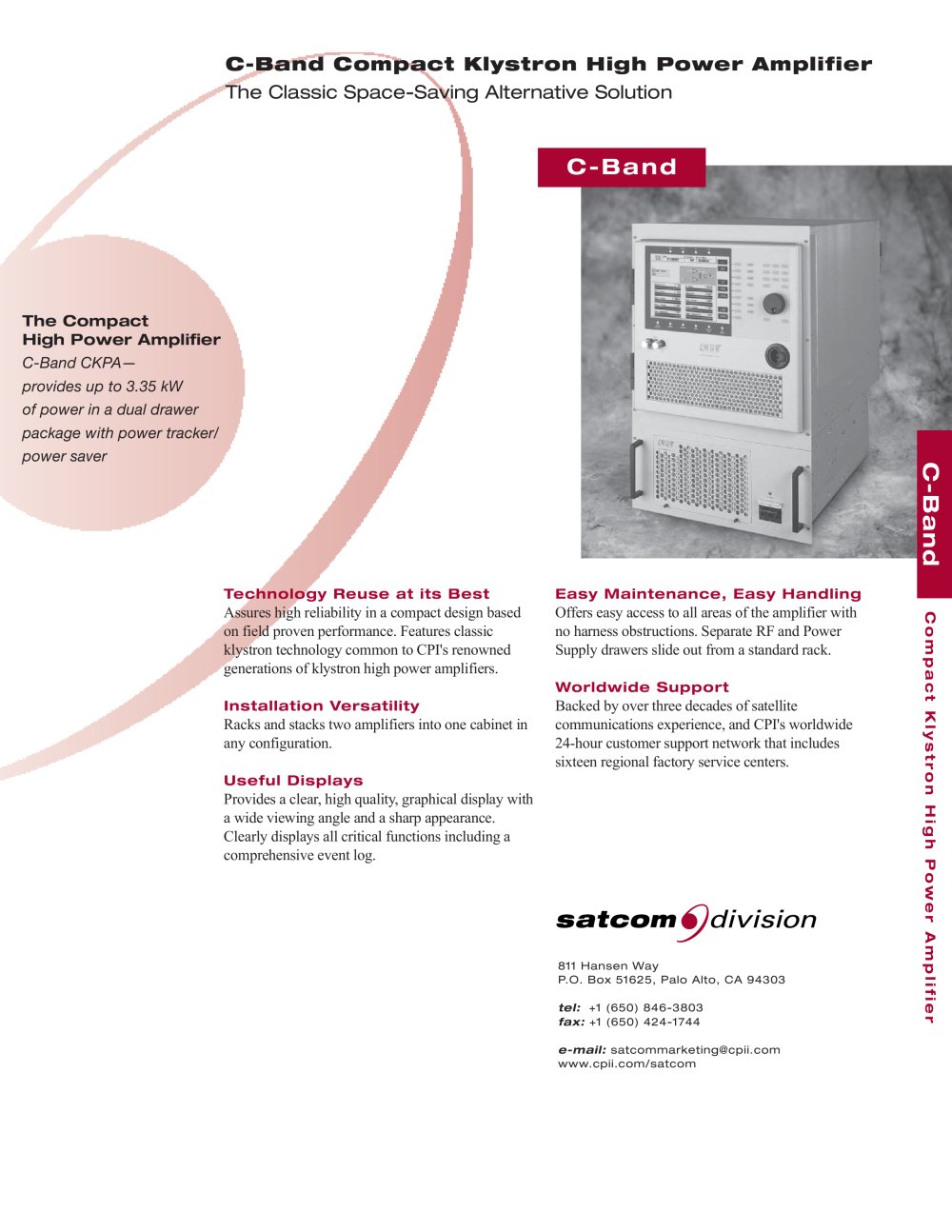

Overview: The C-Band Compact Klystron High Power Amplifier (CKPA) is a space-saving solution providing up to 3.35 kW of power in a dual drawer package. It features a power tracker/power saver and is designed for high reliability with proven klystron technology.

Key Features:

Compact design with high reliability based on field-proven performance.
Installation versatility with the ability to rack and stack two amplifiers into one cabinet.
Graphical display for clear visibility of critical functions and event logs.
Easy maintenance with accessible RF and Power Supply drawers.
Worldwide support with a 24-hour customer support network and multiple service centers.

Specifications:

Electrical: Frequency ranges from 5.850 to 6.425 GHz, with a klystron power output of up to 3.35 kW. The amplifier output is 2.6 to 2.9 kW at the flange. It offers power adjustability from 0 to -20 dB with typical resolution of ±0.1 dB.
Mechanical: RF input connection is Type N female, and RF output connection is CPR-137 F flange. The RF drawer dimensions are 19 x 21 x 28.75 inches, and the PS drawer is 19 x 8.75 x 24 inches.
Environmental: Operating temperature ranges from -10° to +50°C, with a relative humidity of 95% non-condensing. It can operate at altitudes up to 10,000 ft.

Options:

Motorized Channel Selector
Remote Control Panel
Protection Switching
Low Phase Noise
Linearizer
L-Band Block Upconverter (BUC)
Ethernet Interface
Variable Speed Blower

Additional Notes: Specifications are subject to change without notice. Users are advised to check CPI's website for the most current data sheet and contact CPI for system design considerations.
