Indoor TWTAs VZU-6997AX
1 / 2 PagesView full catalog
Indoor TWTAs VZU-6997AX
Product catalog summary

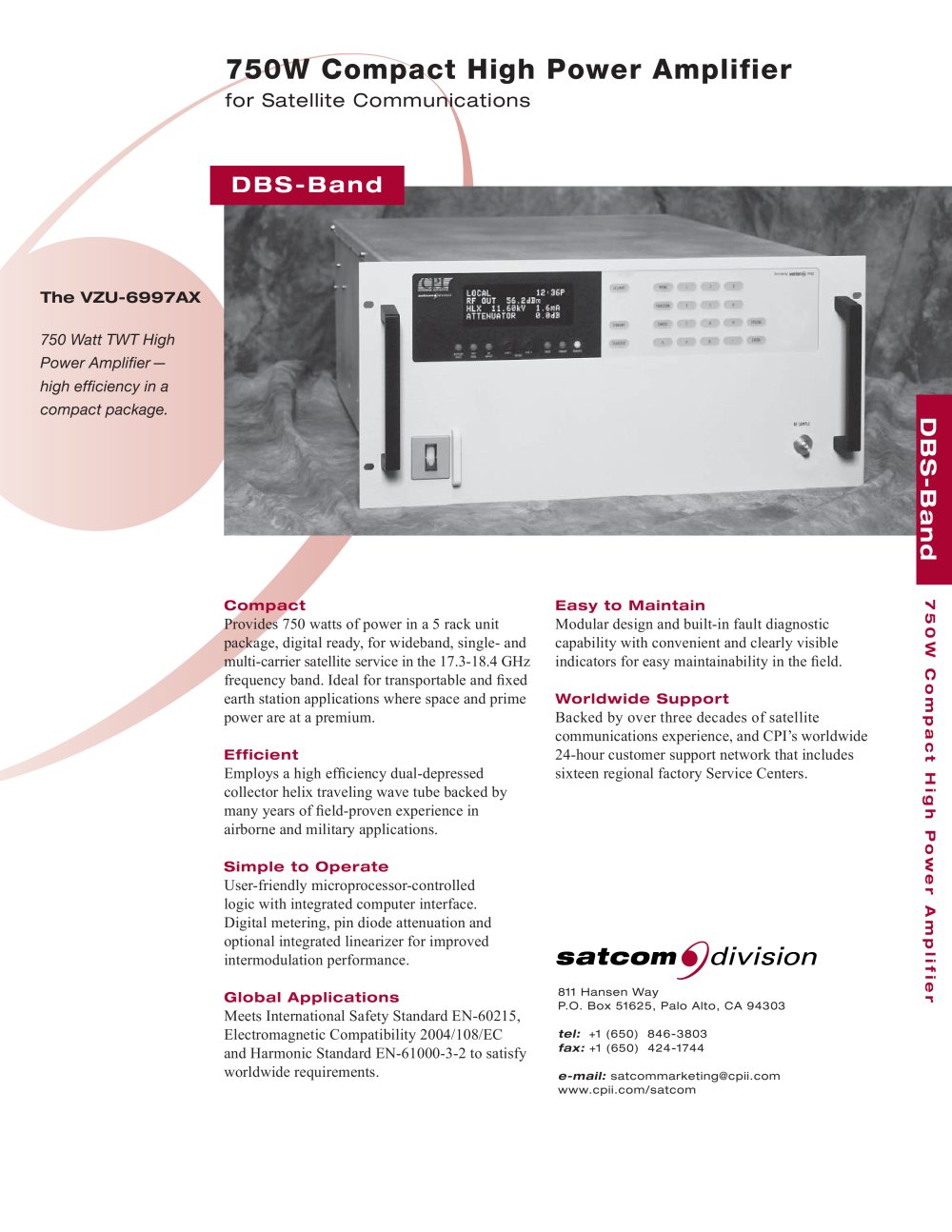

Overview: The VZU-6997AX is a 750 Watt Compact High Power Amplifier designed for satellite communications, specifically in the 17.3-18.4 GHz frequency band. It is suitable for both transportable and fixed earth station applications, offering high efficiency and compact design.
Specifications:
- Frequency Range: 17.3 to 18.4 GHz
- Output Power: 750 W minimum at TWT, 650 W minimum at Flange
- Bandwidth: 1100 MHz
- Gain: 70 dB typical at rated power, 75 dB typical at small signal
- VSWR: Input and Output VSWR of 1.30:1 max
- Noise Density: <-120 dBW/4 kHz below 16.5 GHz
- Power Consumption: 2.3 kVA typical, 2.6 kVA max
Features:
- Efficiency: Utilizes a high-efficiency dual-depressed collector helix traveling wave tube.
- Operation: User-friendly microprocessor-controlled logic with digital metering and optional integrated linearizer.
- Global Compliance: Meets international safety and electromagnetic compatibility standards.
- Maintenance: Modular design with built-in fault diagnostics for easy field maintenance.
- Support: Supported by CPI's worldwide 24-hour customer support network.
Environmental and Mechanical:
- Operating Temperature: -10° to +50°C
- Non-operating Temperature: -40° to +70°C
- Humidity: 95% non-condensing
- Altitude: Operates up to 10,000 ft, non-operating up to 50,000 ft
- Dimensions: 19 x 8.75 x 24 inches
- Weight: 95 lbs (43 kg) max
Options:
- Integral Linearizer
- Remote Control Panel
- Redundant and Power Combined Subsystems
Note: Specifications are subject to change without notice. Contact CPI for the latest information before system design.
