Indoor TWTAs TL22CI

Product catalog summary

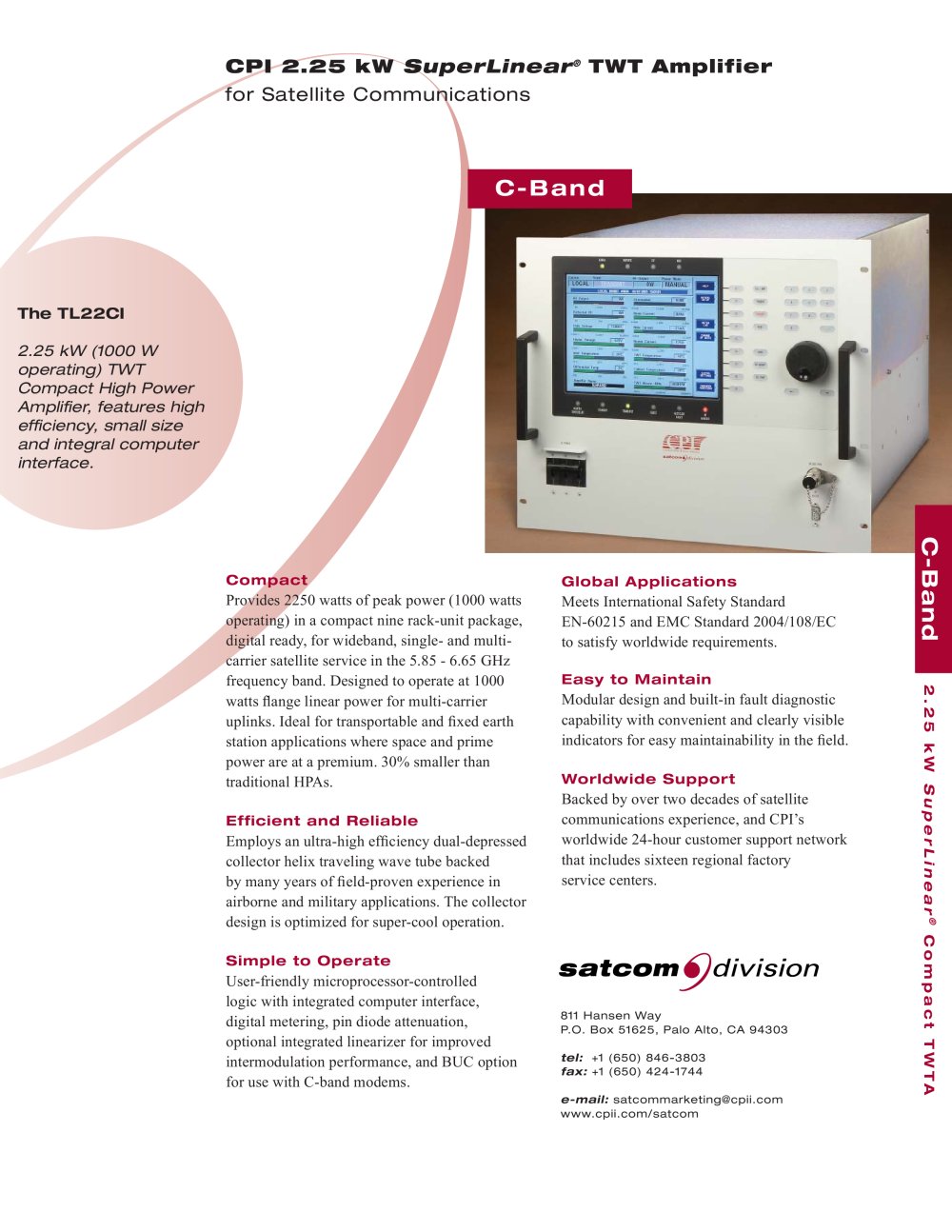

Overview: The CPI TL22CI 2.25 kW SuperLinear® TWT Amplifier is designed for satellite communications, offering high efficiency and compact size. It provides 2250 watts of peak power and is suitable for wideband, single- and multi-carrier satellite services in the 5.85 - 6.65 GHz frequency band.

Specifications:

Frequency: 5.85 - 6.65 GHz
Output Power: 2250 W peak, 1000 W operating
Gain: 75 dB min. at rated power, 78 dB min. at small signal
VSWR: Input/Output 1.25:1 max, Load 2.0:1 max
Power Consumption: 5.5 kW max, 4.5 kW typical at 1000 W output

Features:

Compact Design: 30% smaller than traditional HPAs, ideal for transportable and fixed earth station applications.
Efficiency and Reliability: Utilizes a dual-depressed collector helix traveling wave tube for high efficiency and reliability.
User-Friendly Operation: Microprocessor-controlled logic with integrated computer interface and optional linearizer for improved performance.
Global Compliance: Meets international safety and EMC standards.
Maintenance: Modular design with built-in fault diagnostics for easy maintenance.

Environmental and Mechanical:

Operating Temperature: -10° to +50°C
Humidity: 95% non-condensing
Altitude: Up to 10,000 ft operating, 50,000 ft non-operating
Dimensions: 19 x 15.75 x 24 inches
Weight: 155 lbs (70.5 kg)

Options and Companion Products:

Integral Linearizer
Remote Control Panel
Redundant and Power Combined Subsystems
Extended Frequency Options
External Receive Band Reject Filter
Integral L-Band Block Upconverter (BUC)

Note: Specifications may change without notice. For detailed information, refer to the CPI Technical Description.
