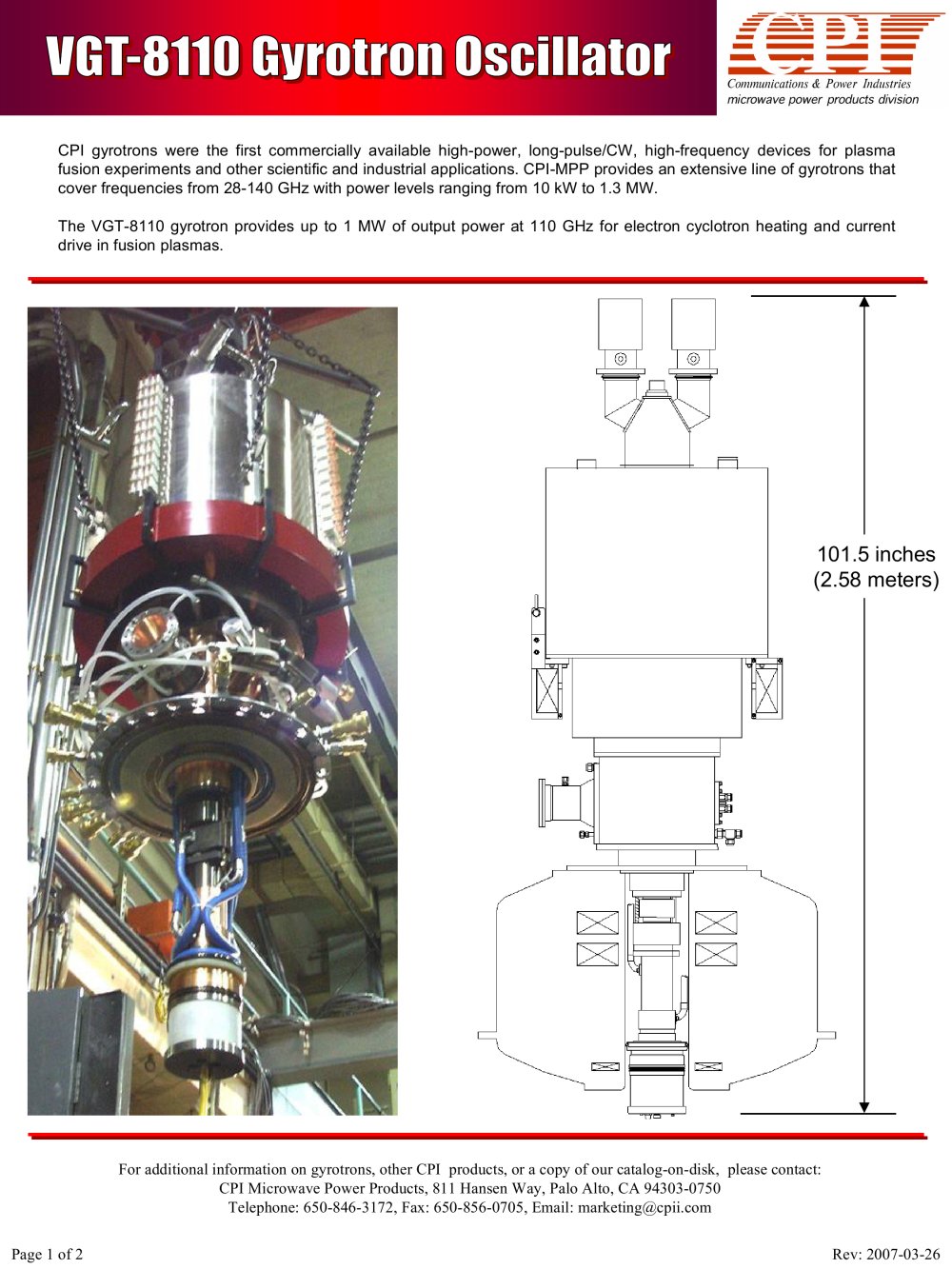

For additional information on gyrotrons, other CPI products, or a copy of our catalog-on-disk, please contact: CPI Microwave Power Products, 811 Hansen Way, Palo Alto, CA 94303-0750 Telephone: 650-846-3172, Fax: 650-856-0705, Email: marketing@cpii.com Page 1 of 2 Rev: 2007-03-26 CPI gyrotrons were the first commercially available high-power, long-pulse/CW, high-frequency devices for plasma fusion experiments and other scientific and industrial applications. CPI-MPP provides an extensive line of gyrotrons that cover frequencies from 28-140 GHz with power levels ranging from 10 kW to 1.3 MW. The VGT-8110 gyrotron provides up to 1 MW of output power at 110 GHz for electron cyclotron heating and current drive in fusion plasmas. 101.5 inches (2.58 meters)

Open the catalog to page 1

For additional information on gyrotrons, other CPI products, or a copy of our catalog-on-disk, please contact: CPI Microwave Power Products, 811 Hansen Way, Palo Alto, CA 94303-0750 Telephone: 650-846-3172, Fax: 650-856-0705, Email: marketing@cpii.com Page 2 of 2 Rev: 2007-03-26 Typical Operating Parameters Power Output 1000 kW Pulse Length 10 sec Beam Voltage 80 kV Beam Current 40 A Frequency 110±0.2 GHz Efficiency 31% Output Mode TEM00 Features • High Power, Long-Pulse • Gaussian Output Beam • CVD Diamond Output Window • Diode Electron Gun • Cryogen-Free Superconducting Magnet

Open the catalog to page 2
