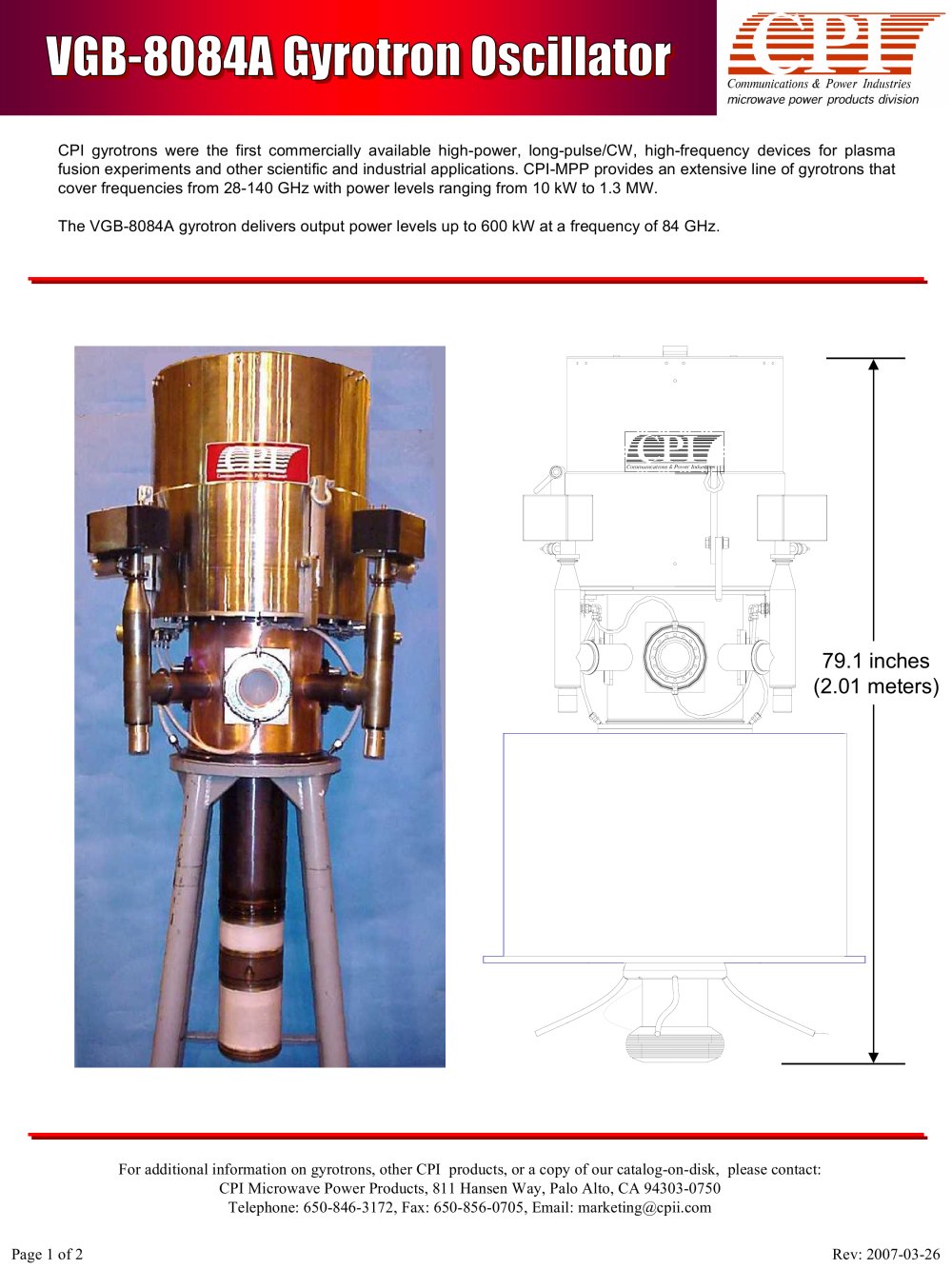

For additional information on gyrotrons, other CPI products, or a copy of our catalog-on-disk, please contact: CPI Microwave Power Products, 811 Hansen Way, Palo Alto, CA 94303-0750 Telephone: 650-846-3172, Fax: 650-856-0705, Email: marketing@cpii.com Page 1 of 2 Rev: 2007-03-26 CPI gyrotrons were the first commercially available high-power, long-pulse/CW, high-frequency devices for plasma fusion experiments and other scientific and industrial applications. CPI-MPP provides an extensive line of gyrotrons that cover frequencies from 28-140 GHz with power levels ranging from 10 kW to 1.3 MW. The VGB-8084A gyrotron delivers output power levels up to 600 kW at a frequency of 84 GHz. 79.1 inches (2.01 meters)

Open the catalog to page 1

For additional information on gyrotrons, other CPI products, or a copy of our catalog-on-disk, please contact: CPI Microwave Power Products, 811 Hansen Way, Palo Alto, CA 94303-0750 Telephone: 650-846-3172, Fax: 650-856-0705, Email: marketing@cpii.com Page 2 of 2 Rev: 2007-03-26 0 100 200 300 400 500 600 700 60 65 70 75 80 0 510 15 20 25 30 35 40 45 50 OUTPUT POWER EFFICIENCY Beam Voltage (kV) Power Out (kW) Efficiency (%) Cathode Voltage = 56 kV, Beam Current = 18 to 25 A (varies with beam voltage) Typical Operating Parameters Power Output 600 kW Pulse Length 2 sec Cathode Voltage -60 kV...
