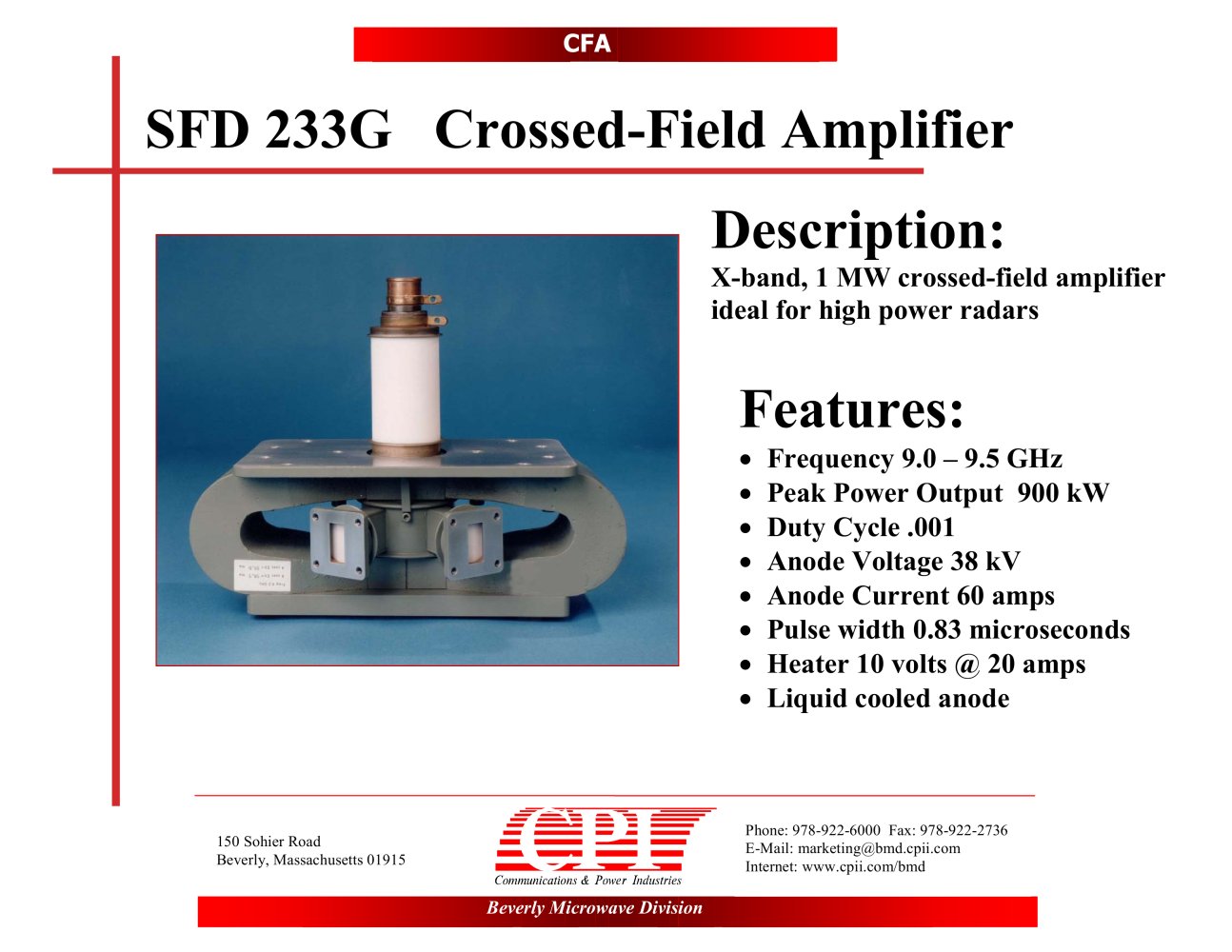

Crossed-Field Amplifiers SFD233G
1 / 1 PageView full catalog
Crossed-Field Amplifiers SFD233G
Product catalog summary
Specifications:
- Frequency: 9.0 – 9.5 GHz
- Peak Power Output: 900 kW
- Duty Cycle: 0.001
- Anode Voltage: 38 kV
- Anode Current: 60 amps
- Pulse Width: 0.83 microseconds
- Heater: 10 volts @ 20 amps
- Cooling: Liquid cooled anode
Product Description:
The SFD 233G is a Crossed-Field Amplifier (CFA) operating in the X-band, capable of delivering 1 MW power, making it ideal for high power radar applications.
Contact Information:
Beverly Microwave Division, 150 Sohier Road, Beverly, Massachusetts 01915
Phone: 978-922-6000 | Fax: 978-922-2736
Email: [email protected]
Website: www.cpii.com/bmd
