RB-10 Mechanical Road Blocker
RB-10 Mechanical Road Blocker
- Height of raised obstacle: 350mm
- Length of obstacle: 2040-2980mm (6.5-10ft)
- Motor: 3-phase asynchronous, 0.25kW, 950rpm
- Power supply: 120V, 50/60Hz
- Power consumption: 120W (stand-by), 420W (operation)
- Operational temperature: -25°C to +70°C
- Mechanical endurance: 1,106 cycles
- Net weight: Model 1 = 280kg, Model 2 = 340kg
- Operation speed: 3 seconds
- Steel housing, 2mm thick, with a security lock on the upper hood and lateral door.
- Electromechanical assembly includes a 120V motor, life-lubricated gearbox, and traction springs.
- Obstacle made of heavy-gauge goffered steel sheet.
- Surface treatment includes zinc phosphatisation, cataphoresis, and polyurethane finish paint.
- Control logic type D1 with a 3-push button box (open, close, stop).
- Includes changeover contactors, thermal overload protection, relay, main switch, transformer, and connection block.
- Emergency crank for manual operation in case of power failure.
- Frame fixed on the road surface with rawlbolts.
- Concrete slopes required for level compensation, with metal slopes available as options.
- Automatic closing logic type B3 and C3.
- Vehicle presence detectors, card readers, coin acceptors, and additional traffic lights available.
- Non-standard configurations and paint finishes available upon request.
- Concrete slopes before and after the obstacle.
- 120V power supply and connection wiring.
Catalog excerpts

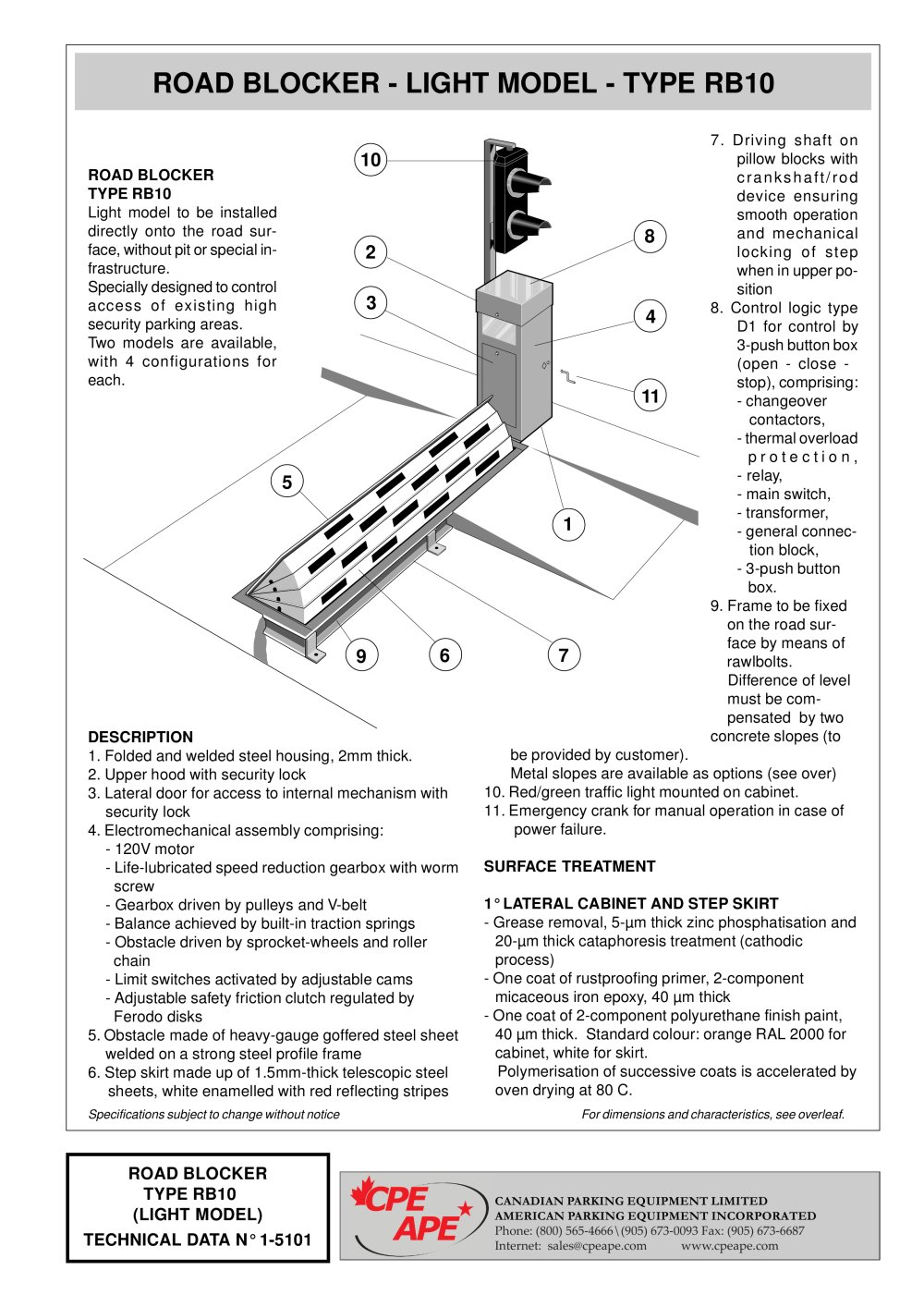

DESCRIPTION 1. Folded and welded steel housing, 2mm thick. 2. Upper hood with security lock 3. Lateral door for access to internal mechanism withsecurity lock4. Electromechanical assembly comprising:-120V motor - Life-lubricated speed reduction gearbox with worm screw - Gearbox driven by pulleys and V-belt - Balance achieved by built-in traction springs - Obstacle driven by sprocket-wheels and roller chain - Limit switches activated by adjustable cams - Adjustable safety friction clutch regulated by Ferodo disks5. Obstacle made of heavy-gauge goffered steel sheetwelded on a strong steel profile frame6. Step skirt made up of 1.5mm-thick telescopic steel sheets, white enamelled with red reflecting stripes - Grease removal, 5-m thick zinc phosphatisation and20-յm thick cataphoresis treatment (cathodic process)- One coat of rustproofing primer, 2-componentmicaceous iron epoxy, 40 m thick- One coat of 2-component polyurethane finish paint,40 յm thick. Standard colour: orange RAL 2000 for cabinet, white for skirt.Polymerisation of successive coats is accelerated byoven drying at 80 C. SURFACE TREATMENT 1 LATERAL CABINET AND STEP SKIRT > ROAD BLOCKERTYPE RB10 Light model to be installed directly onto the road sur- face, without pit or special in- frastructure. Specially designed to control access of existing high security parking areas. Two models are available, with 4 configurations for each. 7. Driving shaft onpillow blocks with crankshaft/rod device ensuring smooth operation and mechanical locking of step when in upper po- sition8. Control logic typeD1 for control by 3-push button box (open - close - stop), comprising: - changeover contactors, - thermal overloadprotection,- relay, - main switch, - transformer, - general connec- tion block, - 3-push buttonbox.9. Frame to be fixed on the road sur- face bymeans of rawlbolts. Difference of level must be com- pensated by two concrete slopes (tobe provided by customer). Metal slopes are available as options (see over)10. Red/green traffic light mounted on cabinet. 11. Emergency crank for manual operation in case of power failure. > Specifications subject to change without noticeFor dimensions and characteristics, see overleaf. CANADIAN PARKING EQUIPMENT LIMITED AMERICAN PARKING EQUIPMENT INCORPORATED
